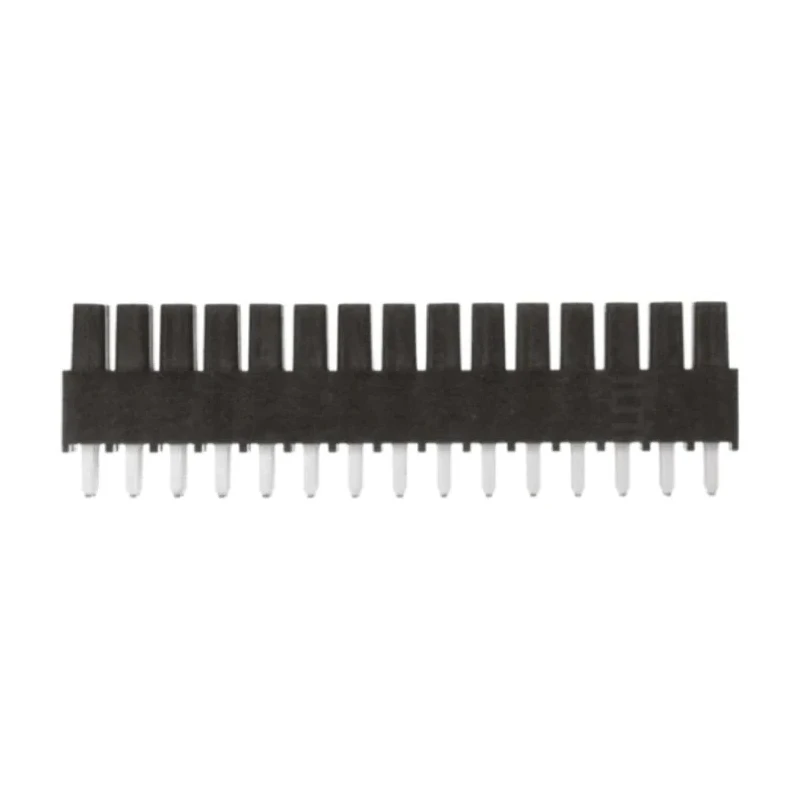

Samtec IPS1 Series 30-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket IPS1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 777V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | IPS1 |
| Mount Type | Through Hole |
| Contact Material | Bronze |
| Series | IPS1 |
| Termination Type | Through Hole |
| Sub Type | Board-to-Board |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Connector System | Board-to-Board |
Key Features
- Features 30 contacts arranged in 2 rows for reliable connections.
- 2.54 mm pitch ensures industry-standard spacing for PCB integration.
- Contact material is bronze with gold plating for excellent conductivity and corrosion resistance.
- Designed for through hole mounting with straight orientation for easy installation.
- Constructed with black glass LCP insulator for electrical isolation and durability.
- Temperature operating range from -55°C to +125°C supports harsh environments.
- Compact footprint with 11.05 mm mated height for space-saving designs.
- Compatible with Samtec IPT1 series terminals for versatile board-to-board connections.
Product Description
Samtec IPS1 Series 30-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket (Model: IPS1) is engineered for robust and reliable board-to-board electrical connections in industrial and electronic applications.
This socket features a double row of 30 contacts made from rugged phosphor bronze material, each plated with 0.25 μm gold ensuring excellent electrical conductivity and wear resistance. The shrouded design isolates each contact to prevent shorts and increase durability.
Designed with through hole mounting and a straight orientation, the connector is easy to solder onto printed circuit boards. Its 2.54 mm pitch meets standard PCB spacing requirements, while the mated height of 11.05 mm reduces overall assembly size.
The contact system supports a high current rating up to 12 A and a voltage rating up to 777 V, suitable for power electronics. It operates safely in extreme temperature conditions ranging from -55°C to +125°C, making it ideal for industrial, manufacturing, electronic, and power connector applications.
The socket is constructed with a black glass Liquid Crystal Polymer (LCP) insulator providing electrical isolation and mechanical strength. It mates seamlessly with the Samtec IPT1 series shrouded PCB power terminals, offering a complete board-to-board solution.
Features 30 rugged gold-plated phosphor bronze contacts. 2 row, 2.54 mm pitch through hole mount configuration. High current and voltage ratings of 12 A and 777 V respectively. Wide operational temperature range from -55°C to +125°C.
Black glass LCP insulating housing for durability. Straight orientation for standard PCB assembly. Compact mated height of 11.05 mm for space constrained designs. Ideal for electronic, industrial, manufacturing, and power connection applications.
Compatible with Samtec IPT1 series terminals.
This connector is suitable for electronic components manufacturing, industrial power equipment, and commercial PCB interconnect solutions. Samtec’s IPS1 series sockets provide reliability and longevity in demanding environments.
Explore additional PCB Socket and connector categories on EnvMart for complementary components suitable for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IPS1 series PCB socket has a voltage rating of 777 V, making it suitable for power electronics applications.
This model features 30 contacts arranged in 2 rows, providing reliable connections for board-to-board applications.
The current rating for this PCB socket is 12 A, allowing it to handle substantial electrical loads.
The contacts in this connector are arranged with a pitch of 2.54 mm, which is an industry-standard spacing for PCB integration.
The contacts are made from bronze and plated with gold, while the insulator is constructed from black glass Liquid Crystal Polymer (LCP) for electrical isolation and durability.
This model operates safely in a temperature range from -55°C to +125°C, suitable for harsh environments.
The IPS1 series socket is designed for through hole mounting with a straight orientation, facilitating easy installation onto printed circuit boards.
The mated height of this PCB socket is 11.05 mm, which helps in space-saving designs.
This socket is compatible with Samtec IPT1 series terminals, allowing for versatile board-to-board connections.
This PCB socket is suitable for electronic components manufacturing, industrial power equipment, and commercial PCB interconnect solutions.
The IPS1 series uses a board-to-board connector system, designed for robust electrical connections between PCBs.
The IPS1 series PCB socket is manufactured in India.
