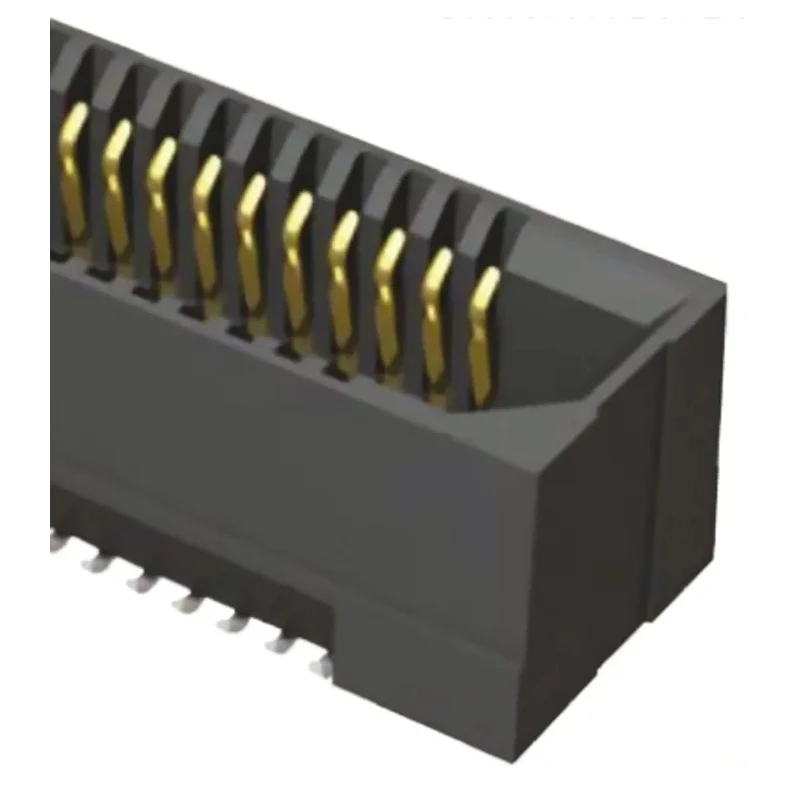

Samtec ERF8 Series Straight Surface PCB Socket, 140-Contact, 2 Row, 0.8 mm Pitch, 200 V, 1.4 A Current ERF8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 1.4A |
| Model | ERF8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 140 |
| Connector System | Board-to-Board |
| Stacking Height | 18mm |
| Row Pitch | 4.5mm |
| Insulator Material | Black LCP |
Key Features
- The connector supports a current rating of 1.4 A and operating voltage of 200 V.
- It features a solder termination type and straight orientation for reliable connections.
- Constructed with Liquid Crystal Polymer housing and beryllium copper alloy contacts plated in gold for durability.
- Operating temperature ranges from -55°C to 125°C ensuring performance in harsh environments.
- The stacking height is 18 mm with a row pitch of 4.5 mm for compact PCB layout integration.
- The black LCP insulator material enhances electrical insulation and mechanical stability.
- This socket mates with ERM8 Series headers for versatile board-to-board interconnect applications.
Product Description
Samtec ERF8 Series Straight Surface PCB Socket ERF8 is a robust, high-speed PCB socket designed for board-to-board applications. Featuring 140 contacts arranged in 2 rows at a 0.8 mm pitch, this socket provides reliable surface mounting and excellent electrical performance with a current rating of 1.4 A and voltage rating of 200 V.
The socket is constructed with a Liquid Crystal Polymer (LCP) housing that ensures durability and high insulation properties. Contacts are made of beryllium copper alloy and are plated with 0.76 μm gold for corrosion resistance and enhanced conductivity. The gold plating on the Edge Rate contacts along with tin on the PCB tails ensures long-lasting solder joint reliability.
Designed for operating temperature ranges from -55°C to 125°C, the Samtec ERF8 socket is suitable for demanding industrial, telecommunications, computing, and measurement equipment environments. The stacking height is 18 mm, which integrates well into space-constrained PCB designs.
This connector mates seamlessly with Samtec ERM8 Series headers, providing a comprehensive solution for board-to-board connections in high-speed data, signal, and power transmission systems. Its straight orientation and solder termination type enable easy assembly and maintenance.
140 contacts in 2 rows with 0.8 mm pitch ensure high-density connection. Current rating of 1.4 A suitable for moderate power applications. Robust Liquid Crystal Polymer housing with black insulation. Gold-plated beryllium copper alloy contacts for reliable conductivity.
Wide operating temperature range from -55°C to 125°C for industrial use. 18 mm stacking height and 4.5 mm row pitch for compact PCB integration. Compatible with ERM8 Series headers providing flexible interconnect options.
This series is ideal for applications in electronic manufacturing, industrial instrumentation, telecommunications, and computer hardware. The Samtec ERF8 series supports high data rates and power requirements, making it a versatile choice for modern PCB designs requiring reliable board-to-board interconnections.
Explore more Samtec connectors and PCB Sockets on EnvMart to find components that meet your industrial and commercial electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 1.4 A, making it suitable for moderate power applications.
It supports an operating voltage of 200 V, ensuring reliable performance in various applications.
The socket features a Liquid Crystal Polymer (LCP) housing and beryllium copper alloy contacts plated in gold for enhanced conductivity and durability.
It operates effectively in a temperature range from -55°C to 125°C, suitable for harsh environments.
This model has 140 contacts arranged in 2 rows, providing a high-density connection.
The pitch size is 0.8 mm, allowing for compact PCB layout integration.
The stacking height is 18 mm, which is beneficial for space-constrained designs.
It utilizes a solder termination type, enabling secure connections during assembly.
This socket mates with ERM8 Series headers, providing versatile board-to-board interconnect options.
The row pitch is 4.5 mm, facilitating efficient layout design on PCBs.
It is ideal for applications in electronic manufacturing, telecommunications, computing, and industrial instrumentation.
The insulator material is black Liquid Crystal Polymer (LCP), which enhances electrical insulation and mechanical stability.
