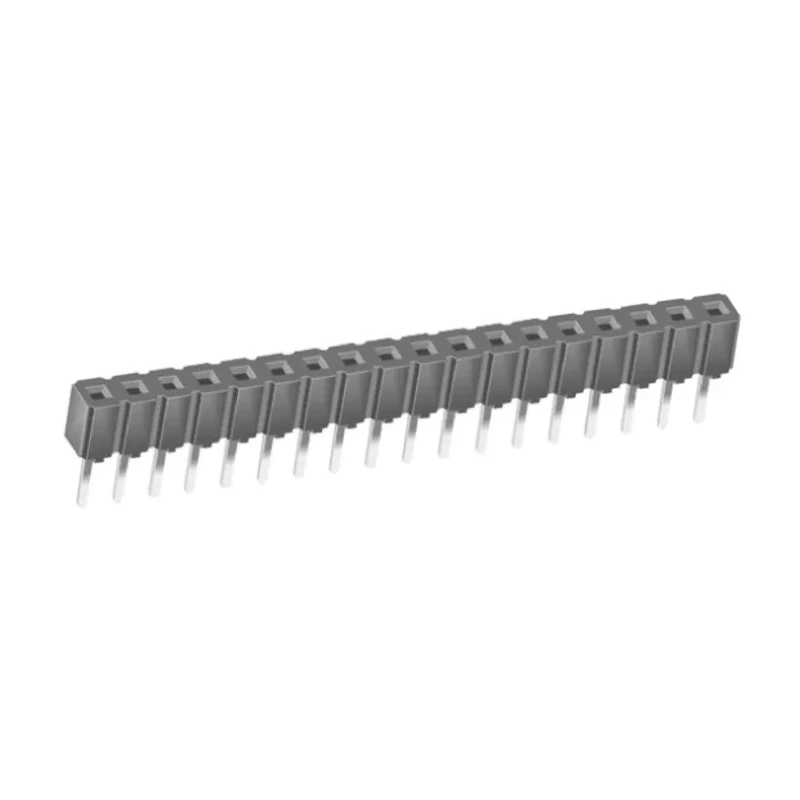

Samtec CES Series Straight Through Hole PCB Socket 18-Contact 1 Row 2.54 mm Pitch Through Hole CES-118-01-T-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 333V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-118-01-T-S |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 18 |
| Connector System | Board-to-Board |
| TLW series low profile square post headers | see stock number 765-6168 typically |
| TSM series square post headers | see stock number 765-6613 typically |
| TSW series square post headers | see stock number 767-1044 typically |
Key Features
- This PCB socket supports a current rating of 12A for reliable electrical performance.
- The housing is made of durable black glass filled polyester ensuring long-term stability.
- Contacts are made of bronze with matte tin plating for excellent conductivity and corrosion resistance.
- It features a low profile design with a 3.25 mm solder tail for compact board integration.
- Suitable for board-to-board connections with a voltage rating of 333V.
- Operating temperature ranges from -55°C to 105°C, supporting harsh environments.
- Termination and mount type is through hole, ensuring sturdy mechanical fixation.
- Compatible with TLW, TSM and TSW series square post headers for versatile use.
Product Description
Samtec CES-118-01-T-S is a high-quality PCB socket from the CES series, designed with 18 contacts in a single row at a 2.54 mm pitch suitable for straight through hole mounting.
The socket features a black glass filled polyester housing that provides mechanical strength and heat resistance. The bronze contacts plated with matte tin ensure reliable electrical conduction and durability.
This product supports a current capacity of 12A and a voltage rating of 333V, making it ideal for demanding electronic applications.
The low profile design with a 3.25 mm solder tail facilitates compact PCB layouts and easy soldering. It also operates effectively within a temperature range of -55°C to 105°C, tolerating both cold and hot operating conditions.
The socket mount type is through hole with a straight orientation, supporting robust mechanical fixation on PCBs. It is designed for board-to-board connectivity and mates with compatible TLW, TSM, and TSW series square post headers.
This RoHS compliant PCB socket finds extensive use in electronic components manufacturing, industrial automation systems, power connectors assemblies, and other high-reliability environments.
This socket has 18 contacts arranged in 1 row with 2.54 mm pitch. Housing material is black glass filled polyester for durability. Contact material is bronze with matte tin plating for reliability. Supports operating voltages up to 333V and current up to 12A.
Operates between -55°C and 105°C for wide temperature tolerance. Through hole mount and termination type for sturdy PCB connection. Compatible with related Samtec square post headers for versatile use. RoHS compliant design suitable for industrial and electronic applications.
Samtec offers a wide range of reliable PCB Sockets and connectors suited for electronic manufacturing and power connector needs. Browse the extensive Samtec product catalog at EnvMart for more high-quality PCB connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 12A for reliable electrical performance.
The voltage rating for this socket is 333V, making it suitable for demanding electronic applications.
The housing is made of black glass filled polyester, while the contacts are made of bronze with matte tin plating for excellent conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 105°C, tolerating both cold and hot conditions.
This model features 18 contacts arranged in a single row.
The pitch of the contacts is 2.54 mm, which is standard for many PCB applications.
The CES-118-01-T-S uses a through hole mount type, ensuring sturdy mechanical fixation on PCBs.
It is compatible with TLW, TSM, and TSW series square post headers for versatile use.
This socket features a straight orientation for easy integration into PCB designs.
Yes, this PCB socket is RoHS compliant, suitable for industrial and electronic applications.
The termination type for this PCB socket is through hole, which provides robust connectivity.
The country of origin for this PCB socket is India.
