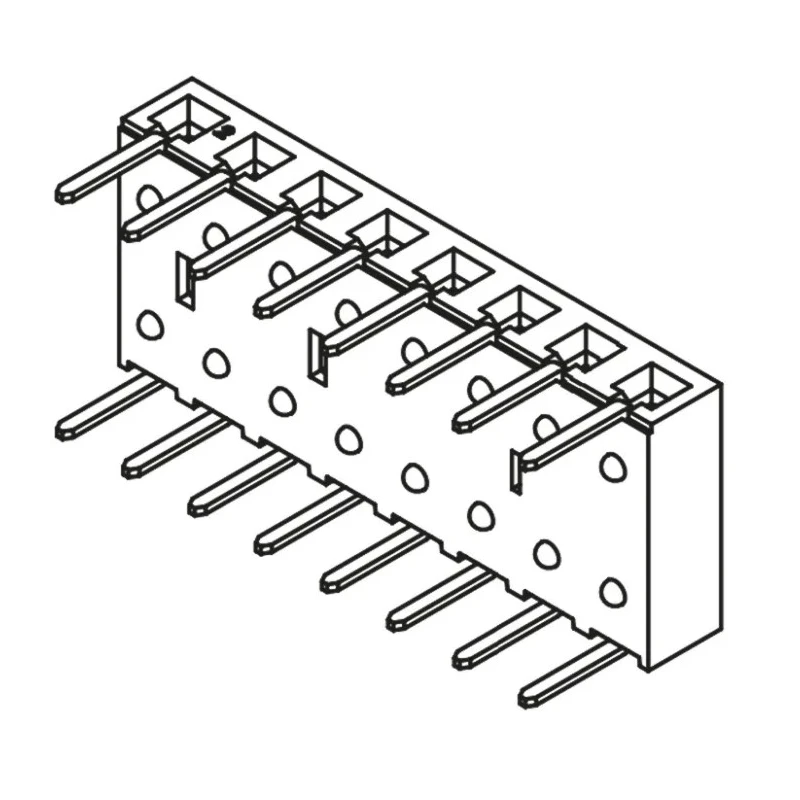

Samtec BCS Series Right Angle Through Hole PCB Socket, 8-Contact, 1 Row, 2.54 mm Pitch, 450V, 5.9A, Liquid BCS-108-L-S-HE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 5.9A |
| Model | BCS-108-L-S-HE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- Constructed with a black liquid crystal polymer housing for high durability.
- Contacts made of phosphor bronze with 0.25μm gold plating for excellent conductivity.
- Supports a voltage rating of 450V and a current capacity of 5.9A.
- Operates reliably within a temperature range of -55°C to 125°C.
- Designed with through hole termination and right angle orientation for versatile mounting.
- Compatible with matching Samtec single row, horizontal and top entry connectors.
- Ideal for industrial, electronic, and power connector applications requiring board-to-board interfacing.
- Complies with China RoHS, EU REACH, and EU RoHS standards.
Product Description
Samtec BCS-108-L-S-HE is a high-quality right angle through hole PCB socket designed for board-to-board connections, featuring 8 contacts arranged in a single row with a 2.54 mm pitch. It provides a robust and reliable connection solution for various electronic applications.
The socket body is fabricated from black liquid crystal polymer, offering excellent mechanical strength and thermal resistance. Contacts are phosphor bronze with a 0.25μm gold plating on the mating surface to ensure low contact resistance and corrosion protection. The tail is finished with matte tin plating suitable for through-hole soldering.
This socket supports a continuous current of 5.9A and a voltage rating up to 450V, making it suitable for medium power board-to-board connections. Its operating temperature range from -55°C to 125°C allows usage in harsh industrial and electronic environments.
The right angle orientation and through hole mount type enable flexible PCB design layouts. The BCS series includes versions with horizontal (HE) and top entry (TE) body orientations to match different application requirements.
Black liquid crystal polymer housing provides high durability and heat resistance. Phosphor bronze contacts with 0.25μm gold plating ensure excellent conductivity and corrosion resistance. Supports 450V voltage and 5.9A current for robust electrical performance.
Wide operating temperature range from -55°C to 125°C accommodates diverse environments. Right angle, through hole mount design for versatile PCB configuration. Compliant with China RoHS, EU REACH, and EU RoHS regulatory standards.
Compatible with Samtec’s TSW, TSM, DW, and EW series headers and board stackers for flexible assembly options.
This connector socket is widely used in industrial equipment, electronic control systems, power electronics, and other board-to-board connector applications requiring durability and precision. Its compliance with environmental standards ensures suitability for modern electronic manufacturing.
Explore more PCB connectors and sockets to complement your industrial and electronic projects with reliable Samtec components at EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 450V and a continuous current capacity of 5.9A.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made from black liquid crystal polymer, while the contacts are made of phosphor bronze with a 0.25μm gold plating for excellent conductivity.
It features a through hole termination type, suitable for through-hole soldering.
This unit has 8 contacts arranged in a single row.
The pitch size for this socket is 2.54 mm (0.1 in).
Yes, it complies with China RoHS, EU REACH, and EU RoHS standards.
This model features a right angle orientation for versatile mounting options.
It is compatible with matching Samtec single row, horizontal and top entry connectors, as well as TSW, TSM, DW, and EW series headers and board stackers.
The country of origin for this model is India.
It is ideal for industrial, electronic, and power connector applications requiring board-to-board interfacing.
This socket is designed for through hole mounting, allowing flexible PCB design layouts, but specific dimensions are not provided in the data.
