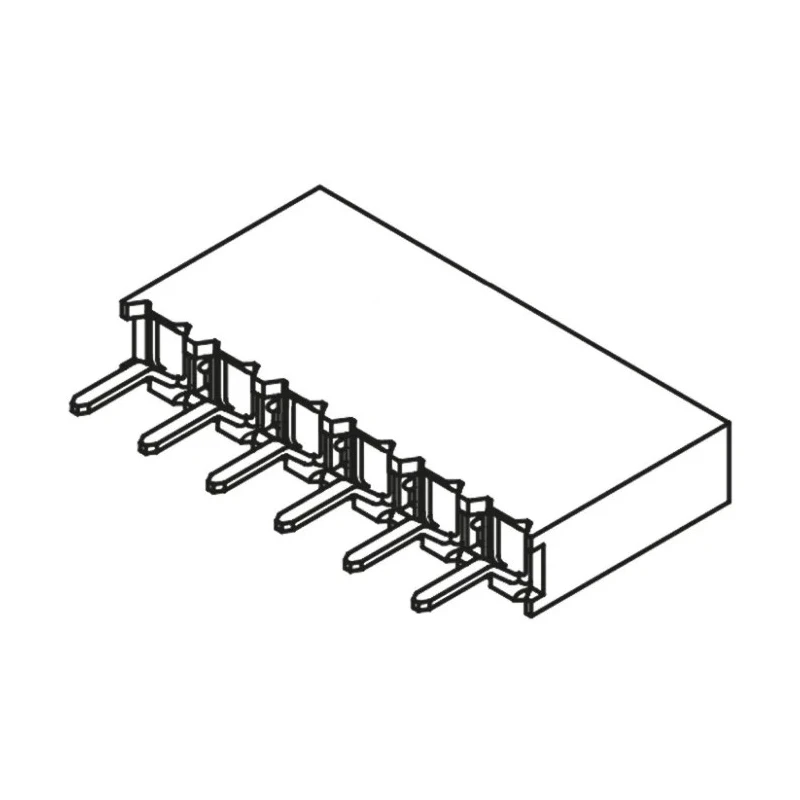

Samtec Board-to-Board 6-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket, Liquid Crystal Polymer BCS-106-L-S-TE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-106-L-S-TE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | EU RoHS, CHINA RoHS, EU REACH |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- The socket uses a straight through hole mount and has a liquid crystal polymer housing for stability.
- Contacts are made from bronze with 0.25 μm gold plating for corrosion resistance.
- It supports a current rating of 4.6 A and voltage up to 475 V, suitable for robust electronic connections.
- The connector operates in temperatures ranging from -55°C to 125°C, ensuring reliability in demanding environments.
- Complies with EU RoHS, CHINA RoHS, and EU REACH regulations, assuring environmental and safety standards.
- Designed for board-to-board connection systems with a 0.1 inch row pitch and solder termination.
- Part of the BCS series offering standard 2.54 mm box connector socket strips with top entry orientation.
Product Description
Samtec BCS-106-L-S-TE straight through hole PCB socket is a robust, high-quality connector designed for board-to-board applications requiring precise alignment and reliable connections. Featuring 6 contacts arranged in a single row with a 2.54 mm pitch, this socket provides consistent electrical performance, making it ideal for various industrial and electronic manufacturing uses.
The housing is constructed from a durable black liquid crystal polymer, offering excellent mechanical strength and material stability under extended thermal cycling. Contact material consists of phosphor bronze plated with 0.25 μm of gold on the contact surfaces and matte tin on the tail, ensuring oxidation resistance and maintaining conductivity over time.
This socket supports a continuous current of 4.6 A and a voltage rating of 475 V, suitable for a broad spectrum of power and signal electronic circuits. The device is rated for operation in extreme temperatures ranging from -55°C to +125°C, making it suitable for harsh industrial environments, laboratory equipment, automotive electronics, and communication systems.
Designed for through-hole mounting with a straight orientation and solder termination, this connector offers ease of assembly on standard PCBs. It belongs to Samtec's BCS series of standard 2.54 mm pitch box connector socket strips available in both top and horizontal entry options, providing flexibility in design integration.
Samtec BCS-106-L-S-TE sockets are fully compliant with environmental and safety standards, including EU RoHS, CHINA RoHS, and EU REACH certifications, ensuring usage in global markets.
6 contacts in single row with 2.54 mm pitch. Liquid crystal polymer housing for durability. Phosphor bronze contacts with 0.25 μm gold plating. 4.6 A current rating and 475 V voltage rating. Operating temperature range: -55°C to 125°C.
Solder termination through-hole mount with straight orientation. Meets EU RoHS, CHINA RoHS, and EU REACH regulations.
This PCB socket is ideally suited for electronics manufacturing, industrial automation, communication devices, and other applications that demand reliable board-to-board connectors.
Explore additional Samtec connectivity solutions and electronic components on EnvMart for comprehensive assembly and design needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 4.6 A and a voltage rating of 475 V, making it suitable for various power and signal electronic circuits.
The housing is made from liquid crystal polymer, providing excellent mechanical strength and stability under thermal cycling.
This model features a 2.54 mm pitch with 6 contacts arranged in a single row.
It operates within a temperature range of -55°C to +125°C, suitable for harsh environments.
The BCS-106-L-S-TE uses solder termination for through-hole mounting, facilitating easy assembly on standard PCBs.
It complies with EU RoHS, CHINA RoHS, and EU REACH regulations, ensuring it meets environmental and safety standards.
This model is designed for board-to-board connection systems, providing reliable electrical performance.
The contacts are made from phosphor bronze and are plated with 0.25 μm of gold for corrosion resistance and conductivity.
The socket features a straight orientation, allowing for straightforward installation on PCBs.
It is suitable for various industrial and electronic manufacturing applications, including automotive electronics and communication systems.
The country of origin for this product is India.
