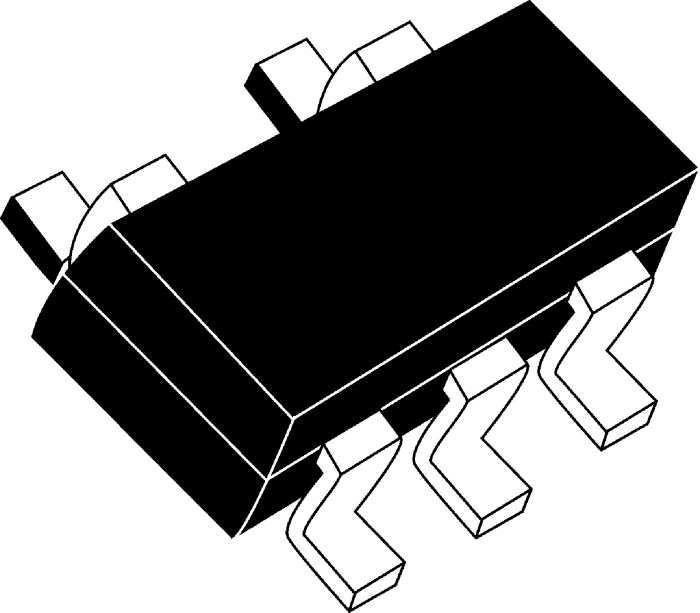

DiodesZetex 1 2-Input OR Logic Gate, Surface Mount, 5-Pin SOT-25 Package 74LVC1G32W5-7

DiodesZetex 74LVC1G32W5-7 is a single 2-input OR logic gate integrated circuit housed in a 5-Pin SOT-25 surface mount package. This device operates at a low voltage range from 1.65 V to 5.5 V, adhering to low-voltage CMOS logic (LVC) family standards. It is designed for applications that require efficient logic operations with minimal propagation delay and supports compatibility with TTL and LVTTL input levels and LVCMOS output levels.

The logic gate provides a maximum propagation delay of 5.5 ns under the specified load capacitance, which ensures fast switching performance suitable for industrial, electronic, and embedded system applications. Operating temperatures range from -40°C to 125°C, making the device robust enough for demanding environmental conditions.

With a push-pull output type, the device can source or sink currents up to 32 mA, enabling direct drive of other logic inputs or loads. The compact 5-pin SOT-25 package facilitates space-saving printed circuit board designs commonly used in consumer electronics, industrial controls, and automation equipment.

This single-element gate logic IC utilizes CMOS input configuration to provide low power consumption and high noise immunity. Its typical applications include digital logic circuits, signal processing, and control systems in commercial, industrial, and laboratory setups.

The device is surface mountable, simplifying automated assembly processes. TTL-compatible input ensures integration within mixed-logic systems. Robust operating temperature tolerance supports a wide range of industrial and environmental conditions.

Compact packaging allows effective utilization of board area in complex designs. Manufactured to meet quality standards ensuring high reliability and performance consistency.

As part of the 74LVC1G family by Diodes Inc., this Logic Gate serves well in various industrial automation, electronic design, and embedded systems projects. Explore more semiconductor components and logic IC solutions to complement your designs at EnvMart.
