Taiwan Semiconductor 15 V 1.3 W 5% Tolerance Through Hole Zener Diode, Single 2-Pin DO-41 BZX85C15 R0G

Free Delivery in India | Lowest Global Shipping Charges

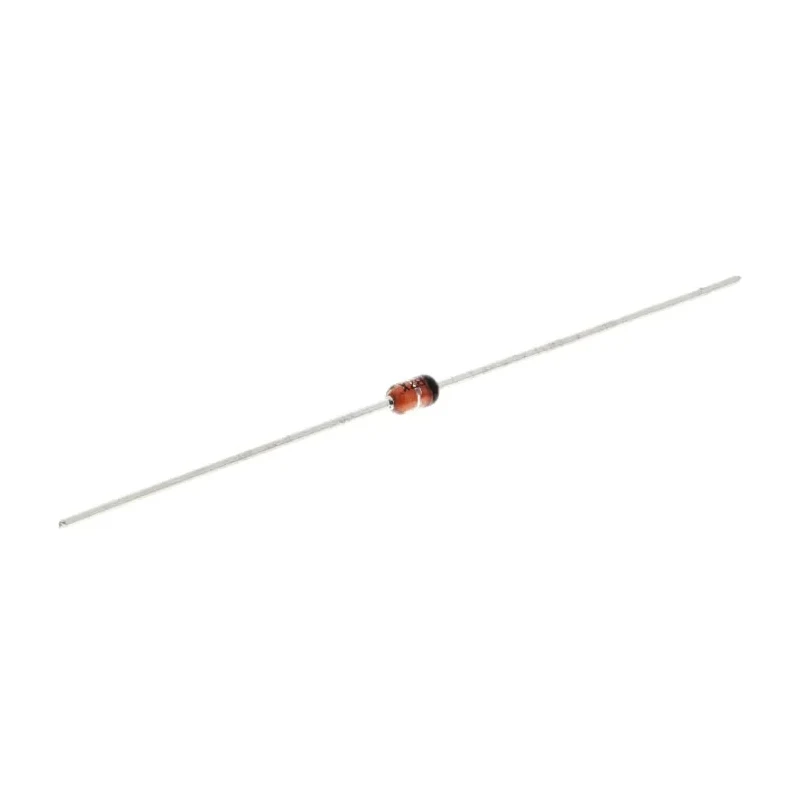

Taiwan Semiconductor 15 V 1.3 W 5% Tolerance Through Hole Zener Diode, Single 2-Pin DO-41 BZX85C15 R0G

Name: Taiwan Semiconductor 15 V 1.3 W 5% Tolerance Through Hole Zener Diode, Single 2-Pin DO-41 BZX85C15 R0G
Brand: Taiwan Semiconductor
SKU: 363196
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.28mm
Length	5.08mm
Model	BZX85C15 R0G
Mount Type	Through Hole
Series	BZX55C1
Maximum Operating Temperature	200°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	15mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	15Ω

Key Features

This diode offers a nominal zener voltage of 15 V with a tolerance of 5%.
It supports a maximum power dissipation of 1.3 W ensuring reliable voltage regulation.
The device features a low maximum reverse leakage current of 500 nA for efficient operation.
The typical voltage temperature coefficient is 0.07% per degree Celsius, maintaining stability under temperature changes.
Rated for operation in temperatures ranging from -65°C to 200°C, suitable for harsh environments.
Equipped with a hermetically sealed glass package in a DO-41 form factor for durability.
Designed as a two-pin single element diode for easy through-hole mounting and integration.

Product Description

Taiwan Semiconductor BZX85C15 R0G is a high-quality 15 V zener diode that features a maximum power dissipation of 1.3 W. Packaged in a DO-41 through hole format, it is ideally suited for voltage regulation applications across various industrial, laboratory, and electronic circuit environments.

With a nominal voltage of 15 V and voltage tolerance of ±5%, this diode provides precise voltage stabilization in sensitive electronic circuits. It supports a test current of 15 mA and maintains a maximum zener impedance of 15 Ω, ensuring reliable and consistent performance.

The diode's operating temperature range from -65°C to 200°C makes it suitable for harsh operating conditions found in industrial and automotive electronics. Its low maximum reverse leakage current of 500 nA improves circuit efficiency and longevity.

The jet hermetically sealed glass construction ensures resistance to environmental contaminants and mechanical damage. The compact 5.08 mm length and 2.28 mm height package size facilitates easy mounting and integration in printed circuit boards with through-hole technology.

This zener diode provides stable voltage regulation for industrial and electronic power supply designs. Ideal for use in electronic components, power and connectors, and discrete semiconductor applications. Robust construction with hermetically sealed glass package increases durability and reliability.

Wide operating temperature range makes it suitable for automotive and industrial use. Compact DO-41 package offers easy installation and automated assembly compatibility.

Suitable for electronic engineers, hobbyists, and manufacturers seeking reliable voltage regulation in various electronic devices and circuits. Explore the Semiconductor category for more precision components on EnvMart.
