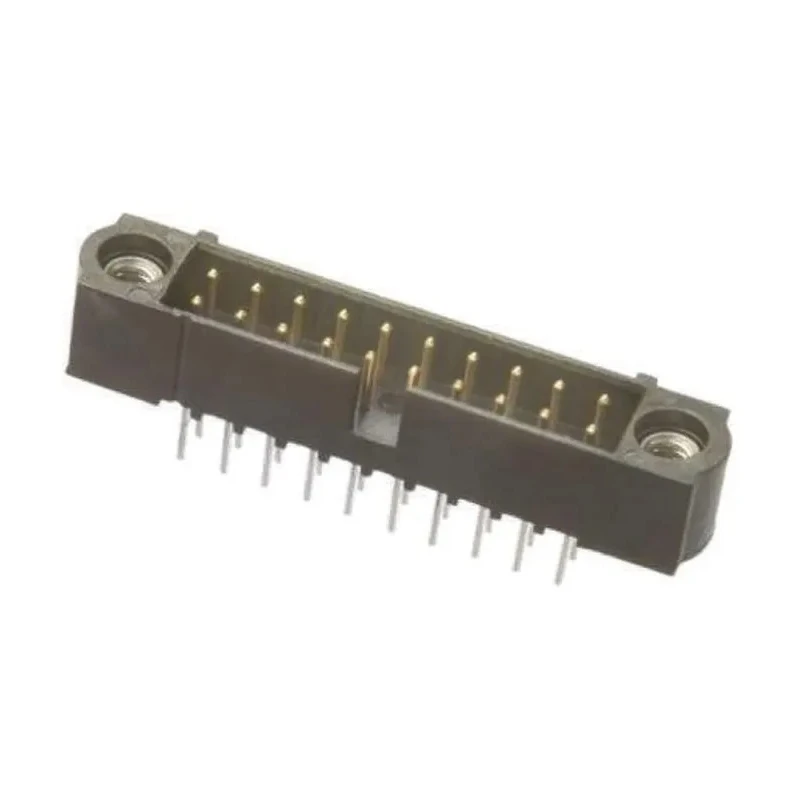

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded M80-5001242
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M80-5001242 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate J-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- The header is designed for a current rating of 3A and a voltage rating of 120V.
- It has a straight orientation with male contacts made of phosphor bronze and gold plating for enhanced conductivity.
- The housing is made of durable polyphenylene sulphide ensuring reliability in harsh environments.
- Operates reliably between temperatures of -55°C and 125°C.
- Tail pin length is 3 mm for secure solder terminations.
- The connector system supports board-to-board and wire-to-board connections.
- Shrouded design provides polarization and protection from mis-mating.
- Ideal for industrial and electronics applications requiring high vibration and shock resistance.
Product Description
HARWIN M80-5001242 PCB Header from the Datamate J-Tek Series is a high reliability, straight through-hole connector designed for robust electrical connections on PCBs. Featuring 12 male contacts arranged in 2 rows with a pitch of 2 mm, this shrouded header is ideal for applications requiring durable, vibration-resistant connectors.
The connector has a maximum current rating of 3A and voltage rating of 120V, with contact materials made from phosphor bronze and plated with gold to ensure excellent conductivity and corrosion resistance. The housing is crafted from polyphenylene sulphide, providing exceptional mechanical strength and thermal stability in operating temperatures ranging from -55°C up to 125°C.
This Datamate J-Tek series header includes a tail pin length of 3 mm designed for reliable solder termination. Its board-to-board and wire-to-board connector system supports secure and stable connections in industrial, laboratory, HVAC, manufacturing, and commercial electronic devices.
The shrouded construction provides polarization to prevent incorrect mating and protects contacts from environmental damage. The header supports a 12-contact configuration essential for multi-signal or power applications.
2 mm pitch spacing complies with industry standards for compact PCB layouts. Robust gold-plated phosphor bronze contacts ensure durability over numerous mating cycles. Polyphenylene sulphide housing resists chemical and thermal stress.
Wide operating temperature range suits harsh or variable environments. Through-hole mounting optimizes mechanical stability on PCBs. Shrouded and polarized design minimizes assembly errors and improves safety. Designed to meet MIL C 55302 and BS9525-F0033 standards for high-reliability performance.
This HARWIN Datamate J-Tek Series PCB Header is a premium choice for designers and engineers looking for dependable connector solutions in demanding electrical and electronic equipment. Visit EnvMart to explore similar high-quality connectors from leading brands.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a maximum current rating of 3A and a voltage rating of 120V.
The contacts are made of phosphor bronze and are gold-plated for enhanced conductivity, while the housing is constructed from polyphenylene sulphide.
It operates reliably within a temperature range of -55°C to 125°C.
This model features 12 male contacts arranged in 2 rows.
The pitch size of this header is 2 mm, which complies with industry standards for compact PCB layouts.
It uses solder termination for secure connections.
The tail pin length is 3 mm, designed for reliable solder terminations.
It supports both board-to-board and wire-to-board connections.
The orientation of this header is straight, allowing for easy installation on PCBs.
This model is shrouded, providing polarization and protection from mis-mating.
It is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electronic applications requiring robust connections.
The country of origin for this PCB header is the United Kingdom.
