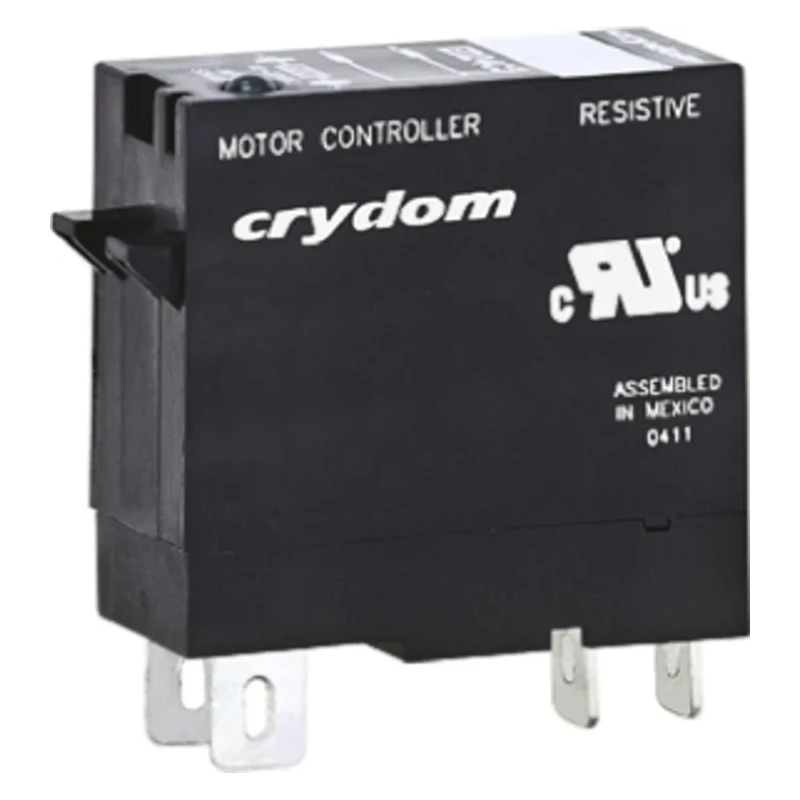

Crydom ED Series Solid State Relay, 5 A Load Current, 80 V dc Load, 15 V dc Control, DIN Rail Mount ED10D5
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 37.4mm |
| Length | 29mm |
| Model | ED10D5 |
| Width | 12.7mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | ED |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | DC Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | CE, RoHS, IEC Rated, cUL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-1321Brand: CrydomManufacturers Part No.: ED10D5 |
| Maximum Load Voltage | 80V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 5V dc |
| Maximum Control Voltage | 15V dc |
| Off State Leakage Current | 20μA |
Key Features
- This solid state relay supports DC switching with a single-pole single-throw (SPST) contact configuration.
- It operates with a minimum load voltage of 1 V dc and control voltage range of 5 V dc to 15 V dc.
- The relay is designed to withstand operating temperatures from -30°C to 80°C.
- It has a compact size with dimensions 37.4mm height, 29mm length, and 12.7mm width.
- Equipped with MOSFET output type and low off-state leakage current of 20μA.
- Suitable for industrial automation, electrical control, and signal conditioning applications.
- Complies with CE, RoHS, IEC standards and is cUL recognized, ensuring safety and reliability.
Product Description
Crydom ED10D5 solid state relay is a high-quality DC switching relay rated for a maximum load current of 5 amps and load voltage up to 80 V dc. It features a DIN rail mount design facilitating easy installation in industrial and commercial electrical control systems. The relay is controlled by a DC voltage ranging from 5 V to 15 V dc, providing reliable and efficient switching performance.
This model employs MOSFET output technology for fast switching and low leakage current, ensuring minimal power loss and heat generation. It features a single-pole single-throw (SPST) contact configuration and through-hole terminal type for robust connectivity.
The relay operates reliably across a temperature span of -30°C to 80°C, suitable for varied environments. Compact dimensions of 37.4mm height, 29mm length, and 12.7mm width make it an ideal choice for space-constrained setups. It is engineered to meet stringent IEC, CE, RoHS, and cUL standards, underscoring its industrial-grade quality and compliance.
This solid state relay is extensively used in industrial automation, motor control, HVAC systems, and signal conditioning applications, offering high performance, durability, and safety features. The LED input status indicator (as per product family) assists in easy operational monitoring.
This solid state relay supports DC switching with SPST contact configuration. Operates within a control voltage range of 5 V dc to 15 V dc. Compact form factor optimized for DIN rail mounting. Compliant with CE, RoHS, IEC, and cUL standards.
Low off state leakage current of 20μA for energy efficiency. MOSFET output type provides fast and reliable switching. Wide operating temperature: -30°C to 80°C.
Package includes one Crydom ED Series Solid State Relay with model number ED10D5. Designed and manufactured in Mexico, guaranteeing quality and performance. Suitable for diverse industrial and electrical applications seeking dependable DC switching.
Explore more in our Solid State Relay category at EnvMart for all your automation and control gear requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5 amps.
This solid state relay operates with a control voltage range of 5 V dc to 15 V dc.
It operates reliably across a temperature range of -30°C to 80°C.
The relay employs MOSFET output technology for efficient switching performance.
The dimensions of this relay are 37.4 mm in height, 29 mm in length, and 12.7 mm in width.
It features a single-pole single-throw (SPST) contact configuration.
The minimum load voltage is 1 V dc.
The off-state leakage current for this model is 20μA.
It complies with CE, RoHS, IEC standards and is cUL recognized.
This model is designed for DIN rail mounting, facilitating easy installation.
It features a through-hole terminal type for robust connectivity.
It is suitable for industrial automation, motor control, HVAC systems, and signal conditioning applications.
