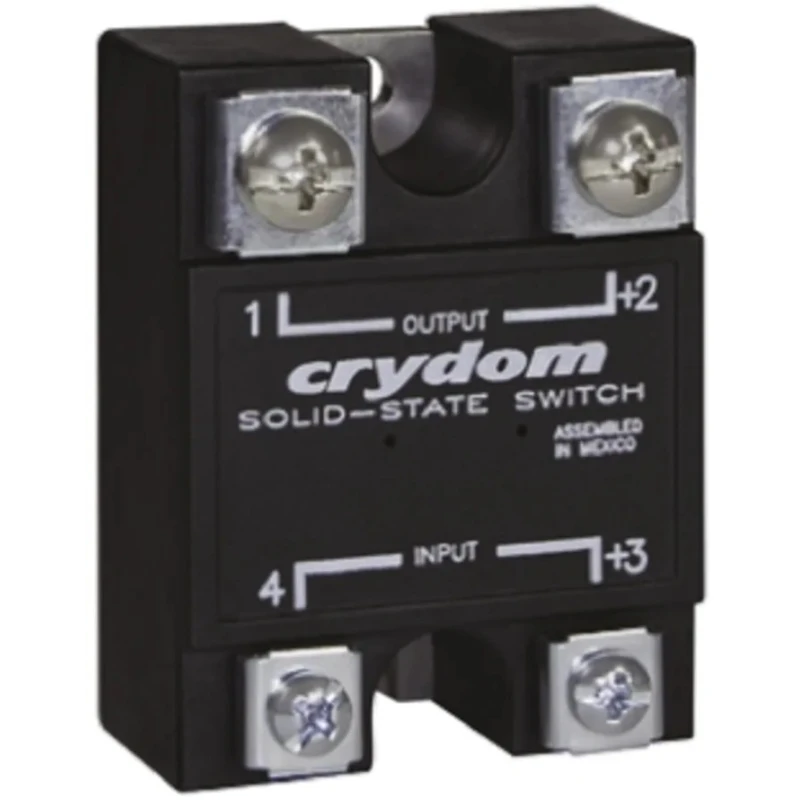

Crydom LVD Series Solid State Relay 40 A Load Panel Mount 75 V dc Load 11.5V dc Control LVD75A40

This model supports a maximum load current of 40 A and a maximum load voltage of 75 V dc, featuring a panel mount configuration with screw terminals for secure installation.

The relay is part of the LVD series, characterized by its compact encapsulated hockey puck design and FET output type that ensures low on-state resistance of 15 ohms, promoting energy efficiency.

It operates reliably in harsh conditions within a temperature range from -30°C to +80°C and complies with RoHS standards, ensuring environmentally safe use. The switching function is specifically optimized for DC circuits with a single-pole single-throw (SPST) contact arrangement.

Control voltage requirements range from 11 V dc minimum to 11.5 V dc maximum, suitable for various battery systems. The relay exhibits an off-state leakage current of only 0.5 mA and a capacitance of 50 pF, contributing to stable electrical performance. Its IP00 rating indicates protection against solid foreign objects, but it should be installed where moisture exposure is minimal.

The product measures 45.7 mm in length, 58.4 mm in height, and 19.8 mm in width, making it highly compact for panel mounting scenarios. Screw terminals provide ease of installation and connection security in industrial, manufacturing, automation, and electrical control applications.

Typical use cases include power switching in DC control panels, automation systems, and applications demanding high reliability and durability. Its robust construction and compact size allow effective integration in various industrial environments requiring precise DC load control.

Set includes 1 Crydom LVD Series Solid State Relay LVD75A40. For professional electrical and automation solutions, explore our comprehensive range of Solid State Relays and related components at EnvMart.

The relay supports a maximum load voltage of 75 V dc for versatile DC applications. It operates with a control voltage range of 11 V dc minimum up to 11.5 V dc maximum. Features a compact encapsulated hockey puck style suitable for panel mounting with screw terminal connections.

Built with FET output type providing a low on-state resistance of 15 Ω for efficient power handling. Operates within a wide temperature range from -30°C to +80°C ensuring durability in harsh environments. Offers an off-state leakage current of 0.5 mA and a capacitance of 50 pF for high performance.

Contact configuration is single-pole single-throw (SPST) suited for DC loads. IP00 rated ensuring protection against solid objects but not water ingress. Complies with RoHS directives, certified for quality and environmental safety.

Dimensions are 45.7 mm length, 58.4 mm height, and 19.8 mm width, optimized for space efficiency. Shop safely and efficiently with EnvMart’s premium electrical components and enjoy expert support for your industrial projects.
