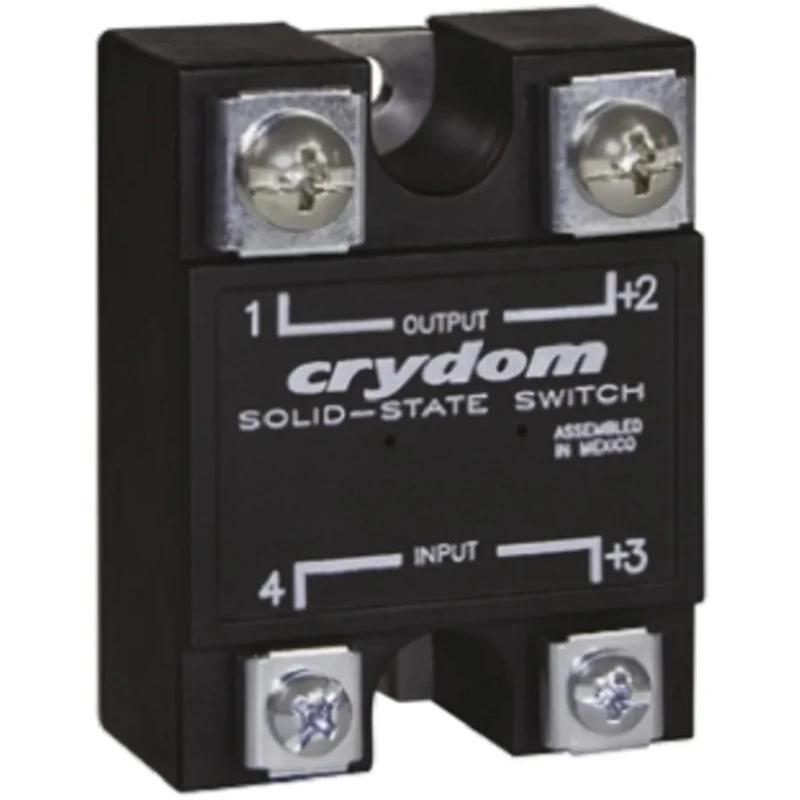

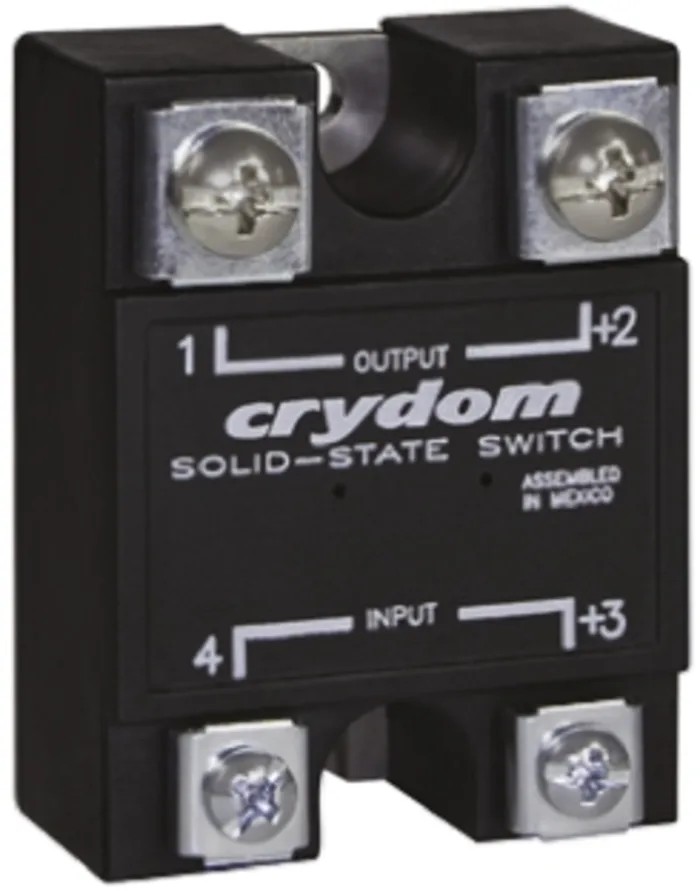

Crydom Panel Mount Solid State Relay 80A Load, 75 V dc Load, 24V dc Control LVD75D80

Crydom LVD75D80 is a high-performance panel mount solid state relay optimized for DC switching applications demanding up to 80 A load current and a maximum load voltage of 75 V dc. The relay is designed in a compact hockey puck style package, making it well suited for industrial automation, electrical control systems, and harsh environments requiring reliable solid state switching with minimal maintenance.

The relay’s screw terminal connections enable secure, easy wiring in control panels. Operating temperature ranges from -30°C to +80°C, ensuring dependable functionality across diverse environmental conditions. Featuring a low on-state resistance of 15Ω, this relay minimizes power loss and heat generation when energized. Off-state leakage current is held to a low 0.5 mA, preventing unintended currents in de-energized circuits.

Designed with a single-pole single-throw (SPST) contact configuration and a FET output type, the LVD75D80 solid state relay is suitable for precise control of DC loads such as motors, actuators, and battery systems. Its capacitance of 50 pF contributes to stable operation and noise immunity. Compliance with RoHS standards guarantees environmental safety.

This relay series supports a control voltage range of 23 to 24 V dc, compatible with standard 24 V control systems commonly used in industrial automation and battery management applications. The compact encapsulated design facilitates efficient panel mounting and protects the internal components from dust and temporary exposure to moisture (IP00 rated).

Compact panel mounting design enables easy integration in electrical control panels. Screw terminals provide reliable electrical connections. Wide operating temperature range from -30°C to +80°C ensures versatility. Low on-state resistance of 15Ω reduces energy loss during operation.

Minimal off-state leakage current of 0.5 mA improves circuit reliability. FET output type allows efficient DC switching with high accuracy. SPST contact configuration simplifies circuit design. Capacitance of 50 pF minimizes electrical noise interference.

RoHS compliant for environmental and safety standards.

This solid state relay is ideal for industrial automation, electrical panels, manufacturing process control, DC motor controls, battery management systems, and HVAC applications requiring efficient, noise-free DC load switching. EnvMart invites you to explore more high-quality Solid State Relays and automation components for your industrial projects.
