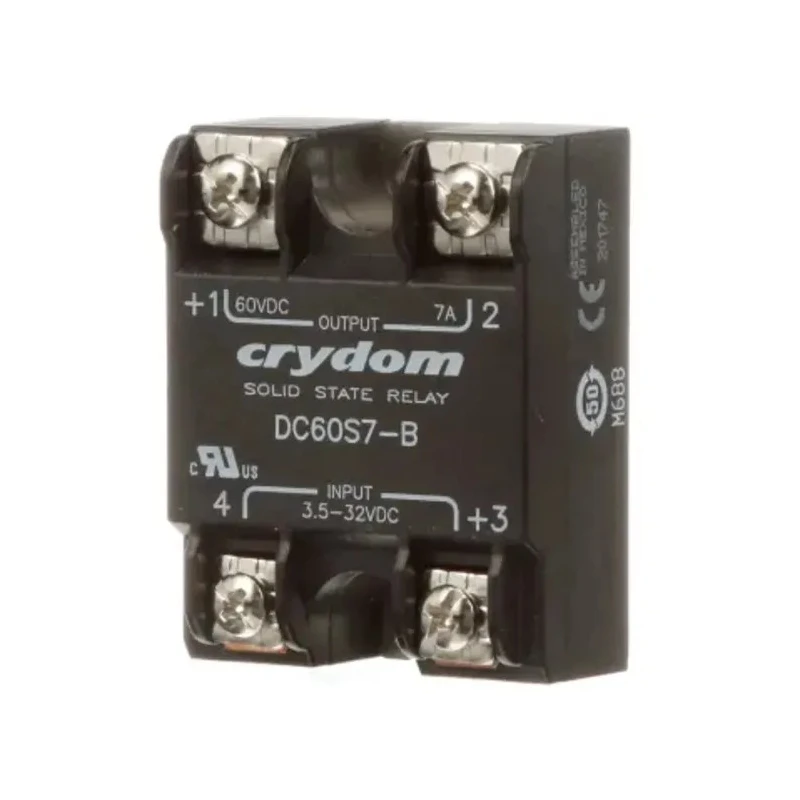

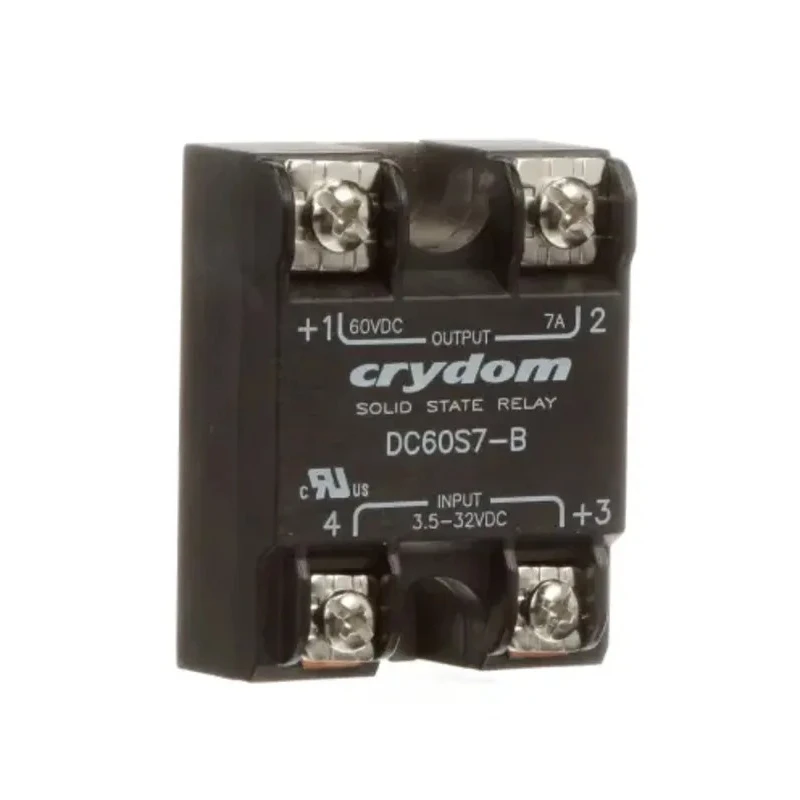

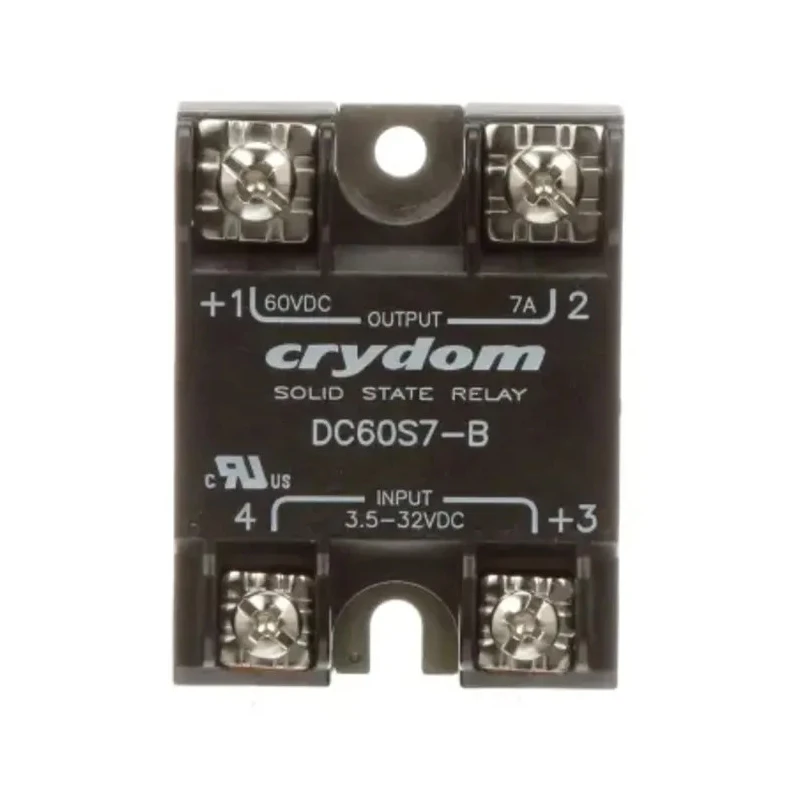

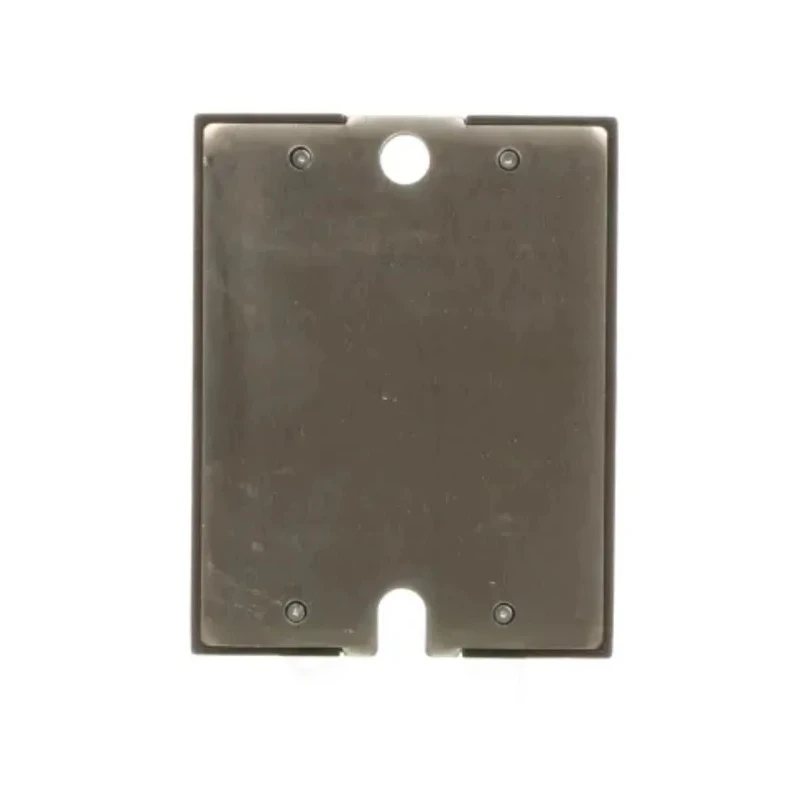

Crydom DC60 Series Solid State Relay 7A Load 60V DC Panel Mount Screw Terminals Bipolar Transistor Output
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | DC60 |
| IP Rating | IP00 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | Bipolar Transistor |
| Series | DC60 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPNC |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 7A |
| Standards/Approvals | CSA, RoHS, UL, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-0882Brand: CrydomManufacturers Part No.: DC60S7-BDistrelec Article No.: 30084058 |
| Maximum Load Voltage | 60V dc |
| Minimum Load Voltage | 3V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mA |
Key Features
- Rated for a maximum load current of 7 amperes.
- Supports DC switching with bipolar transistor output type.
- Panel mount design with screw terminals ensures secure installation.
- Operates over wide temperature range from -30°C to +80°C.
- High isolation voltage of 4000 Vrms provides surge protection.
- Low off state leakage current of 0.1 mA for energy efficiency.
- Complies with CSA, RoHS, UL, and VDE safety standards.
- Suitable for industrial control systems and I/O subsystems.
Product Description
Crydom DC60S7-B is a high-performance solid state relay designed for DC switching applications requiring a maximum load current of 7A and load voltage up to 60V DC. It features a bipolar transistor output type and is intended for panel mounting with convenient screw terminals for secure connections.
This relay operates reliably in harsh environments with a temperature range from -30°C to +80°C and an isolation voltage rating of 4000 Vrms to protect circuitry from power surges. Its compact form factor of 58.4mm height, 45.7mm length, and 22.6mm width facilitates integration into industrial panels and control assemblies.
The DC60S7-B model supports control voltages from 3.5V to 32V DC, activating the relay quickly with a turn-on time of 0.1ms. Its low off state leakage current of 0.1 mA reduces power loss during idle states. Safety certifications include CSA, RoHS, UL, and VDE ensuring compliance with international standards.
Ideal applications span industrial automation equipment, I/O subsystems, and machinery control where precise and reliable DC switching is essential. The relay’s normally closed (SPNC) configuration allows for versatile control logic implementations.
Maximum load current of 7A supports medium power switching. Panel mount type with screw terminals for easy installation. Wide control voltage range from 3.5V to 32V DC. Narrow off state leakage current improves energy efficiency.
Certified for compliance with leading international standards. Robust operating temperature range for harsh industrial environments. Explore the full range of Solid State Relays at EnvMart to find solutions tailored to your industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 7 amperes.
It supports a control voltage range from 3.5V to 32V DC.
This relay operates over a wide temperature range from -30°C to +80°C.
It features a bipolar transistor output type for DC switching applications.
The isolation voltage rating is 4000 Vrms, providing protection against power surges.
The dimensions are 58.4mm in height, 45.7mm in length, and 22.6mm in width.
It is designed with screw terminals for secure panel mounting.
It complies with CSA, RoHS, UL, and VDE safety standards.
The off state leakage current is 0.1 mA, which improves energy efficiency.
The contact configuration is normally closed (SPNC), allowing for versatile control logic implementations.
It is suitable for industrial automation equipment, I/O subsystems, and machinery control where precise DC switching is essential.
The minimum load voltage is 3V DC.
