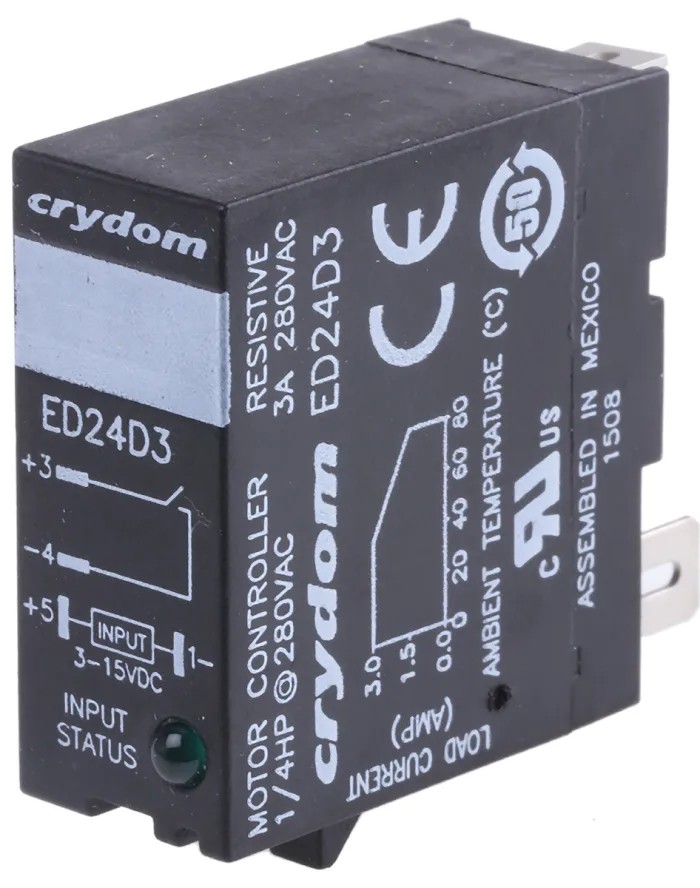

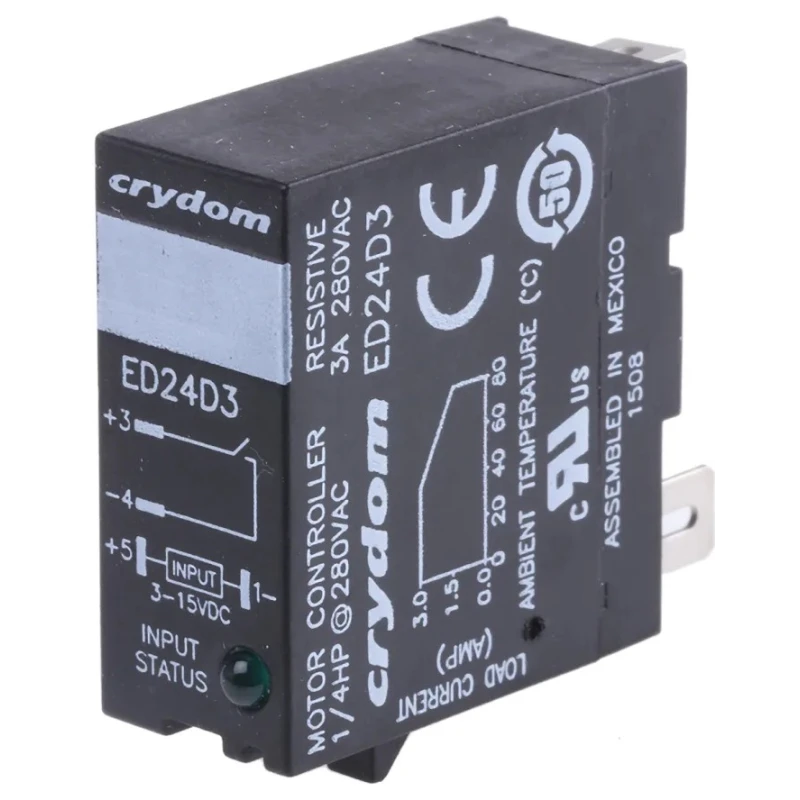

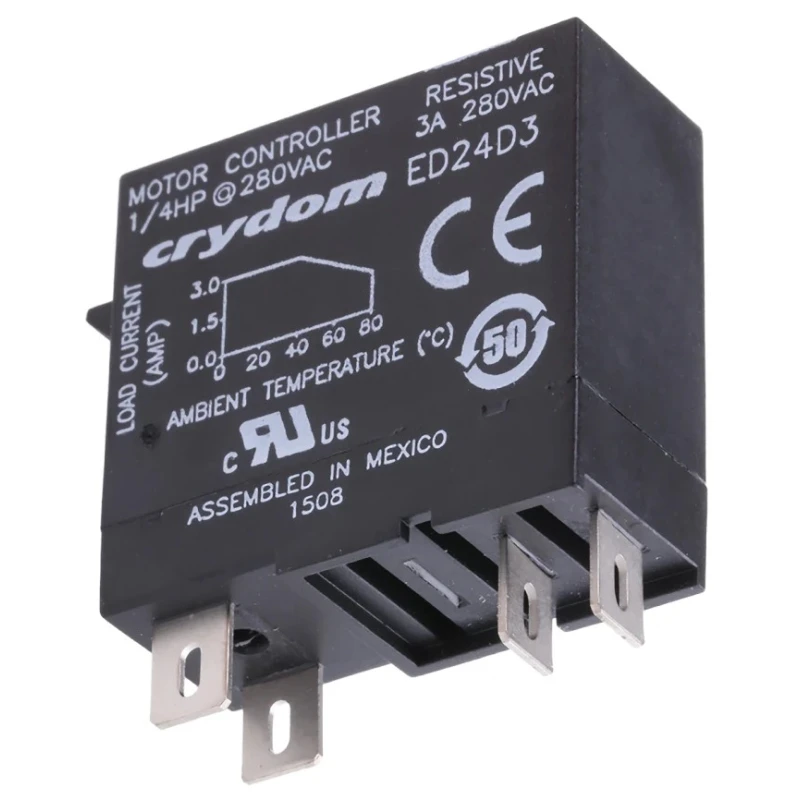

Crydom ED Series Solid State Relay, 3A Load, DIN Rail Mount, 280 Vrms Load, 15V DC Control ED24D3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 37.4mm |
| Length | 29mm |
| Model | ED24D3 |
| Width | 12.7mm |
| Mount Type | DIN Rail |
| Output type | AC |
| Series | ED |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 3A |
| Standards/Approvals | RoHS, IEC Rated, cUL, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-1346Brand: CrydomManufacturers Part No.: ED24D3Distrelec Article No.: 30084090 |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 15V dc |
| Off State Leakage Current | 0.1mArms |
Key Features
- Supports a wide control voltage range from 3V DC to 15V DC.
- Equipped with through-hole terminals for easy PCB and DIN rail integration.
- Features zero cross switching function for reduced electrical noise.
- Operates reliably under temperatures from -30°C to 80°C.
- Top-mounted LED indicator provides easy input signal monitoring.
- Low off-state leakage current of 0.1mA minimizes power consumption.
- Compact dimensions make installation in tight spaces practical.
- Compliant with RoHS, IEC, cUL, and CE standards ensuring safety and quality.
Product Description
Crydom ED24D3 Solid State Relay offers efficient and reliable switching for automation and electrical systems requiring a DIN rail mount solution. It accommodates a maximum load current of 3A and supports load voltages up to 280 Vrms AC, suitable for various industrial and commercial applications.
This SSR employs solid-state technology that features no moving parts, allowing for extended operational life and reducing maintenance needs in industrial environments such as manufacturing equipment, packaging plants, and control panels.
The relay’s control voltage range of 3V to 15V DC, combined with through-hole terminal construction, simplifies integration with printed circuit boards and DIN rail mounts. Included zero cross switching function lowers electromagnetic interference, protecting sensitive components in your control system.
Designed to withstand harsh environments, the device functions efficiently between -30°C and 80°C, with a low off-state leakage of just 0.1mA to help conserve energy. A top-mounted LED indicator facilitates quick visual confirmation of input signals during operation and troubleshooting.
Dimensionally compact at 37.4mm height, 29mm length, and 12.7mm width, this relay fits easily into control cabinets and automation equipment. Certified to RoHS, IEC, cUL, and CE standards, it ensures compliance with key international safety and quality protocols.
Supports 3A AC load current for medium-power applications. DIN rail mount type for convenient installation. Zero cross switching minimizes switching transients and noise. Broad operating temperature range suitable for industrial conditions.
Low leakage current reduces overall power consumption. Top LED aids status indication and troubleshooting. Durable nickel-plated copper contacts for reliable conductivity. Certified to multiple international standards for assured quality.
This Crydom Solid State Relay is ideal for industrial automation, HVAC systems, packaging machinery, and other applications requiring fast, reliable switching with minimal maintenance. Explore more high-quality relays and automation components in EnvMart’s Electronics & Electricals section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 3A.
It supports a control voltage range from 3V DC to 15V DC.
The dimensions are 37.4mm in height, 29mm in length, and 12.7mm in width.
This model is designed for DIN rail mounting.
It operates efficiently within a temperature range of -30°C to 80°C.
It features zero cross switching, which minimizes switching transients and electrical noise.
The output type is AC.
The off-state leakage current is 0.1mA.
It is compliant with RoHS, IEC, cUL, and CE standards.
It is equipped with through-hole terminals for easy integration.
This solid state relay is suitable for industrial automation, HVAC systems, and packaging machinery.
The capacitance is 10pF.
