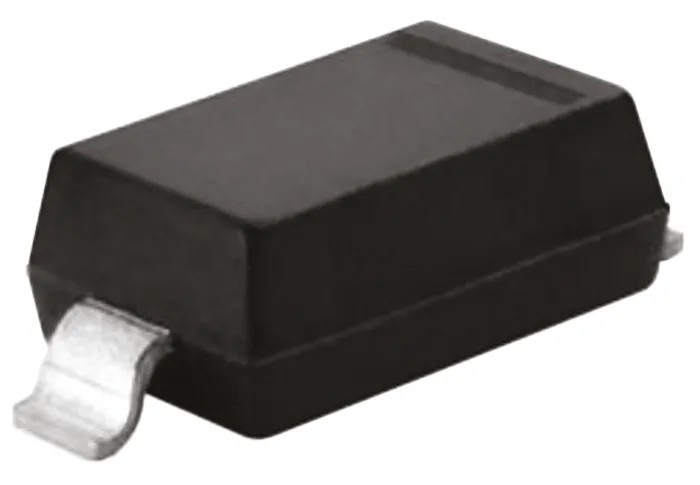

DiodesZetex 4.7 V Zener Diode 500 mW Surface Mount SOD-123 2-Pin MMSZ5230B-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 4.7 V Zener Diode 500 mW Surface Mount SOD-123 2-Pin MMSZ5230B-7-F

Name: DiodesZetex 4.7 V Zener Diode 500 mW Surface Mount SOD-123 2-Pin MMSZ5230B-7-F
Brand: DiodesZetex
SKU: 361494
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.35mm
Length	2.85mm
Model	MMSZ5230B-7-F
Mount Type	Surface
Series	MMSZ5230B
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	738-5042Brand: DiodesZetexManufacturers Part No.: MMSZ5230B-7-F
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	4.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	19Ω

Key Features

The diode has a nominal Zener voltage of 4.7 volts with ±5% tolerance.
It supports a maximum power dissipation of 500 milliwatts.
The package type is SOD-123, designed for surface mounting with 2 pins.
The diode's maximum operating temperature is 150°C, and minimum is -65°C.
It features low maximum reverse leakage current of 5 microamperes.
The maximum Zener impedance is 19 ohms with a test current of 20 mA.
This component meets the automotive standard AEC-Q101 for quality assurance.
The diode has dimensions of approximately 2.85 mm in length and 1.35 mm in height.

Product Description

DiodesZetex MMSZ5230B-7-F is a high-quality 4.7 V Zener diode designed for voltage regulation applications in electronic devices. It has a maximum power dissipation rating of 500 mW, making it suitable for low power circuit protection and voltage stabilization.

This single-element diode is constructed in a compact SOD-123 surface mount package with 2 pins, enabling easy integration on printed circuit boards (PCBs). The device operates reliably within a temperature range of -65°C to 150°C, supporting robust performance in various industrial and automotive environments.

The diode ensures precise voltage regulation with a nominal Zener voltage of 4.7 volts and a tolerance of ±5%, alongside a low maximum reverse leakage current of 5 microamperes, contributing to efficiency and stability in electronic circuits.

Its maximum Zener impedance of 19 ohms tested at 20 mA ensures consistent voltage regulation and thermal management. This diode meets RoHS compliance and automotive standard AEC-Q101, endorsing its high reliability for automotive semiconductor applications.

Measuring approximately 2.85 mm in length and 1.35 mm in height, the diode's small footprint suits compact and densely populated PCB layouts. The diode is manufactured in China and is provided in surface-mount packaging to facilitate automated assembly and high production efficiency.

The diode has a nominal Zener voltage of 4.7 volts with ±5% tolerance. It supports a maximum power dissipation of 500 milliwatts. The package type is SOD-123, designed for surface mounting with 2 pins. The diode's maximum operating temperature is 150°C, and minimum is -65°C.

It features low maximum reverse leakage current of 5 microamperes. The maximum Zener impedance is 19 ohms with a test current of 20 mA. This component meets the automotive standard AEC-Q101 for quality assurance. The diode has dimensions of approximately 2.85 mm in length and 1.35 mm in height.

This DiodesZetex Zener Diode is ideal for industrial, automotive, and electronic circuit design applications requiring voltage regulation and protection. Explore more electronic components and semiconductor devices in EnvMart for your precise engineering needs.
