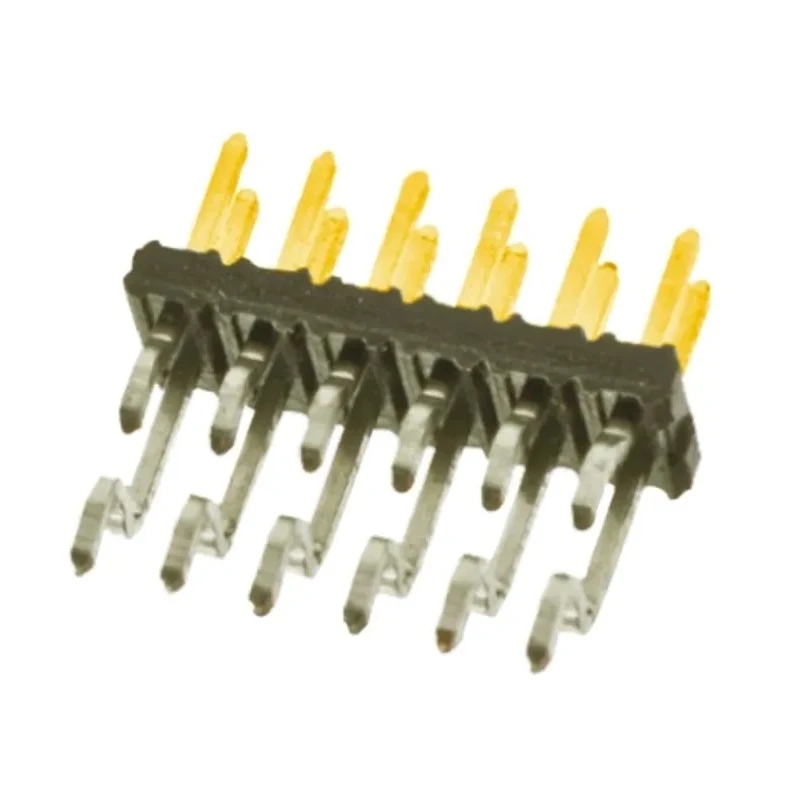

Amphenol Communications Solutions Minitek Series Right Angle Surface Pin Header, 12 Contacts, 2 mm Pitch 10112690-G03-06ULF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 650V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 2A |
| Model | 10112690-G03-06ULF |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Minitek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-1620Brand: Amphenol Communications SolutionsManufacturers Part No.: 10112690-G03-06ULF |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 4mm |
Key Features
- The pin header is right angled and unshrouded, ideal for board-to-board and wire-to-board connections.
- Manufactured with a thermoplastic housing for durable performance.
- Gold-plated copper alloy contacts ensure reliable connectivity and corrosion resistance.
- Solder termination type designed for surface mount technology (SMT) assembly.
- Operates efficiently in temperatures from -40°C to 125°C.
- Post length of mating pins is 4 mm for secure connections.
- Fully intermateable with other Minitek system components, enabling versatile PCB designs.
- Compact 2 mm pitch offers space savings compared to standard 2.54 mm connectors.
Product Description
Amphenol Communications Solutions 10112690-G03-06ULF Minitek Series right angle surface pin header is a high quality SMT horizontal header with 12 male contacts arranged in 2 rows at a 2 mm pitch designed for space-efficient electrical connections. Rated for 2 amps current and 650 volts, this header offers reliable performance in industrial and electronic PCB applications.
The housing is made from thermoplastic for mechanical strength and electrical insulation. Contact plating of gold over copper alloy provides excellent corrosion resistance and electrical conductivity. The unshrouded right angle design allows for secure board-to-board and wire-to-board connections using surface mount soldering techniques.
The minimum operating temperature is -40°C with a maximum rating of 125°C, enabling usage in a wide range of environmental conditions. The post length of 4 mm ensures firm mating with compatible Minitek receptacles and wire connectors.
The component is part of the Minitek system, known for its compact 2 mm pitch that achieves up to 38% space savings compared to standard 2.54 mm headers, making it ideal for high density PCB layouts.
The pin header is right angled and unshrouded, ideal for board-to-board and wire-to-board applications. Thermoplastic housing provides durability and electrical insulation. Gold-plated copper alloy contacts ensure high reliability and corrosion resistance.
Solder termination designed for surface mount technology for ease of assembly. Wide operating temperature range from -40°C to 125°C. 4 mm mating pin length for secure electrical connections. Fully intermateable across the Minitek connector and header range.
2 mm pitch enables significant PCB space savings. Manufactured in France ensuring high quality standards. Used extensively in industrial, electronic, manufacturing, and communications equipment. Explore more from Amphenol Communications Solutions on EnvMart for advanced PCB connectors and headers suited to electronics manufacturing and assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 650 volts.
This pin header is rated for a current of 2 amps.
The pitch size of the contacts is 2 mm, allowing for space-efficient connections.
It operates efficiently within a temperature range of -40°C to 125°C.
This model features 12 male contacts arranged in 2 rows.
It uses a solder termination type designed for surface mount technology (SMT) assembly.
The housing is made from thermoplastic, providing mechanical strength and electrical insulation.
The post length of the mating pins is 4 mm, ensuring secure connections.
Yes, it is fully intermateable with other components in the Minitek system, enabling versatile PCB designs.
This model is designed for board-to-board and wire-to-board connections.
This product is manufactured in France, ensuring adherence to high quality standards.
The contacts are made from gold-plated copper alloy, providing excellent corrosion resistance and conductivity.
