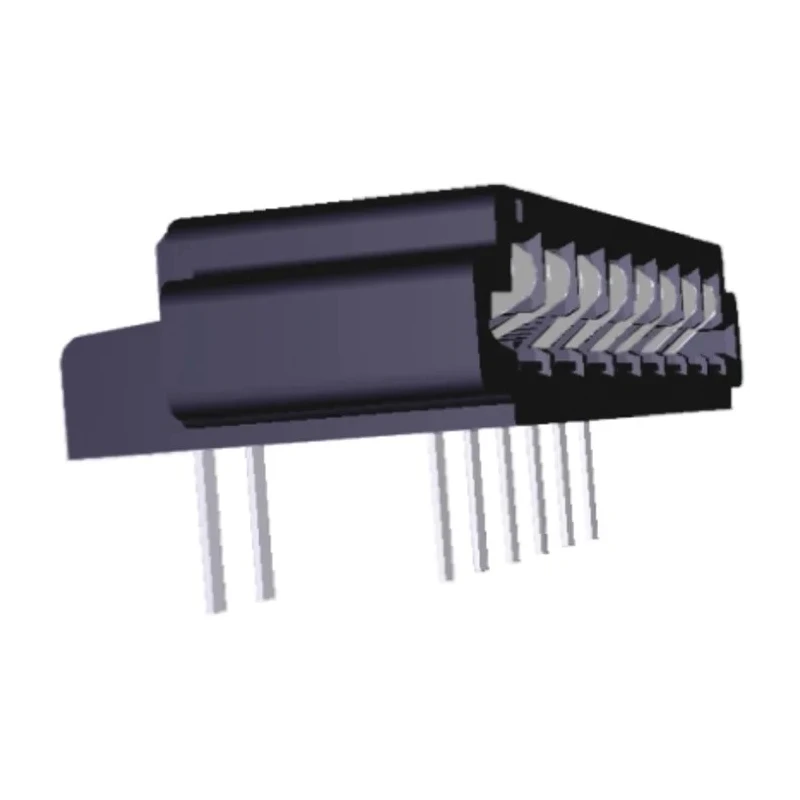

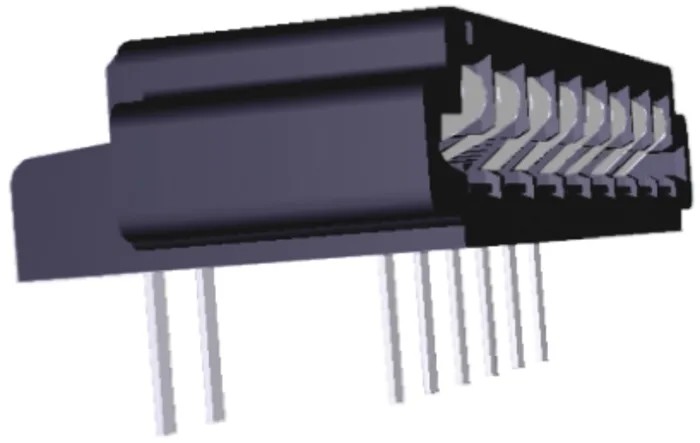

TE Connectivity Trio-Mate 2.54 mm Pitch 11 Way Right Angle Female FPC Connector Solder 6-520314-1

TE Connectivity 6-520314-1 Trio-Mate 2.54 mm Pitch 11 Way Right Angle Female FPC Connector is a high-quality flexible film connector engineered for electronics applications requiring reliable connections with flexible printed circuits (FPC), flexible etched circuitry, or membrane switch circuitry. It features an 11-contact design with 2.54 mm pitch spacing, suitable for precise electrical interconnections.

The connector contacts are made of phosphor bronze with tin plating for corrosion resistance and efficient signal transmission. The housing is made from black UL 94V-0 thermoplastic material providing flame retardance and mechanical durability. The connector allows for through-hole mounting and solder termination to ensure strong PCB attachment. Its right angle orientation optimizes board space.

This connector supports a current rating of 1A and an operational voltage of 250V AC. It endures extreme temperatures from -55°C minimum to 105°C maximum, making it appropriate for industrial, electronic devices, and communication equipment.

The Trio-Mate series supports 0.13 to 0.38 mm thick flexible cables, ensuring versatility with various flexible circuitry thicknesses. The high extraction force design allows the connector to be reused at least 25 times with the same cable thickness, offering durability in maintenance and replacement scenarios.

11 contacts provide reliable electrical connectivity. Phosphor bronze contacts with tin plating for conductivity and corrosion resistance. Right angle female orientation suits compact PCB layouts. Solder termination ensures strong and durable joints.

UL 94V-0 thermoplastic housing offers flame retardant properties. Low insertion force (LIF) design facilitates easy connector mating and unmating. Wide operating temperature range from -55°C to 105°C. Suitable for industrial, electronic, communications, and lab applications requiring flexible circuit connections.

Reusable up to 25 cycles maintaining connection integrity.

The product is manufactured in India and complies with industry standards, ensuring quality and reliability. It is ideal for use in electronic assemblies, communication devices, laboratory instruments, and other industrial systems requiring flexible circuit connections with a dependable FPC connector.
