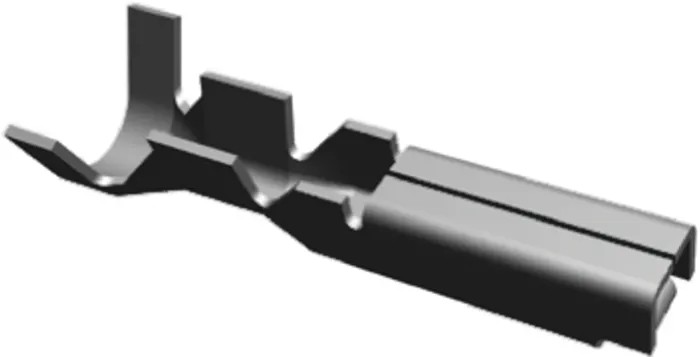

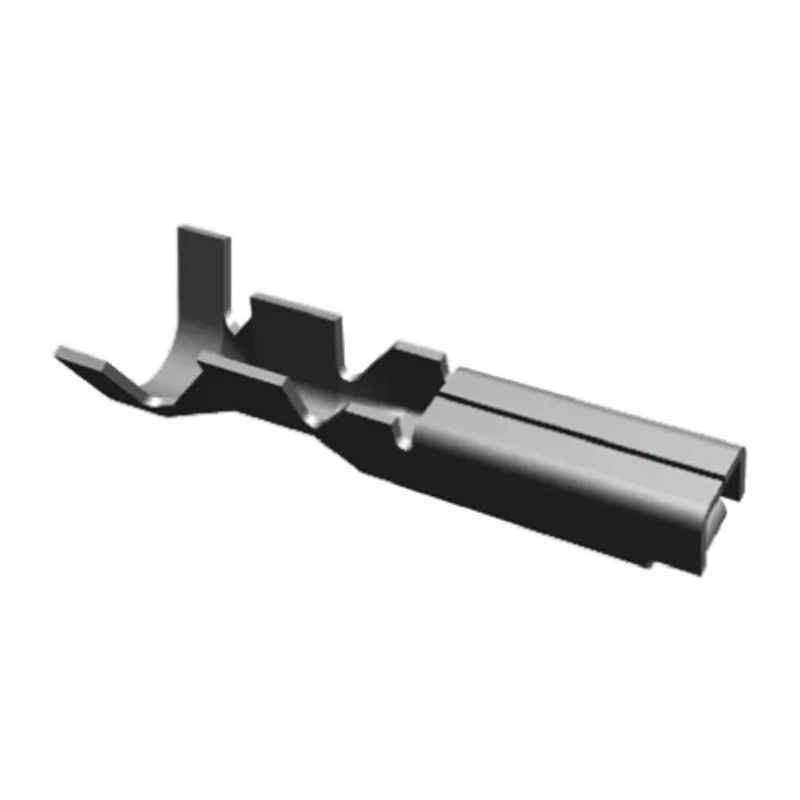

TE Connectivity MINI-MIC Series Female Crimp Terminal 13 AWG Min, 15 AWG Max, Tin Plated Phosphor Bronze 282438-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Length | 17mm |
| Model | 282438-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Current Rating | 15A |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-3151Brand: TE ConnectivityManufacturers Part No.: 282438-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 13AWG |
| Maximum Wire Size AWG | 15AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Constructed with tin-plated phosphor bronze contacts ensuring durability.
- Suitable for use in automation and automotive wire-to-wire applications.
- Operates reliably at temperatures from -30°C to 105°C.
- Features crimp termination for secure mechanical and electrical connections.
- Compact design with 17mm length for easy installation.
- Supports current rating of up to 15A with low contact resistance.
- Snap-in fixing fits securely into connector cavities.
- No certifications or approvals but meets industry performance standards.
Product Description
TE Connectivity 282438-1 MINI-MIC Series Female Crimp Terminal is a high-density, miniature crimp terminal designed for reliable wire connections in industrial, automotive, and automation applications. It supports wire sizes from 13 AWG (0.5mm²) to 15 AWG (1.0mm²) and is compatible with AMP SUPERSEAL 1.5 connector housing. The contact is made of phosphor bronze with tin plating, providing corrosion resistance and excellent conductivity.
Operating within a temperature range of -30°C to 105°C, this crimp terminal ensures stable performance in diverse environmental conditions. It accommodates currents up to 15A and features a maximum contact resistance of 20mΩ, ensuring efficient electrical contact. The 17mm length design facilitates easy assembly and installation.
The MINI-MIC series supports snap-in fixing into connector cavities, providing a secure connection in both wire-to-wire and wire-to-board configurations, commonly found in automotive and signal transfer uses. These crimp terminals provide a cost-effective and mechanically robust solution for manufacturing and maintenance of electrical and electronic assemblies.
Constructed with tin-plated phosphor bronze contacts ensuring durability. Suitable for use in automation and automotive wire-to-wire applications. Operates reliably at temperatures from -30°C to 105°C. Features crimp termination for secure mechanical and electrical connections.
Compact design with 17mm length for easy installation. Supports current rating of up to 15A with low contact resistance. Snap-in fixing fits securely into connector cavities. No certifications or approvals but meets industry performance standards.
This product is ideal for use in industrial automation, automotive wiring harnesses, electrical manufacturing, and maintenance scenarios requiring compact, reliable Crimp Terminals with proven TE Connectivity quality. EnvMart customers benefit from precise technical details and application versatility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 15A, ensuring efficient electrical contact in various applications.
It operates reliably within a temperature range of -30°C to 105°C, making it suitable for diverse environmental conditions.
This crimp terminal is compatible with wire sizes from 13 AWG (0.5mm²) to 15 AWG (1.0mm²).
The contacts are made of phosphor bronze with tin plating, providing corrosion resistance and good conductivity.
The length of this crimp terminal is 17mm, facilitating easy installation.
It features crimp termination, ensuring secure mechanical and electrical connections.
Yes, it is designed for use with AMP SUPERSEAL 1.5 connector housing.
The maximum contact resistance is 20mΩ, ensuring efficient electrical contact.
It is suitable for use in industrial automation, automotive wiring harnesses, and electrical manufacturing.
It features a snap-in fixing that fits securely into connector cavities, providing a stable connection.
The initial low-level resistance is 1 mΩ max, ensuring efficient performance at low levels.
The country of origin for this crimp terminal is India.
