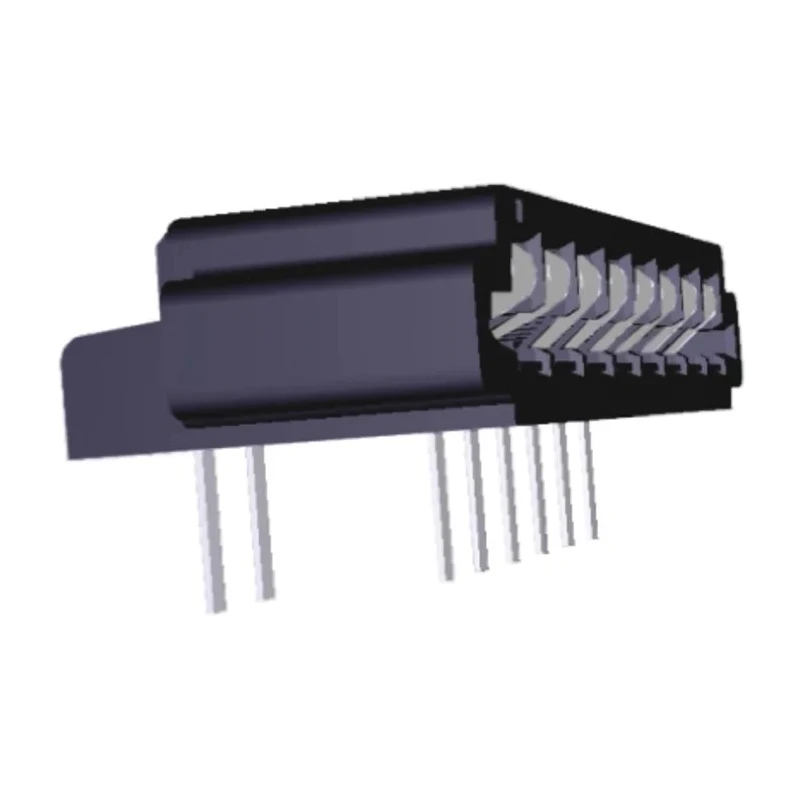

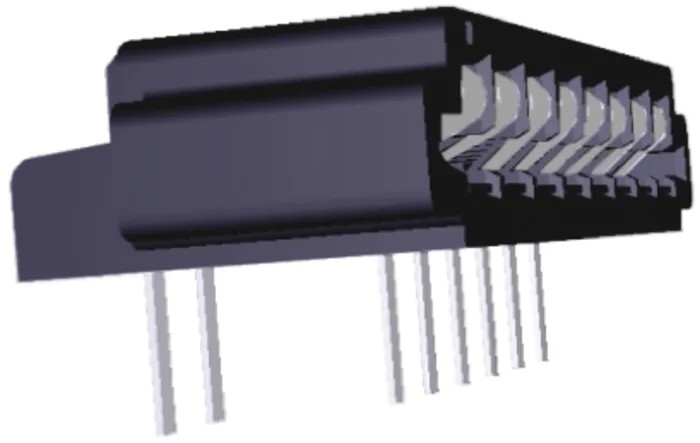

TE Connectivity Trio-Mate 2.54 mm Pitch 7 Way Right Angle Female FPC Connector, Solder 5-487508-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Trio-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Copper |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | LIF |
Key Features
- This FPC connector supports a current rating of 1A and voltage of 250V AC.
- The contact material is phosphor bronze with tin over copper plating for durability.
- The connector features a right angle orientation and through hole mount type for secure PCB attachment.
- It operates reliably between -55°C and 105°C and has a high extraction force with reuse capability up to 25 times.
- The housing material is UL 94V-0 rated black polyethylene terephthalate, ensuring flame resistance.
- The connector is designed for Flat Flexible Cable or flexible printed circuitry with thickness between 0.13 to 0.38 mm.
- Insertion force is low insertion force (LIF), facilitating easy assembly.
- Manufactured in India, this connector does not have formal standards or approvals listed.
Product Description
TE Connectivity 5-487508-6 Trio-Mate FPC Connector is a reliable right angle female flexible printed circuit (FPC) connector with a 2.54 mm pitch and 7 contact positions. It is designed to provide secure and durable connections for flat flexible cables, flexible etched circuitry, and membrane switch circuitry ranging from 0.13 mm to 0.38 mm thickness in the contact area.
The connector utilizes phosphor bronze contacts plated with tin over copper, ensuring excellent conductivity and corrosion resistance. Its black housing is made from UL 94V-0 rated polyethylene terephthalate (PET), which offers high flame resistance suitable for industrial and electronic assembly environments.
Operating voltage rating is 250V AC with a current capacity of 1A, making it suitable for low-power signal and control applications. It features a right angle orientation with through-hole mounting style, offering a robust mechanical and electrical connection to printed circuit boards. The low insertion force (LIF) design reduces wear on flexible cables during repeated insertions and removals.
This connector supports a wide operating temperature range from -55°C to 105°C. It features a high extraction force allowing up to 25 reuses with cables of the same thickness. The product is manufactured in India and belongs to the Trio-Mate series by TE Connectivity, ensuring global quality standards in electronic connectors.
7 way female connector with 2.54 mm pitch for FPC/FFC cables. Through-hole solder termination for durable PCB connection. Phosphor bronze contact material with tin over copper plating. Right angle orientation for space-saving PCB layouts.
Operating voltage of 250V AC and current rating of 1A. UL 94V-0 polyethylene terephthalate housing for flame resistance. Wide operating temperature range from -55°C to 105°C. High extraction force allowing up to 25 cycles of reuse.
This connector is commonly used in industrial electronics, laboratory instrumentation, consumer electronics, automotive electrical systems, and manufacturing applications requiring reliable flexible circuit interconnects. It is a critical component for designers needing robust and space-efficient interconnect solutions.
Explore more TE Connectivity products and FPC Connectors at EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250V AC and a current rating of 1A.
The contact material is phosphor bronze with tin over copper plating, and the housing is made from UL 94V-0 rated polyethylene terephthalate.
It operates reliably between -55°C and 105°C.
This model features 7 contact positions.
It utilizes a through-hole mounting style for secure attachment to printed circuit boards.
The pitch of this connector is 2.54 mm.
This connector has a right angle orientation, making it suitable for space-saving PCB layouts.
It has a high extraction force and can be reused up to 25 times with cables of the same thickness.
The connector features a solder termination type.
It is commonly used in industrial electronics, laboratory instrumentation, consumer electronics, automotive electrical systems, and manufacturing applications requiring reliable flexible circuit interconnects.
This model utilizes a low insertion force (LIF) design, facilitating easy assembly.
This connector is manufactured in India.
