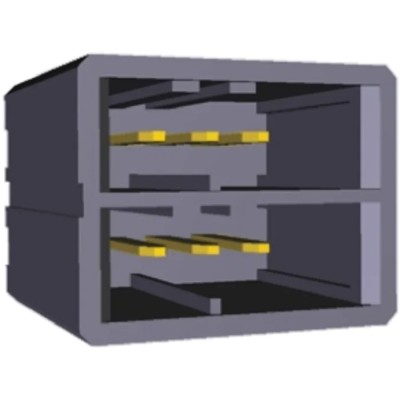

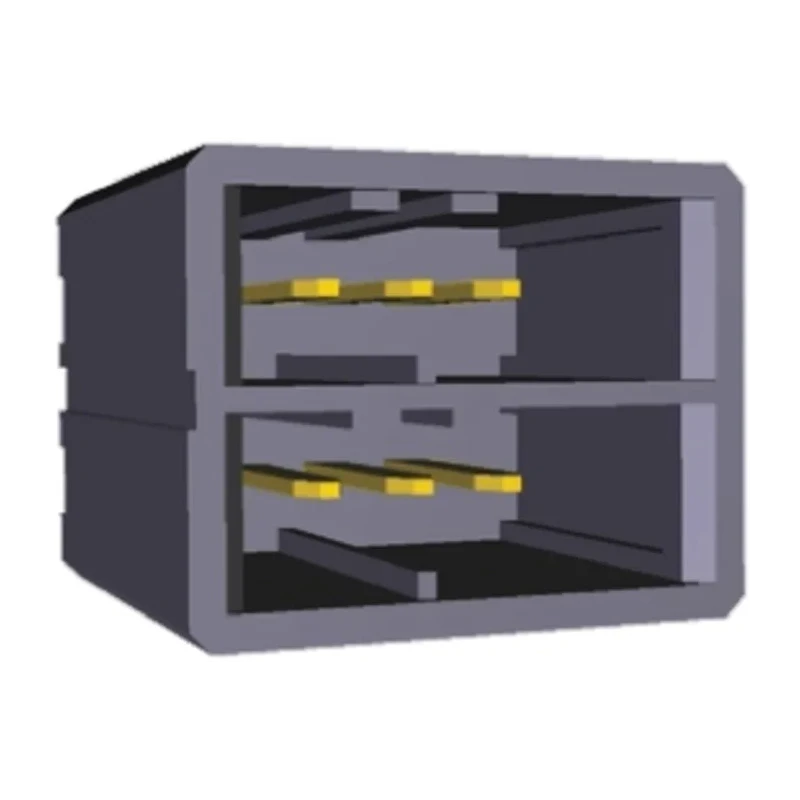

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 2 Row, Shrouded 1-178141-3

TE Connectivity 1-178141-3 PCB Header from the Dynamic 3000 Series is a robust straight through hole connector designed for industrial and electronic PCB applications. Featuring 6 gold plated copper alloy contacts arranged in 2 rows with a pitch of 3.81 mm, this shrouded header supports a maximum current of 10A and voltage of 250V. The housing is made from glass filled polyester ensuring mechanical strength and durability under diverse operating conditions.

This shrouded male connector is intended for wire-to-board connections with a through hole mount type and solder termination, providing reliable electrical and mechanical performance. Operating temperature ranges from -55°C to 105°C, making it suitable for environments with broad thermal variations.

The Dynamic D-3100 Series includes tin plated retention legs and solder tails that improve connector stability and ease of assembly, suitable for PCB thickness from 1.0 to 1.6 mm. It complies with industry standards but does not include specific certifications.

Applications span across industrial machinery, electronic devices, and manufacturing setups involving power and signal connections between wires and printed circuit boards. To ensure best mating compatibility, use with D-3100 series housings such as stock number 680-1571 is recommended.

Robust glass filled polyester housing for mechanical strength. Gold plated copper alloy contacts ensure reliable conductivity. Supports up to 10A current at 250V voltage rating. Wide operating temperature range from -55°C to 105°C.

Through hole mount and solder termination for secure assembly. Shrouded male connector enhances safety and mating alignment. Tin plated retention leg and solder tails for enhanced stability. Explore more power connectors and PCB Headers from TE Connectivity on EnvMart for your industrial and electronic component needs.
