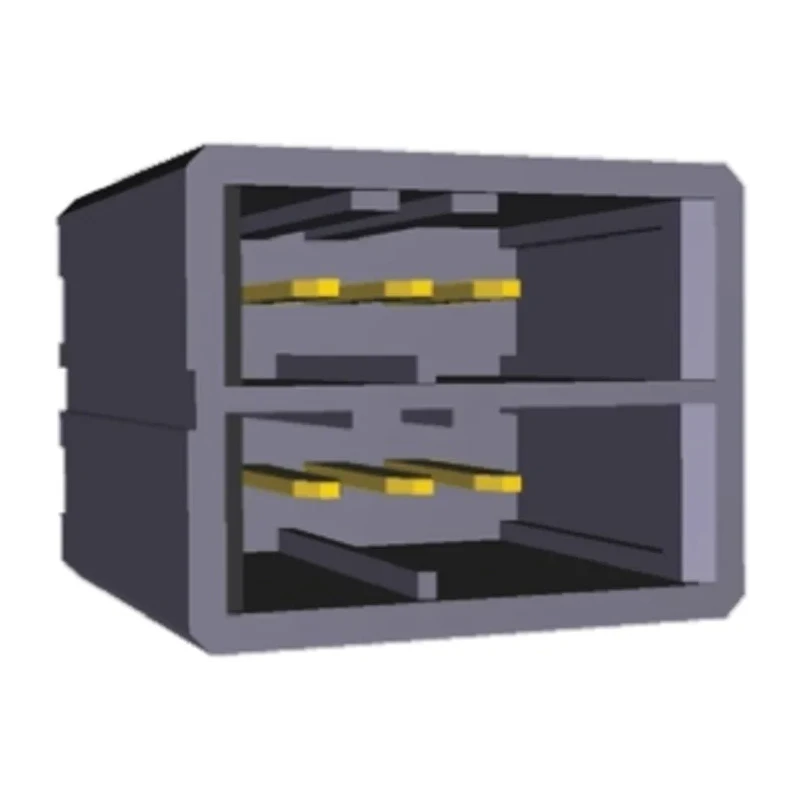

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 6 Contacts, 3.81 mm Pitch, 2 Row, Shrouded 1-178141-3

TE Connectivity 1-178141-3 is a premium Dynamic 3000 Series PCB Header equipped with 6 contacts and a 3.81 mm pitch, arranged in 2 rows with a shrouded housing. Its robust design supports a current rating of 10A and a voltage rating of 250V, making it ideal for demanding electronic applications.

The header uses glass filled polyester housing, offering excellent insulation and mechanical strength. Contacts are crafted from copper alloy and plated with gold, guaranteeing superior conductivity and resistance against corrosion. This straight orientation connector features a wire-to-board system and employs through hole mounting with solder termination for a secure and reliable electrical connection.

It is engineered to operate efficiently in temperature environments ranging from -55°C up to 105°C, ensuring stable performance in a wide range of industrial, electronic, and power circuit environments. This header is particularly suited for use in power connectors in electronics manufacturing, industrial control systems, and embedded device applications.

The Dynamic D-3100 series offers exceptional retention due to tin-plated retention legs and solder tails, improving PCB mounting stability. The recommended PCB thickness for optimal installation is between 1.0 to 1.6 mm. For mating connectors, compatible D-3100 series housings are typically used, providing modular flexibility and ease of assembly.

Set in a shrouded design, the connector ensures contact protection and reliable mating, which is critical in high-reliability electronic assemblies. The model 1-178141-3 header is supplied in tube packaging, facilitating efficient automated machine insertion and production efficiency.

The header supports a current rating of up to 10A at 250V, suitable for power applications. Constructed with a glass filled polyester housing for durability and insulating properties. The contacts are made of copper alloy with gold plating to ensure reliable conductivity and corrosion resistance.

The connector system is wire-to-board type with a straight orientation for ease of PCB mounting. Designed for through-hole mounting with solder termination, providing robust mechanical and electrical connection. The header incorporates a male contact gender with a row pitch of 3.81 mm and an operating temperature range from -55°C to 105°C.

TE Connectivity's Dynamic 3000 Series PCB Headers are widely trusted across various sectors including industrial automation, electronics manufacturing, power supplies, and embedded systems engineering. Browse more in EnvMart's Electronics & Electricals > Power Connectors > PCB Headers category to find compatible components and accessories.
