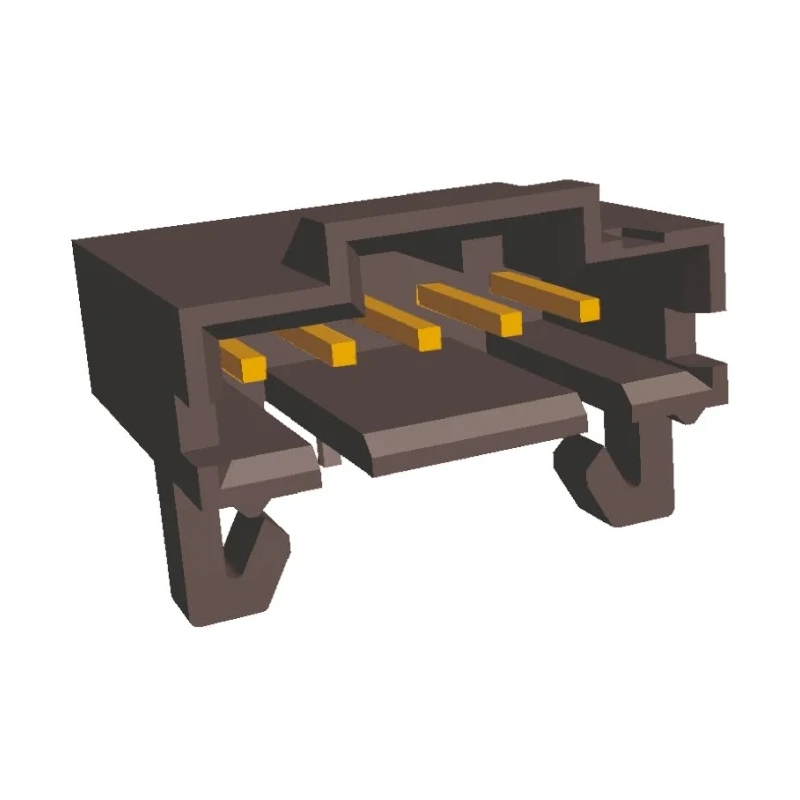

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header 5 Contacts 2.54mm Pitch 1 Row Shrouded 5-103673-4

TE Connectivity 5-103673-4 AMPMODU MTE Series Right Angle Through Hole PCB Header is a precision-engineered connector designed for reliable wire-to-board applications in diverse electronic assemblies.

The connector features 5 male contacts arranged in a single row with a 2.54 mm pitch and a shrouded housing constructed from thermoplastic material to provide mechanical protection and electrical insulation.

Its right angle orientation facilitates compact PCB layouts, while the gold-plated brass contacts guarantee excellent conductivity and long-term corrosion resistance. The 3A current rating and 250V voltage capacity make this connector suitable for a wide range of electronic and power applications.

This PCB header incorporates an integral latching mechanism to ensure a secure connection with AMPMODU MTE IDC receptacle connectors, supporting efficient mass termination of wires and simplifying assembly processes.

The termination method is soldered, featuring a tail pin length of 3.3 mm, enabling robust mechanical and electrical attachment to PCBs. The connector's operating temperature range from -65°C to 105°C permits performance in demanding environments including telecommunications, medical equipment, test instrumentation, and automotive systems.

Certified to CSA LR7189 and UL E28476 standards, this PCB header conforms with industry safety and quality regulations. Manufactured in Mexico, it is suitable for industrial, commercial, laboratory, and manufacturing electronic assemblies requiring high-reliability connectors.

Designed for reliable wire-to-board connection through a right angle orientation. Constructed with thermoplastic housing for durability and electrical insulation. Gold plated brass contacts ensure excellent conductivity and corrosion resistance.

Supports up to 3 Amperes current and 250 Volts voltage rating. Features integral latching for secure mating with compatible IDC connectors. Solder termination type with 3.3 mm tail pin length for robust PCB attachment. Operating temperature range from -65°C to 105°C for versatile application environments.

Complies with CSA LR7189 and UL E28476 safety standards. Suitability for mass termination in electronic equipment such as computers, telecommunications, and automotive controls. Manufactured in Mexico ensuring quality and compliance.
