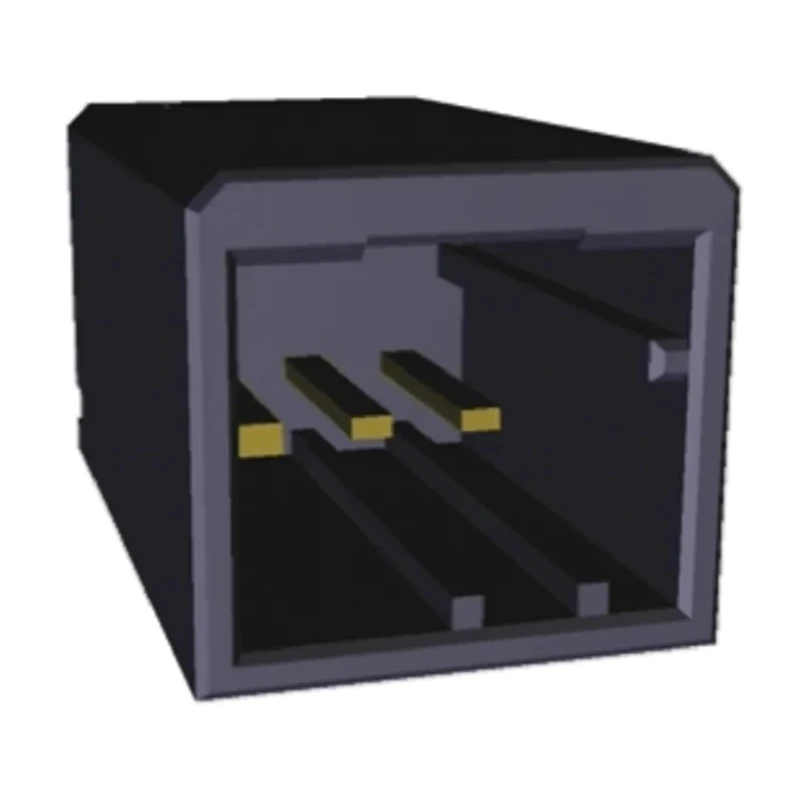

TE Connectivity Dynamic 2000 Series Straight Through Hole PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded 1318123-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Dynamic 2000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5616PBrand: TE ConnectivityManufacturers Part No.: 1318123-1 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of 5 A for efficient signal transmission.
- Constructed with thermoplastic housing ensuring durability.
- Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Designed for through hole mounting with solder termination type.
- Operates reliably between -55°C and 105°C temperature range.
- Compatible with recommended PCB thickness of 1.6 mm.
- Incorporates a keying system to prevent mis-mating during installation.
- Suitable for signal applications with a voltage rating of 250 V.
Product Description
TE Connectivity 1318123-1 Dynamic 2000 Series Straight Through Hole PCB Header is engineered for robust and stable wire-to-board connections in electronic applications. Featuring a 3-contact configuration with a standard 2.5 mm pitch and shrouded housing, it ensures safety and reduces risk of accidental shorts.
This PCB header utilizes a thermoplastic material for its housing paired with copper alloy contacts plated with gold for outstanding electrical performance and corrosion resistance. The solder termination and through hole mount type provide strong mechanical stability when mounted on PCBs.
Operating temperature ranges from -55°C to 105°C allows usage in diverse industrial, commercial, and laboratory environments. With a current rating of 5 A and a voltage rating of 250 V, the connector is ideal for signal transmission applications requiring reliability and precise mating facilitated by a built-in keying system.
The recommended PCB thickness is 1.6 mm, compatible with common printed circuit board standards. This product meets high manufacturing quality standards for electronics assembly and maintenance.
Supports a current rating of 5 A for efficient signal transmission. Constructed with thermoplastic housing for durability and safety. Gold plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Through hole mount and solder termination type provide mechanical robustness. Operates reliably within a wide temperature range from -55°C to 105°C. Incorporates a keying system to prevent mis-mating during installation.
Rated for 250 V suitable for varied electronics applications. Recommended PCB thickness is 1.6 mm for optimal fit and stability.
This PCB header is suitable for use in industrial controls, manufacturing equipment, communications devices, electronics prototyping, and repair applications. Its robust design ensures long-term performance and ease of integration.
Explore the full range of TE Connectivity PCB connectors and headers at EnvMart for comprehensive solutions tailored to your electronic design and maintenance needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 5 A, making it suitable for efficient signal transmission applications.
The voltage rating for this model is 250 V, which is appropriate for various electronics applications.
The contact pitch size for this connector is 2.5 mm, which is standard for many PCB applications.
It features a thermoplastic housing for durability and gold plated copper alloy contacts for excellent conductivity and corrosion resistance.
The recommended PCB thickness for this header is 1.6 mm, ensuring optimal fit and stability during installation.
This model operates reliably within a temperature range of -55°C to 105°C, suitable for various environments.
This header is configured with 3 contacts, allowing for multiple connections in a compact design.
It is designed for through hole mounting with a solder termination type, providing strong mechanical stability.
Yes, it incorporates a keying system to prevent mis-mating during installation, enhancing reliability.
The orientation of this model is straight, which is common for many PCB applications.
This product utilizes a wire-to-board connector system, suitable for various electronic applications.
The country of origin for this PCB header is India, indicating its manufacturing location.
