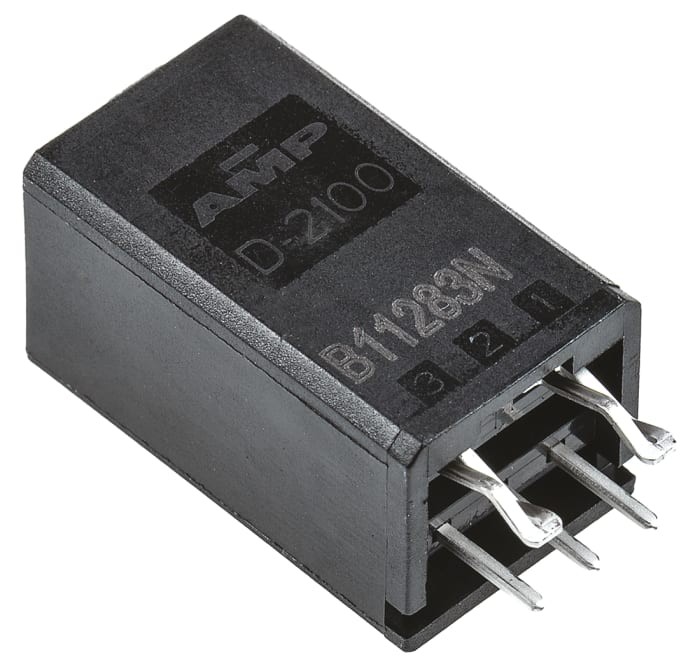

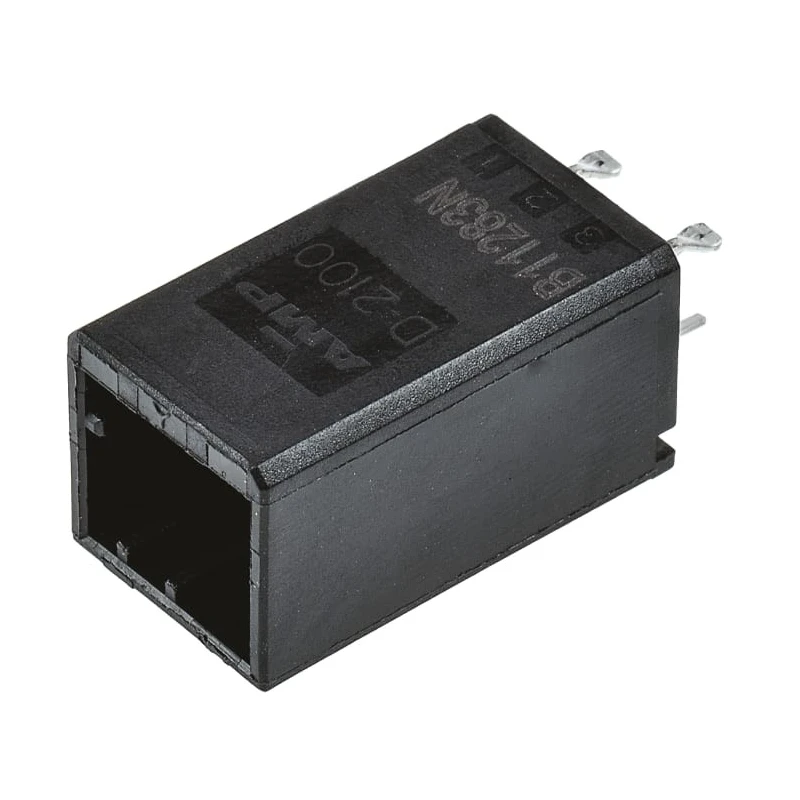

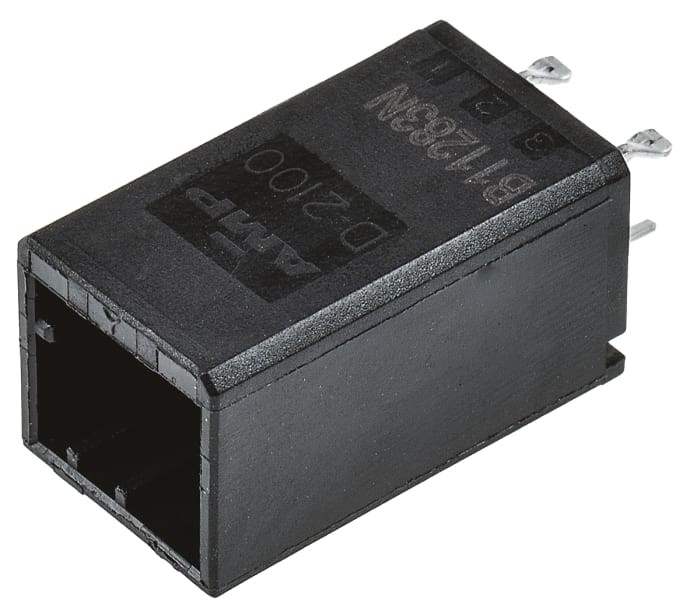

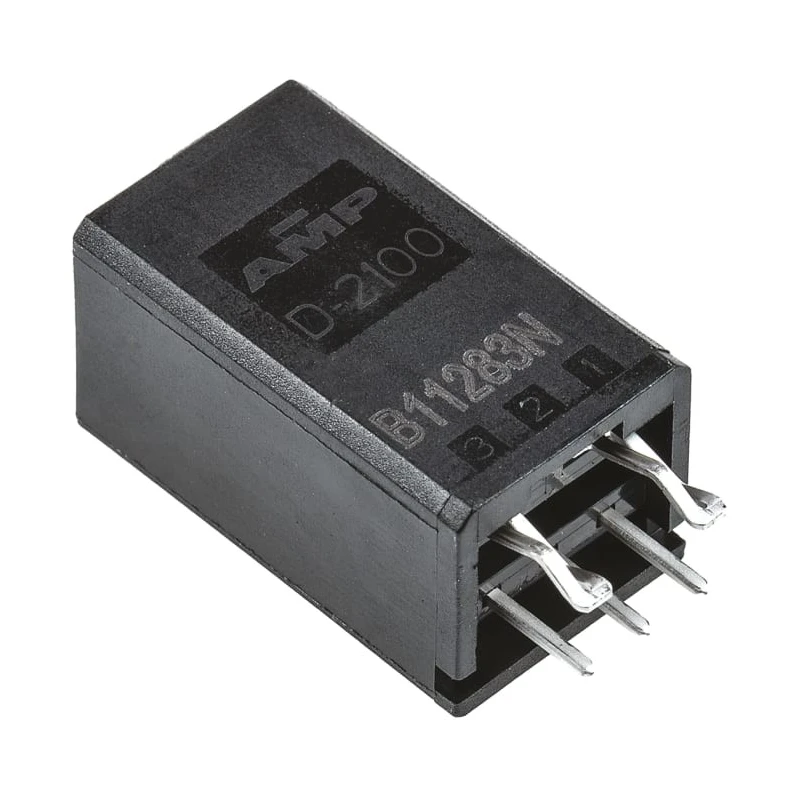

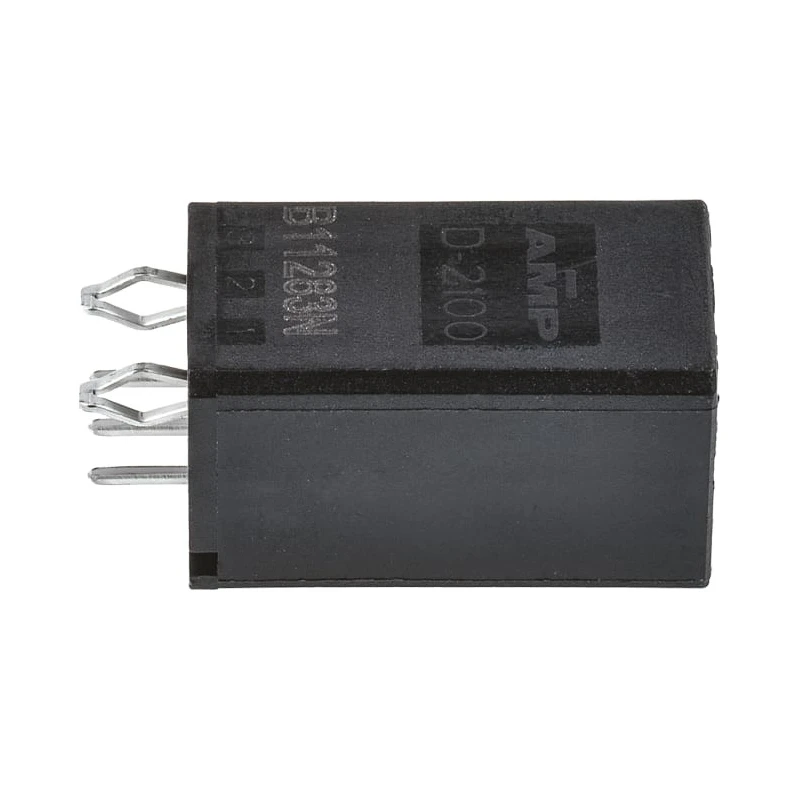

TE Connectivity Dynamic 2000 Series Straight Through Hole PCB Header, 3 Contact 2.5 mm Pitch, 1 Row, Shrouded 1318123-2

TE Connectivity 1318123-2 Dynamic 2000 Series Straight Through Hole PCB Header provides a robust and precise wire-to-board connection solution with 3 copper alloy contacts arranged in a single straight row at a 2.5 mm pitch. Its shrouded housing, made from glass filled polyester, ensures resistant mechanical protection and flame retardance, making it ideal for demanding electronic and industrial applications.

Designed primarily for signal transmission, the header is capable of handling up to 5 Amps of current and 250 Volts, conforming well to most PCB electrical demands. The contact tabs are plated with gold to maintain excellent conductivity and resist corrosion over time, while the solder termination ensures durable mounting via through-hole technology.

This model operates efficiently over a temperature range from -55°C to 105°C, enabling use within harsh industrial, manufacturing, or laboratory environments. The male gendered contacts support effective interconnection with compatible connectors, and the keying system helps to avoid connection errors and potential damage.

The Dynamic 2000 Series includes an enhanced Tin plated retention leg for increased stability on the PCB, with recommended PCB thickness of 1.6 mm to achieve mechanical rigidity during assembly and operation. These connectors are commonly employed in industrial control systems, electronic component manufacturing, and power distribution contexts.

This PCB header features a single row with shrouded design for secure mating. Constructed of glass filled polyester housing ensuring durability and flame resistance. The contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion protection.

Rated for 5 A current and up to 250 V voltage, suitable for various signal applications. It supports through-hole mounting and solder termination type for stable PCB attachment. Designed to operate across a temperature range of -55°C to 105°C.

The male contact gender facilitates straightforward insertion in mating components. Incorporates a keying system to prevent mis-mating, improving assembly reliability. Recommended PCB thickness is 1.6 mm for optimal performance and mechanical stability.
