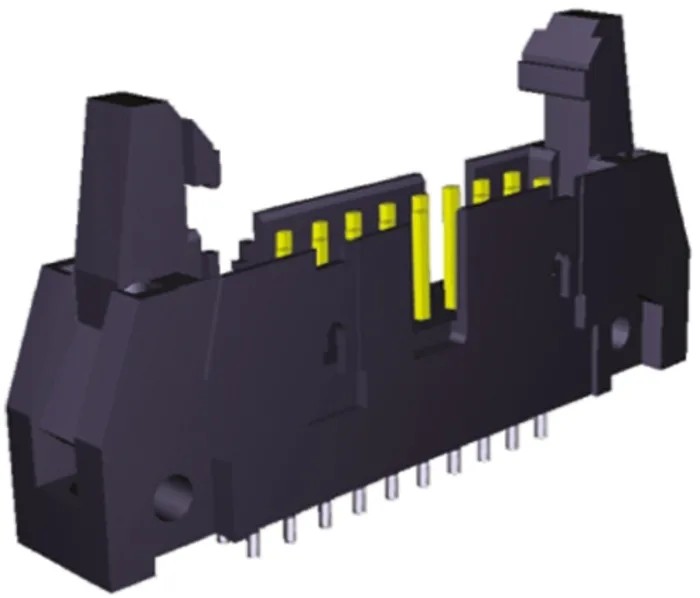

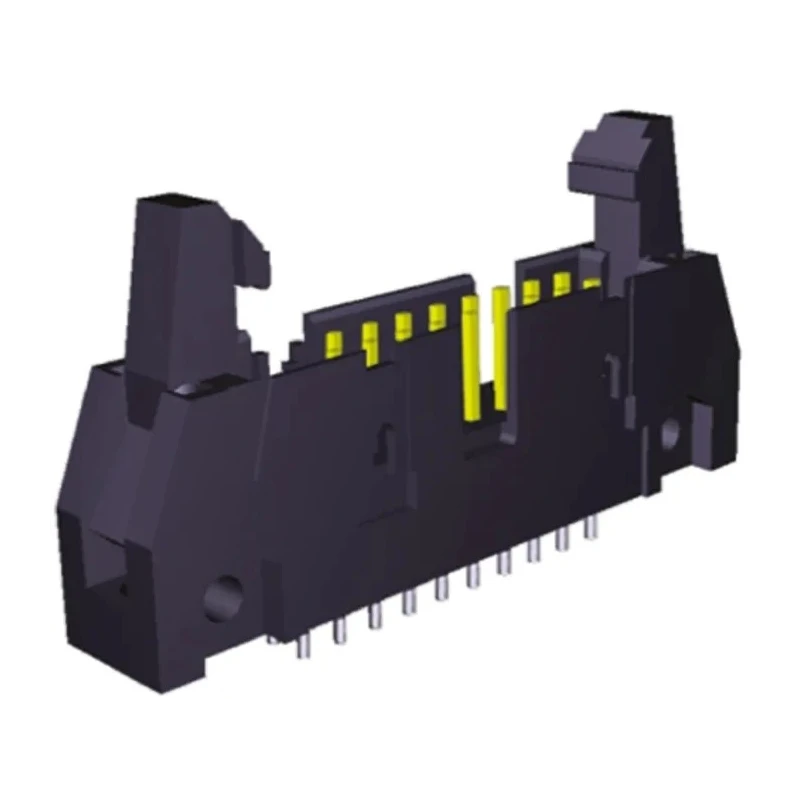

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499910-1

TE Connectivity 5499910-1 AMP-LATCH Series Straight Through Hole PCB Header is a precision-engineered connector designed to provide secure and reliable wire-to-board connections in electronics applications. This model features a 10 contact configuration arranged in two rows, with a 2.54 mm pitch that meets standard PCB header dimensions. Its shrouded design and straight orientation ensure protection for the contacts and proper mating with compatible connectors.

The housing is made of robust thermoplastic material, offering excellent electrical insulation and mechanical durability essential for demanding industrial and commercial use cases. The male contacts are constructed from brass and plated with gold to enhance conductivity, resist corrosion, and ensure long-term performance.

Rated for a voltage of 250 V and a current of 1 A, this connector supports a wide temperature range from -65°C to 105°C, making it suitable for harsh environmental conditions. The through-hole mount and solder termination type secure the connector firmly onto the PCB, ensuring mechanical stability and reliable electrical connections.

The AMP-LATCH series connectors incorporate universal ejection style latches, enabling easy connection and disconnection from IDC ribbon cable receptacles without compromising connection security. Both short and long latch options are available depending on application requirements, including compatibility with strain relief on mating connectors.

These PCB Headers are widely applied across sectors such as computing, medical instrumentation, networking equipment, industrial control systems, appliances, and electrical testing devices. Their versatile design caters to various business and industrial electronics that require dependable wire-to-board interconnect solutions.

Features AMP-LATCH universal ejection style for reliable connector engagement. Comprises 10 male contacts in a shrouded, 2-row straight orientation. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.

Thermoplastic housing material offers strong insulation and mechanical protection. Designed for 250 V operation with a 1 A current rating. Through-hole mount type facilitates secure PCB attachment via solder termination.

Supports a wide operating temperature range from -65°C to 105°C for versatile use. Suitable for industrial, medical, networking, and business equipment applications. Provides dual polarization and ejector latch options for secure and easy cable connections.
