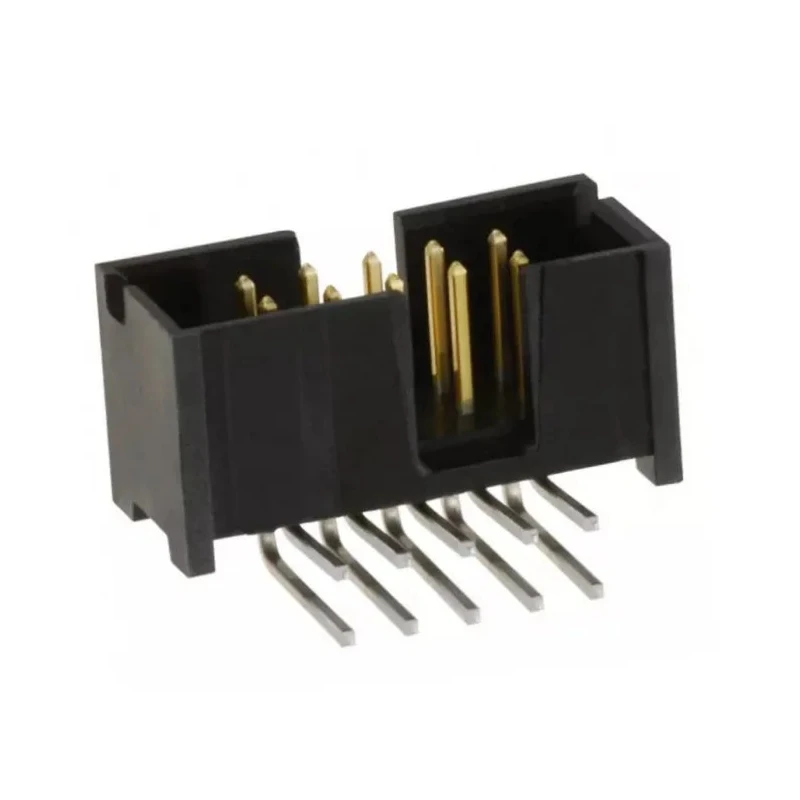

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103311-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9725Brand: TE ConnectivityManufacturers Part No.: 5103311-1Distrelec Article No.: 30332930 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The header features a low profile design for compact PCB layouts.
- It includes centre and dual polarization slots for accurate mating with IDC ribbon cable connectors.
- Housings are constructed from flame retardant 94V-0 thermoplastic certified material.
- Board standoffs facilitate excess flux removal from the PCB during soldering.
- Gold-plated copper alloy contacts provide high conductivity and corrosion resistance.
- Kinked solder tails ensure secure through hole connection to PCB.
- Operating temperature ranges from -55°C to 105°C, suitable for demanding industrial environments.
- Right angle orientation enables optimal PCB component placement.
Product Description
TE Connectivity 5103311-1 AMP-LATCH Series right angle through hole PCB header provides a reliable wire-to-board connector solution engineered for industrial and commercial electronic assemblies.
This 10-contact, 2-row header incorporates a 2.54 mm pitch and shrouded design which improves connection security and prevents misalignment during mating. The body uses flame retardant thermoplastic rated 94V-0 ensuring fire safety compliance in electronic equipment.
Designed with centre and dual polarization slots, the header guarantees accurate orientation and mating with IDC ribbon cable assemblies while kinked solder tails secure the PCB mounting by providing robust mechanical and electrical connections.
Operating in a broad temperature range from -55°C to 105°C, this connector withstands harsh industrial conditions. Gold-plated copper alloy contacts maximize signal integrity and corrosion resistance.
The right angle orientation optimizes PCB layouts, making it suitable for business equipment, medical devices, storage systems, networking hardware, industrial controls, appliances, and electrical testing instruments.
The header includes board standoffs for efficient flux removal during assembly. Its low profile design reduces overall component height on PCBs. Rated for 1 amp current per contact for low power applications. Male contact gender and shrouded feature enhance durability and safety.
Suitable for through hole mounting ensuring strong mechanical retention. Its technical features make it an excellent choice for diverse electronics industry segments requiring dependable wire-to-board connections.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, which is standard for many electronic applications.
This model can operate at a maximum temperature of 105°C, making it suitable for demanding industrial environments.
The header features 10 contacts, allowing for multiple connections in a compact design.
This connector is designed for through hole mounting, ensuring strong mechanical retention on the PCB.
The housing is constructed from flame retardant thermoplastic rated 94V-0, ensuring fire safety compliance.
This connector is rated for 1 amp current per contact, suitable for low power applications.
The termination type for this header is solder, which is common for reliable electrical connections.
This model features a right angle orientation, which optimizes PCB layouts and component placement.
The contacts are made from gold-plated copper alloy, which provides high conductivity and corrosion resistance.
Yes, it includes centre and dual polarization slots to guarantee accurate orientation and mating with IDC ribbon cable assemblies.
The specific dimensions are not provided, but it features a low profile design to reduce overall component height on PCBs.
This PCB header is manufactured in India, ensuring compliance with local production standards.
