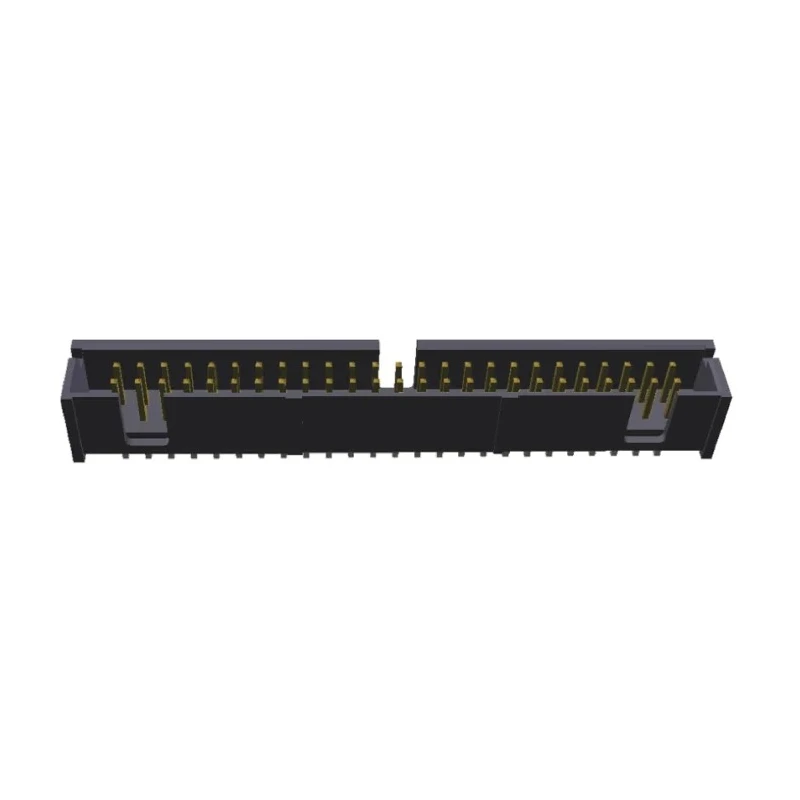

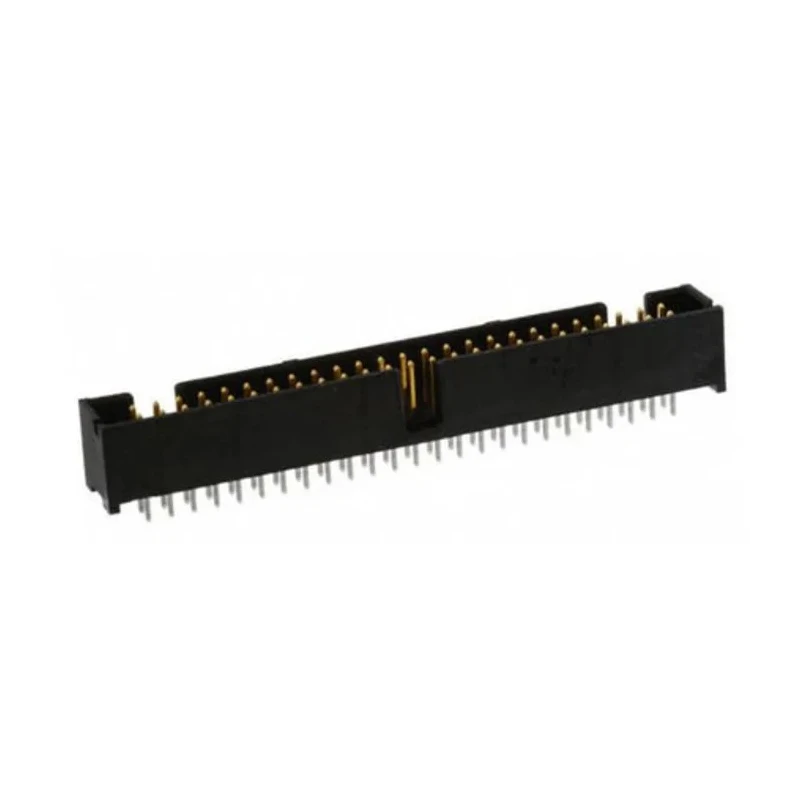

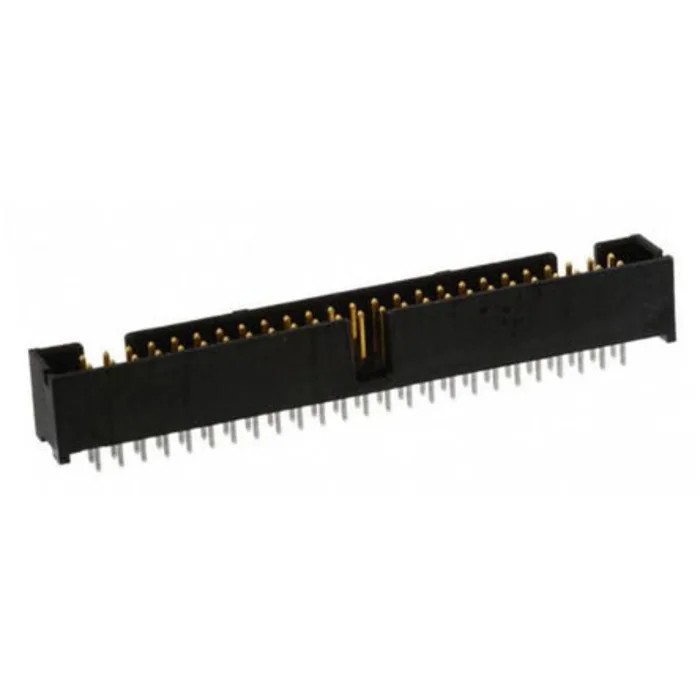

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contact, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contact, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0

Name: TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contact, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0
Brand: TE Connectivity
SKU: 358385
Price: 9.13 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	AMP-LATCH
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	718-8857PBrand: TE ConnectivityManufacturers Part No.: 1-103309-0
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector features a low profile design with centre and dual polarization slots for precise mating.
Housings are made from flame retardant 94V-0 rated thermoplastic ensuring durability and safety.
Board standoffs allow easy removal of excess flux from the PCB during assembly.
Contact material is copper alloy with gold plating to ensure corrosion resistance and conductivity.
Kinked solder tails provide secure through hole mounting on PCB.
Suitable for applications in PCs, business equipment, medical devices, networking, industrial controls, and electrical testing.
Operates reliably between -65°C to 105°C operating temperature range.
Designed with male contact gender and wire-to-board system for secure connections.

Product Description

TE Connectivity 1-103309-0 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality connector designed for reliable electrical connections in diverse electronic applications. It features 50 male contacts arranged in 2 rows with a 2.54 mm pitch, facilitating precise and stable wire-to-board interfacing.

The connector housing is manufactured from flame retardant 94V-0 rated thermoplastic, providing excellent fire safety standards and mechanical durability. Dual and centre polarization slots enhance mating accuracy with matching IDC ribbon cable connectors, minimizing insertion errors.

Enhanced with board standoffs, the design allows excess flux to be removed from the PCB surface facilitating cleaner solder joints. The contact pins are crafted from copper alloy with gold plating for optimal electrical conductivity and resistance to corrosion over long-term usage.

The termination utilizes kinked solder tails for firm through hole mounting, ensuring robust mechanical retention under vibration and thermal cycling. This connector operates reliably in temperature ranges from -65°C to 105°C, allowing use in harsh environmental conditions.

Ideal for industrial, medical, networking, business equipment, and electronic testing environments, this PCB header enhances assembly efficiency and connection integrity. The connector features a low profile design with centre and dual polarization slots for precise mating.

Housings are made from flame retardant 94V-0 rated thermoplastic ensuring durability and safety. Board standoffs allow easy removal of excess flux from the PCB during assembly. Contact material is copper alloy with gold plating to ensure corrosion resistance and conductivity.

Kinked solder tails provide secure through hole mounting on PCB. Suitable for applications in PCs, business equipment, medical devices, networking, industrial controls, and electrical testing. Operates reliably between -65°C to 105°C operating temperature range.

Designed with male contact gender and wire-to-board system for secure connections. Explore EnvMart's comprehensive selection of PCB Headers and Connectors for electronic and industrial applications to enhance your product assembly and connectivity solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features 50 male contacts arranged in 2 rows with a 2.54 mm pitch, facilitating precise wire-to-board interfacing.

It operates reliably in a temperature range from -65°C to 105°C, making it suitable for harsh environmental conditions.

The housing is made from flame retardant 94V-0 rated thermoplastic, while the contact material is copper alloy with gold plating for corrosion resistance and conductivity.

It utilizes a through hole mounting method with kinked solder tails for secure attachment to the PCB.

This unit is designed as a wire-to-board connector system, ensuring secure connections.

Yes, it includes dual and centre polarization slots which enhance mating accuracy and minimize insertion errors with matching connectors.

It has a current rating of 1A, suitable for various electronic applications.

The board standoffs allow for the easy removal of excess flux from the PCB surface during assembly, facilitating cleaner solder joints.

It is suitable for applications in PCs, business equipment, medical devices, networking, industrial controls, and electrical testing.

This model has a straight orientation, making it easy to integrate into various designs.

The country of origin for this connector is India.

The contacts are plated with gold, which helps ensure optimal electrical conductivity and resistance to corrosion.
