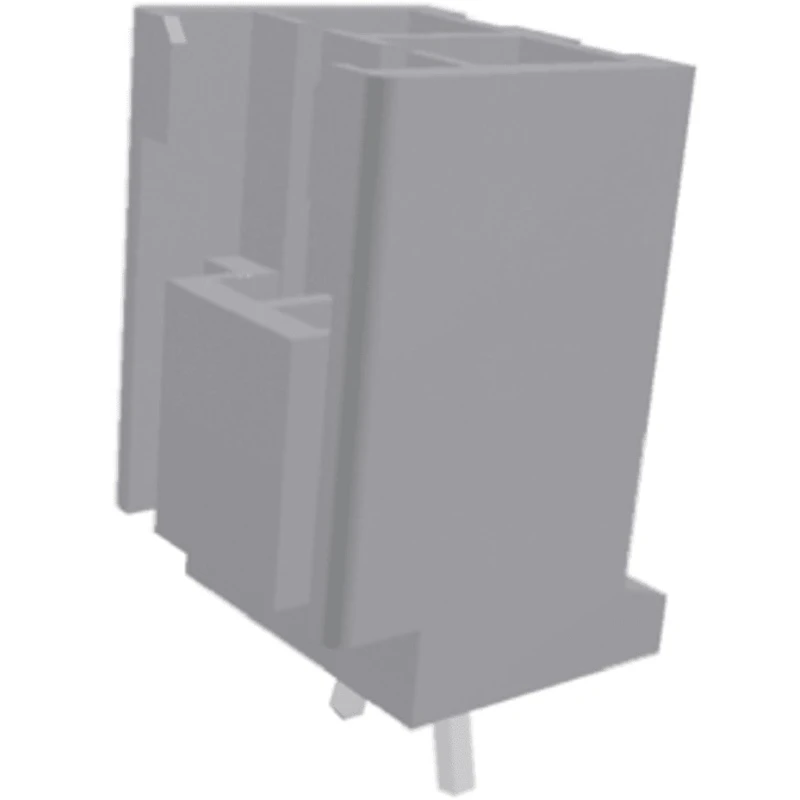

TE Connectivity AMP Universal Power Series Straight Through Hole PCB Header 3 Contacts 3.96 mm Pitch 1 Row 176976-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | 176976-1 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Nylon |
| Contact Material | Brass |
| Series | AMP Universal Power |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-9892Brand: TE ConnectivityManufacturers Part No.: 176976-1 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 3 male brass contacts with tin plating for reliable conductivity.
- Designed with a 3.96 mm pitch and single row for standard spacing.
- Constructed with glass-filled nylon housing ensuring durability and electrical insulation.
- Supports through-hole PCB mounting for strong mechanical bonding.
- Operates efficiently within temperature range -65°C to 105°C for various environments.
- Rated for 12A current and 600V voltage for power applications.
- Shrouded design and latching polarization provide secure mating and prevent misconnection.
- Solder termination type facilitates easy assembly in manufacturing.
Product Description
TE Connectivity 176976-1 AMP Universal Power Series Straight Through Hole PCB Header is a robust wire-to-board connector designed with 3 male contacts arranged in a single row with an industry-standard 3.96 mm pitch. Its glass-filled nylon housing offers excellent durability and insulation, while tin-plated brass contacts ensure reliable electrical performance. This PCB header supports through-hole mounting, providing strong mechanical retention on printed circuit boards.
Rated for 12A current and 600V operating voltage, the connector performs reliably in demanding conditions with an operating temperature range from -65°C to 105°C. The shrouded design includes latching and polarization features, ensuring secure mating and accurate connection to Universal Power plug housings. The solder termination type enables straightforward assembly during manufacturing processes.
This product is optimal for industrial electronic systems, power connector assemblies, and control panel applications. Its compliant design to TE Connectivity standards assures quality and compatibility.
Package contents include 1 piece of PCB header connector model 176976-1 from TE Connectivity AMP Universal Power Series. Features 3 male brass contacts with tin plating for reliable conductivity. Designed with a 3.96 mm pitch and single row for standard spacing.
Constructed with glass-filled nylon housing ensuring durability and electrical insulation. Supports through-hole PCB mounting for strong mechanical bonding. Operates efficiently within temperature range -65°C to 105°C for various environments.
Rated for 12A current and 600V voltage for power applications. Shrouded design and latching polarization provide secure mating and prevent misconnection. Solder termination type facilitates easy assembly in manufacturing.
Compatible with Universal Power plug housings for versatile connectivity solutions. Ideal for use in electronic, power connector assemblies, and control systems.
This TE Connectivity PCB Header 176976-1 is a reliable choice in the Electronics & Electricals sector, suitable for prototypes, production runs, and repair applications. Explore related products and categories at EnvMart for further components and assembly solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 12A and a voltage of 600V, making it suitable for various power applications.
The contacts in this model are designed with a pitch of 3.96 mm, which is an industry-standard spacing for PCB headers.
The housing is made from glass-filled nylon, while the contacts are brass with tin plating, ensuring reliable electrical performance and durability.
This model features 3 male contacts arranged in a single row, designed for effective wire-to-board connections.
It operates efficiently within a temperature range of -65°C to 105°C, allowing it to function in various environmental conditions.
This PCB header utilizes a solder termination type, which facilitates easy assembly during manufacturing processes.
Yes, it is compatible with Universal Power plug housings, providing versatile connectivity solutions.
This model supports through-hole mounting, which provides strong mechanical retention on printed circuit boards.
The shrouded design along with latching polarization features ensures secure mating and prevents misconnection.
The country of origin for this PCB header is India.
This model is part of the AMP Universal Power Series by TE Connectivity.
This PCB header is designed with a single row of contacts, making it suitable for applications requiring standard spacing.
