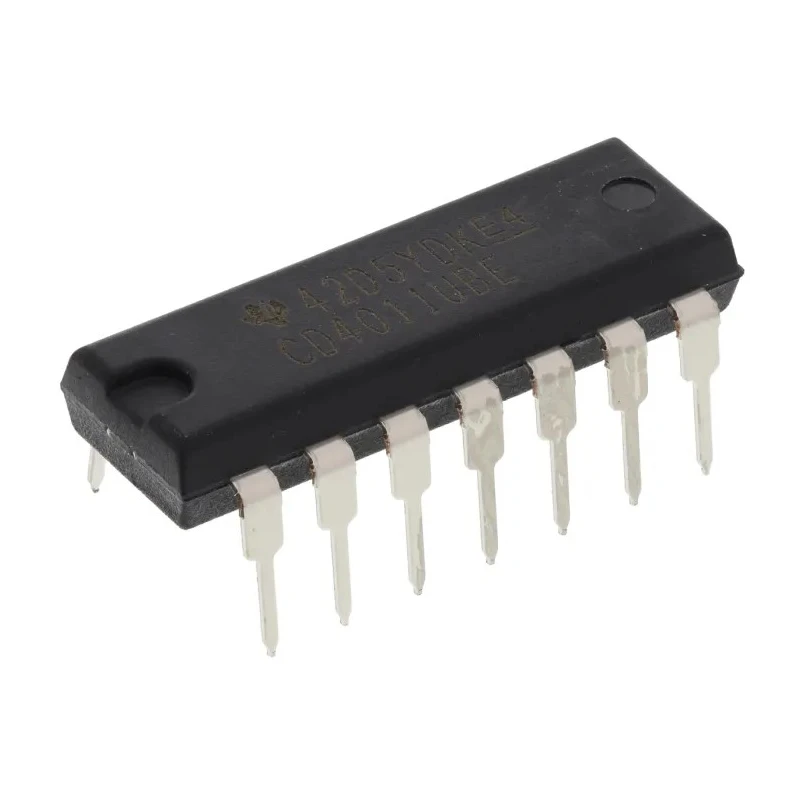

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP CD4011UBE

Texas Instruments CD4011UBE is a 14-pin PDIP package 4 2-Input NAND Logic Gate suitable for through-hole mounting on printed circuit boards. This device is a member of the 4000 CMOS logic family, featuring four independent NAND gates with two inputs each, providing essential logical operations in digital circuits.

The logic gate operates over a wide supply voltage range from 3 V up to 18 V, enabling its use in various industrial and commercial electronic applications. It supports robust operation within a temperature range from -55°C to 125°C, making it reliable in harsh environments and extended operating conditions.

The maximum propagation delay at a load capacitance of CL is 50 nanoseconds, delivering efficient switching speeds suitable for moderate frequency circuits. The device outputs can source or sink currents up to ±4.2 mA, maintaining signal integrity in connected systems. The inputs are of CMOS type without Schmitt trigger capability, ensuring standard digital logic input behavior.

Commonly used in logic circuits, digital computing, control systems, and signal processing, the CD4011UBE is essential for industrial, laboratory, and manufacturing applications where NAND gate logic functions are required. The 14-pin PDIP packaging allows for straightforward insertion and replacement, facilitating maintenance and upgrades.

The device features four NAND gates with two inputs each. It belongs to the 4000 CMOS logic family with CMOS input type. Operating voltage ranges from 3 V to 18 V for versatile applications. Operation temperature varies from -55°C to 125°C ensuring robust performance.

Maximum propagation delay time is 50 ns at CL. The package type is PDIP with 14 pins facilitating easy integration. The gate does not include Schmitt trigger inputs. Maximum output currents are ±4.2 mA for high and low levels respectively.

Ideal for industrial electronic and logic circuit applications requiring reliable NAND gate functions. Explore more Logic Gate and semiconductor products from Texas Instruments on EnvMart for your industrial and electronic design needs.
