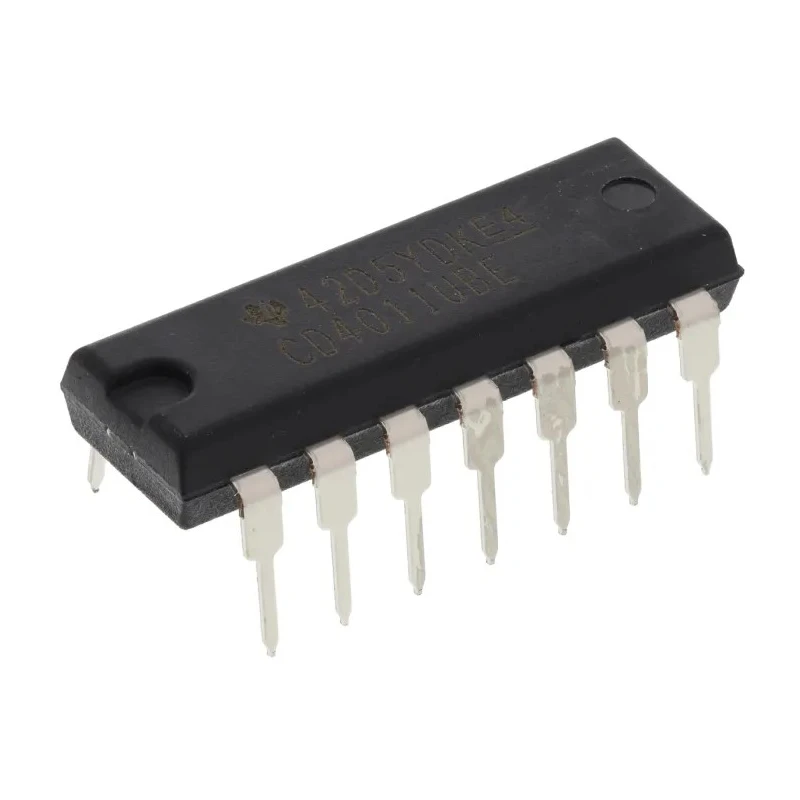

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP CD4011UBE

Texas Instruments CD4011UBE 4 2-Input NAND Logic Gate in a 14-Pin PDIP package offers reliable CMOS logic operations suitable for various industrial and electronic applications. Its wide operating voltage range from 3V to 18V allows flexible usage across diverse power conditions.

This logic gate IC is through-hole mounted, providing robust mechanical connection for printed circuit boards and sustaining industrial reliability. The device includes 4 independent NAND gates, each having 2 inputs, making it effective for logical processing tasks.

The CD4011UBE features a fast maximum propagation delay time of 50 nanoseconds, supporting high-speed switching needs. Its operating temperature range spans from -55°C to 125°C, ensuring stable performance under extreme environmental conditions commonly found in industrial, automotive, and electronic manufacturing settings.

Designed within the 4000 series CMOS logic family, this device ensures compatibility with other 4000 family components for integrated circuit design. The IC offers maximum high and low-level output currents of -4.2mA and 4.2mA respectively, enabling efficient signal driving.

Operates within a wide voltage range of 3V to 18V for versatile applications. Through-hole mount type suitable for robust PCB assembly. Contains 4 independent NAND gates with 2 inputs each. Maximum propagation delay time of 50ns ensuring fast switching.

Operating temperature range from -55°C to 125°C for reliability under harsh conditions. Low supply current characteristic for efficient power consumption. Offers maximum high level output current of -4.2mA and maximum low level output current of 4.2mA.

Constructed in a standard 14-pin PDIP package measuring 19.3mm in length and 4.57mm in height. Compatible with 4000 series CMOS logic family enhancing integration with similar components.

This Texas Instruments logic gate IC is ideal for industrial, laboratory, electronic design, manufacturing, and automotive applications where dependable, high-speed digital logic functions are required. Its robust construction and wide voltage and temperature ranges ensure adaptability to diverse operational environments.

EnvMart offers this quality component as part of its extensive semiconductor and logic ICs portfolio, enabling engineers and technicians to source dependable Logic Gates for their circuit designs and projects.
