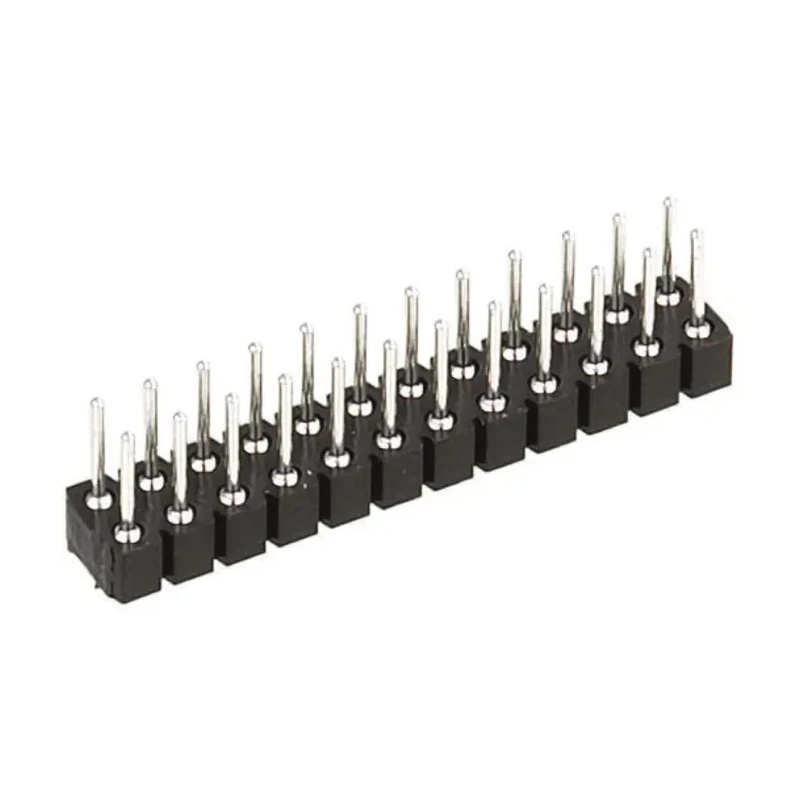

Preci-Dip 802 Series Straight Surface Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 802-80-012-30-480101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 802 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This pin header supports a current rating of 3A suitable for moderate power applications.
- Constructed with brass contact material plated with tin for reliable conductivity and corrosion resistance.
- Housing is made from fibreglass reinforced polyethylene terephthalate ensuring durability and thermal stability.
- Designed with a straight orientation and unshrouded contact gender male configuration for easy soldering connections.
- Operates efficiently in extreme temperatures ranging from -55°C to 125°C.
- Rated for voltage up to 150V, ideal for various electronic assemblies.
Product Description
Preci-Dip 802-80-012-30-480101 series straight surface pin header features 12 male contacts arranged in 2 rows, with a 2.54 mm pitch designed for surface mount applications. The connector uses brass contacts plated with tin to provide excellent electrical conductivity and resistance to oxidation. Its housing is manufactured from fibreglass reinforced polyethylene terephthalate, a robust material capable of withstanding demanding industrial environments.
This unshrouded header is designed for efficient solder termination and features a straight orientation that allows easy integration into PCB layouts. The connector supports a continuous current rating of 3 amperes and can tolerate voltage up to 150 volts, suitable for a variety of electronic power and signal connections.
Operating over a temperature range from -55°C to +125°C, this header is reliable in harsh environmental conditions encountered in industrial, laboratory, and manufacturing settings. Preci-Dip's 802 series complies with material standards ensuring high durability although it does not carry specific international certifications.
12 male contacts with 2-row layout and 2.54 mm pitch for standard PCB interfacing. Brass contact material with tin plating for excellent electrical performance. Fibreglass reinforced polyethylene terephthalate housing ensures strength and thermal resistance.
Surface mount type designed for solder termination in PCB assembly. Wide operating temperature range from -55°C to 125°C. Unshrouded design allows flexible connection configurations. Voltage rating of 150V suitable for power and signal applications on PCB.
Compact and reliable connector suitable for industrial, electronic component manufacturing, and assembly testing purposes.
Preci-Dip’s 802 series pin headers provide versatile and robust interconnect solutions for electronic circuit boards. Their ease of installation and reliable electrical characteristics make them highly suitable for electronic manufacturing, power connectors, and prototype developments.
Explore more options within the PCB Headers category and discover other solutions by Preci-Dip on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 3 amperes, making it suitable for moderate power applications.
The pin header is rated for a maximum voltage of 150 volts, suitable for various electronic power and signal connections.
The contacts are arranged with a pitch of 2.54 mm, which is standard for PCB interfacing.
It features brass contacts plated with tin for excellent electrical conductivity, while the housing is made from fibreglass reinforced polyethylene terephthalate.
This model operates efficiently within a temperature range from -55°C to +125°C, making it reliable in harsh environmental conditions.
It has a total of 12 male contacts arranged in 2 rows.
The connector uses a solder termination type, designed for surface mount applications on PCBs.
This pin header features an unshrouded design, allowing for flexible connection configurations.
The orientation of this model is straight, facilitating easy integration into PCB layouts.
The Preci-Dip 802 Series pin header is manufactured in Switzerland.
It is suitable for various electronic assemblies, including power connectors and prototype developments in industrial and laboratory settings.
The contact gender of this model is male, designed for standard PCB interfacing.
