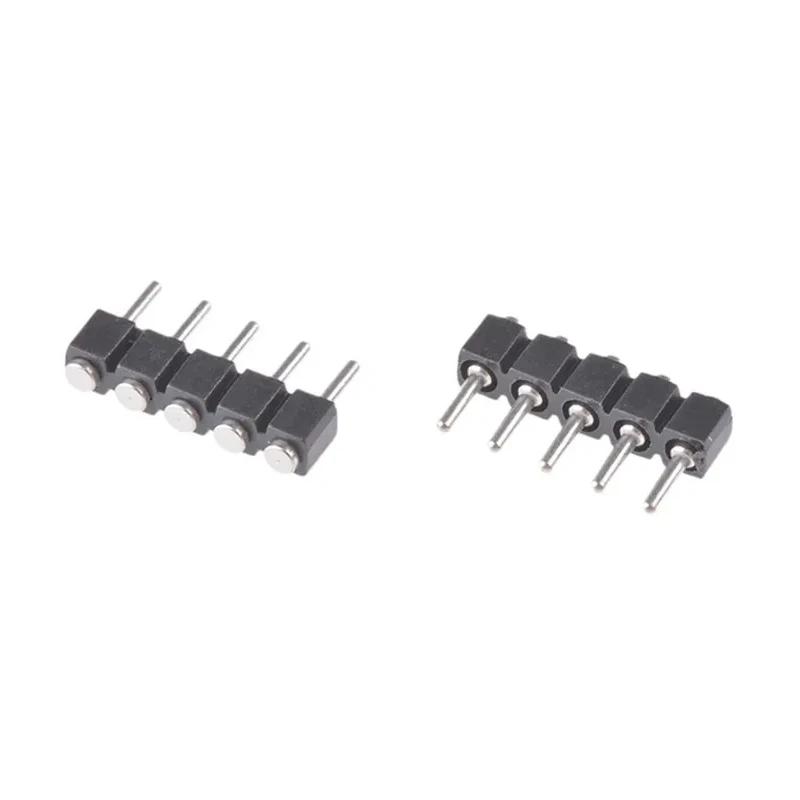

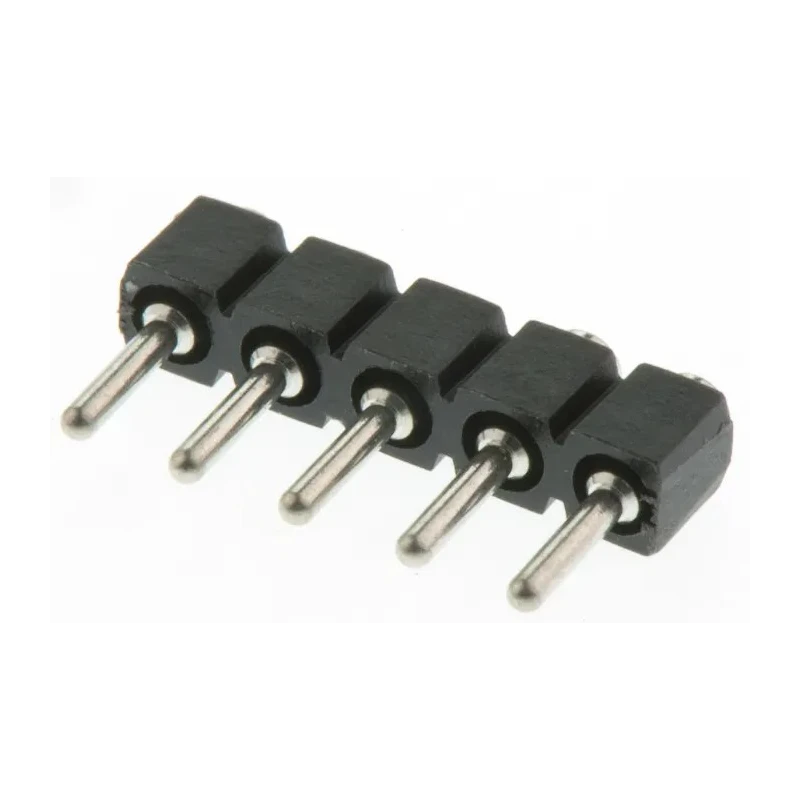

Preci-Dip 800 Series Straight Surface Pin Header 5 Contact(s) 2.54 mm Pitch 1 Row Unshrouded 800-80-005-30-480101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This pin header features a straight orientation with unshrouded male contacts.
- The contact material is brass with tin plating for corrosion resistance.
- Mounted via solder termination on PCB surface for secure connections.
- Constructed using fibreglass reinforced polyethylene terephthalate housing for durability.
- It supports an operating voltage of 150V and current rating of 3A.
- Compatible with temperatures ranging from -55°C to 125°C.
- Offers a row pitch of 2.54 mm matching industry standard spacing.
- Manufactured in Switzerland, ensuring quality and precision.
Product Description
Preci-Dip 800-80-005-30-480101 Straight Surface Pin Header is a precision PCB connector featuring 5 male contacts arranged in a single row with a standard 2.54 mm pitch. This connector is designed for surface mounting on printed circuit boards, providing a reliable interface for electronic circuits.
Constructed with a fibreglass reinforced polyethylene terephthalate housing, this pin header ensures robust mechanical strength and high insulation properties suitable for demanding industrial and electronic applications. The brass contacts are tin plated to protect against oxidation and ensure consistent electrical performance.
The connector is rated for a maximum current of 3 amperes at an operating voltage of 150 volts, making it suitable for a variety of power and signal transmission needs. It operates efficiently within a temperature range of -55°C to 125°C, allowing deployment in harsh environmental conditions commonly seen in industrial, manufacturing, and laboratory settings.
The unshrouded design allows easy access for mating with complementary connectors, while the straight orientation and solder termination type facilitate easy through-hole or surface mount PCB assembly processes. The 800 Series offers flexibility with various numbers of contact options and mounting styles for different design requirements.
This pin header has 5 male contacts in one row with 2.54 mm pitch. Contact material is brass with tin plating for durability and conductivity. Housing is made from fibreglass reinforced polyethylene terephthalate. Designed for surface mount with solder termination.
Operating temperature range is -55°C to 125°C. Maximum current rating of 3A and voltage rating of 150V. Manufactured in Switzerland to strict quality standards.
Ideal for applications in electronic assemblies, power connectors, signal transmission in industrial equipment, and PCB-based designs requiring reliable pin connections. This product is part of the Preci-Dip 800 Series, known for high-quality pin header connectors supporting industry standards.
Explore more in the PCB Headers category at EnvMart for premium Preci-Dip connectors and related products suited for your electronic assembly needs.
