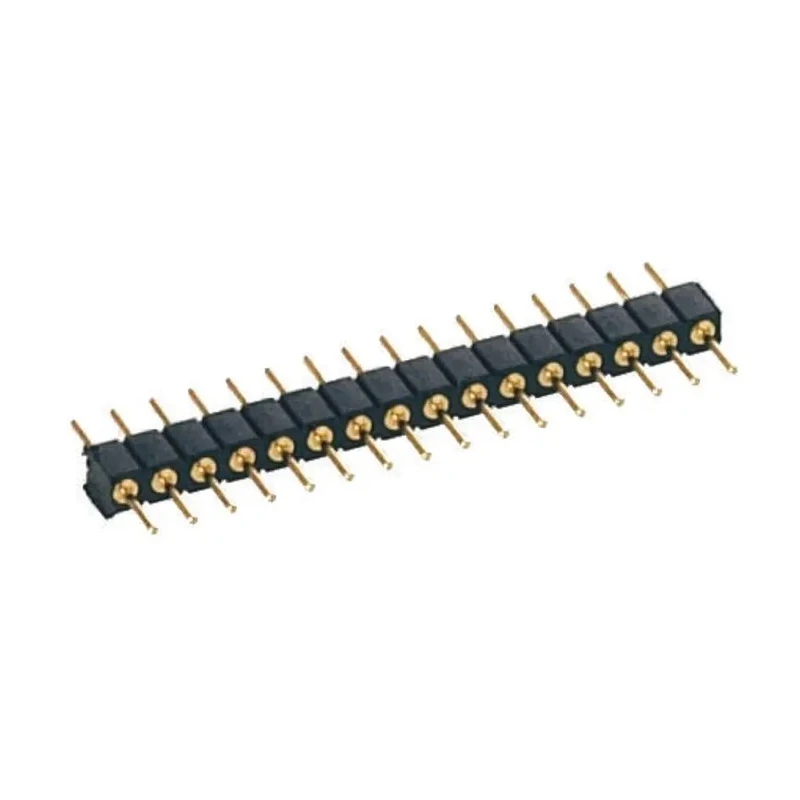

Preci-Dip 830 Series Straight Through Hole Pin Header, 9 Contacts, 2 mm Pitch, 1 Row, Unshrouded, 150V 830-80-009-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Designed for through-hole mounting on PCBs with straight orientation.
- Constructed with brass contacts plated with tin for reliable conductivity.
- Housing material is fibreglass reinforced polymer ensuring durability.
- Supports a current rating of 3A and voltage up to 150V.
- Operating temperature range from -55°C to 125°C for robust performance.
- Contact pin diameter is 0.47 mm with a tail length of 2.9 mm.
- Male contact gender with solder termination type for secure connections.
- Unshrouded pin header allows flexible connectivity options.
Product Description
Preci-Dip 830-80-009-10-001101 Straight Through Hole Pin Header is a highly reliable PCB connector designed for industrial and electronic assembly applications. Featuring 9 male brass contacts plated with tin, spaced at a 2 mm pitch, this unshrouded pin header ensures robust electrical connections. The fibreglass reinforced polymer housing provides enhanced mechanical strength and thermal resistance.
This 1-row header supports a continuous current of 3A and a voltage rating of 150V, making it suitable for a variety of power and signal transmission uses in manufacturing, automation, and water treatment electronics. It operates reliably within an extended temperature range from -55°C to 125°C, accommodating harsh environmental conditions.
The pins have a diameter of 0.47 mm and a tail length of 2.9 mm for effective solder tail through-hole mounting on printed circuit boards. The straight orientation and unshrouded design allow easy access for PCB assembly and testing processes.
This product is manufactured in Switzerland, featuring high-quality materials and craftsmanship. The pin header complies with UL 94V-0 standards for flammability, ensuring safety in industrial and laboratory electrical systems.
Through hole mount type with solder termination for durable PCB connections. Fibreglass reinforced polymer housing offers mechanical and thermal stability. Tin-plated brass contacts provide excellent electrical conductivity and corrosion resistance.
Operating temperature range from -55°C to 125°C suits diverse applications. Compatible with 2 mm pitch PCB designs and 1-row layouts. Unshrouded design facilitates flexible connector mating. Manufactured in Switzerland, ensuring high manufacturing standards.
Ideal for use in electronics manufacturing, automation, and related industrial applications. Explore our range of PCB Headers and connectors in the Electronics & Electricals category at EnvMart for more high-quality products tailored to your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 3A.
It has a maximum voltage rating of 150V.
The operating temperature range is from -55°C to 125°C.
The contacts are made of brass and plated with tin, while the housing is constructed from fibreglass reinforced polymer.
It features 9 male contacts.
The pitch is 2 mm.
It uses a solder termination type for secure connections.
The contact pin diameter is 0.47 mm.
The tail length of the pins is 2.9 mm.
It has a straight orientation for through-hole mounting.
This model is unshrouded, allowing flexible connectivity options.
It is manufactured in Switzerland, ensuring high manufacturing standards.
