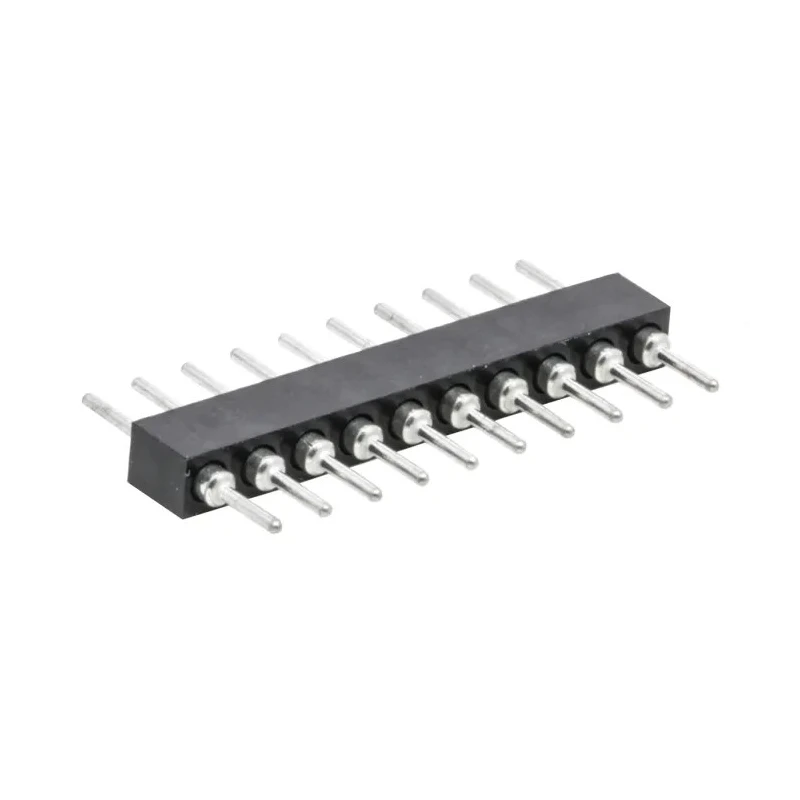

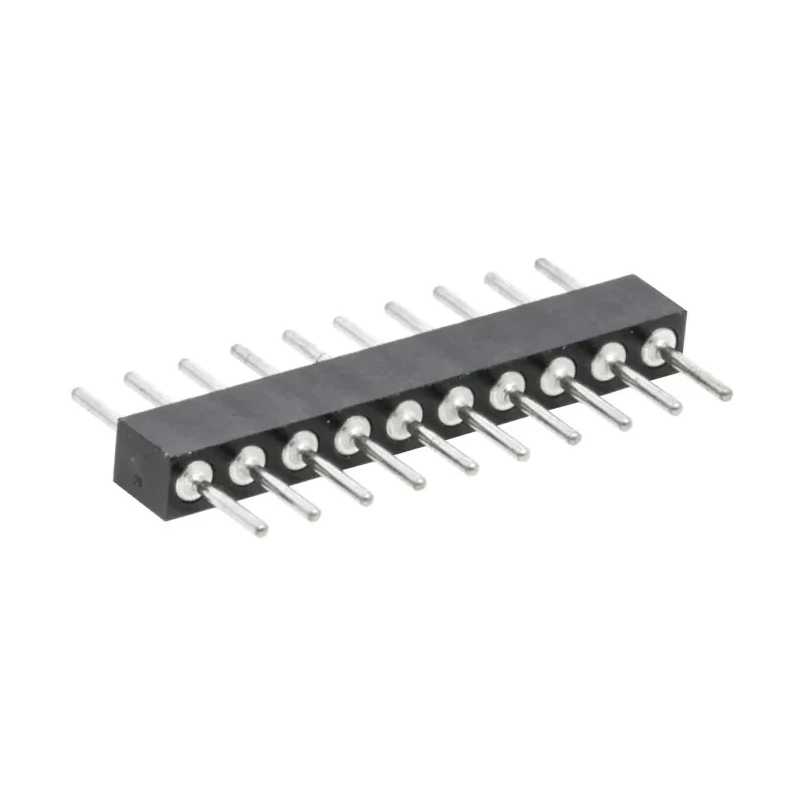

Preci-Dip 830 Series Straight Through Hole Pin Header, 10 Contacts, 2 mm Pitch, 1 Row, Unshrouded 830-80-010-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 10 male brass contacts plated with tin.
- Constructed with fibreglass reinforced polymer housing for durability.
- Designed for through-hole mounting with solder termination.
- Operates within temperature range -55°C to 125°C.
- Supports maximum voltage of 150V and current of 3A.
- Unshrouded straight orientation for easy PCB connection.
- Swiss manufactured ensuring high-quality standards.
- Compliant with UL 94V-0 standard for safety.
Product Description
Preci-Dip 830-80-010-10-001101 Straight Through Hole Pin Header is a high-quality PCB connector designed for electronic applications requiring reliable connection with 10 male contacts spaced at 2 mm pitch in a single row. It features a fibreglass reinforced polymer housing that ensures mechanical stability and durability in various environments.
The pin header employs brass contacts with tin plating to provide excellent conductivity and corrosion resistance. It supports a maximum operating voltage of 150 V and a current rating of 3 A, suitable for low to moderate power electronic circuits.
This component is designed for through-hole mounting with solder terminations, facilitating secure and stable PCB connections. It operates within a broad temperature range from -55°C to 125°C, making it suitable for demanding industrial, commercial, and laboratory environments.
The unshrouded straight orientation allows flexibility in PCB layout and accessible soldering. Manufactured in Switzerland, this Preci-Dip series 830 pin header adheres to UL 94V-0 flame retardant standards, ensuring high safety and reliability. The contact tail length for through-hole soldering is 2.9 mm, providing firm mechanical and electrical bonds.
Applications include electronics manufacturing, prototype development, industrial automation, and any assembly requiring robust PCB connector interfaces. This product enhances production efficiency by offering standard pitch and reliable connection integrity.
Features 10 male brass contacts plated with tin. Constructed with fibreglass reinforced polymer housing for durability. Designed for through-hole mounting with solder termination. Operates within temperature range -55°C to 125°C.
Supports maximum voltage of 150V and current of 3A. Unshrouded straight orientation for easy PCB connection. Swiss manufactured ensuring high-quality standards. Compliant with UL 94V-0 standard for safety. Tail length is 2.9 mm for through-hole soldering.
Explore more PCB Headers and connectors on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage of 150V and a current rating of 3A, making it suitable for low to moderate power electronic circuits.
The contacts are spaced at a 2 mm pitch, which is standard for many PCB applications.
It features brass contacts plated with tin for conductivity and corrosion resistance, and the housing is made from fibreglass reinforced polymer for mechanical stability.
It operates within a temperature range of -55°C to 125°C, suitable for various industrial and commercial environments.
This pin header has 10 male contacts, arranged in a single row.
Yes, it is specifically designed for through-hole mounting with solder terminations, ensuring secure connections to PCBs.
The contact tail length for through-hole soldering is 2.9 mm, providing firm mechanical and electrical bonds.
It is compliant with the UL 94V-0 standard for flame retardancy, ensuring safety in its applications.
This pin header uses solder termination, which is common for securing connections on PCBs.
It has an unshrouded straight orientation, allowing for flexibility in PCB layout and accessible soldering.
This product is manufactured in Switzerland, ensuring adherence to high-quality standards.
It is suitable for electronics manufacturing, prototype development, and industrial automation applications.
