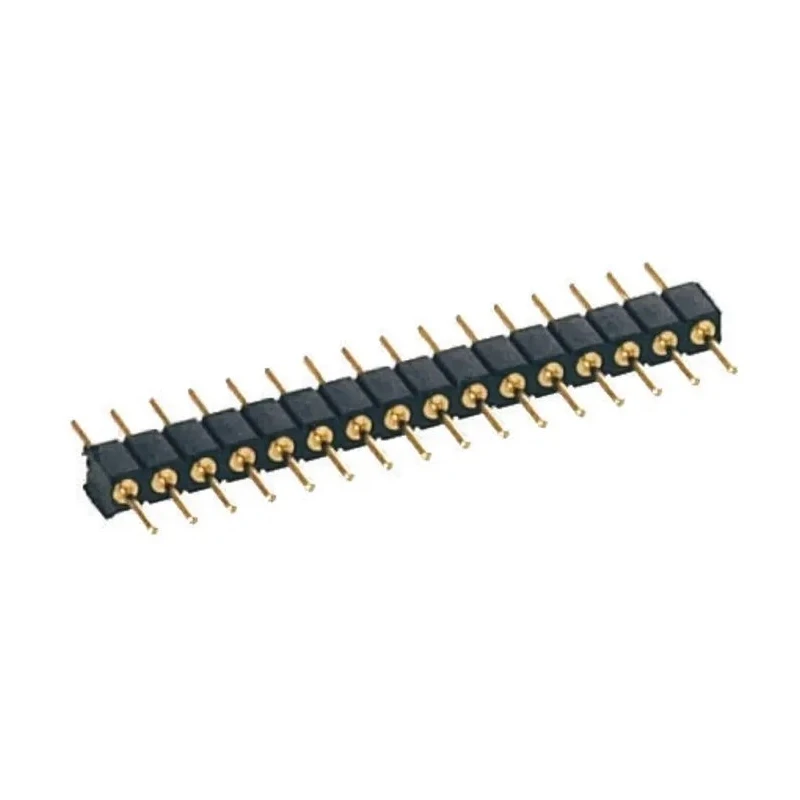

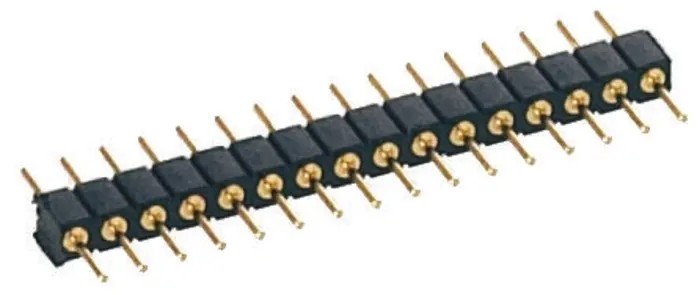

Preci-Dip 830 Series Straight Through Hole Pin Header 7 Contacts 2mm Pitch 1 Row Unshrouded 830-80-007-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Comprises 7 straight male contacts arranged in a single row.
- Features a 2 mm pitch spacing for precise PCB connection.
- Constructed with fibreglass reinforced polymer housing for durability.
- Contacts are made from brass with tin plating for corrosion resistance.
- Operates safely between -55°C and 125°C temperature range.
- Designed for solder termination and through hole mount type.
- Rated for 3 A current and 150 V maximum voltage.
- Manufactured in Switzerland ensuring high-quality standards.
Product Description
Preci-Dip 830-80-007-10-001101 is a high-quality PCB pin header designed with 7 straight male contacts arranged in a single row and a 2 mm pitch. This unshrouded pin header is intended for through hole mounting on electronic circuit boards, facilitating robust and reliable connections.
The housing is constructed from fibreglass reinforced polymer which provides excellent strength, durability, and resistance to environmental factors affecting electronic components. The contacts are crafted from brass material and plated with tin to ensure corrosion resistance and reliable electrical conductivity.
Operating within a wide temperature range from -55°C to 125°C, this pin header suits a variety of industrial and electronic applications requiring thermal resilience. It accepts a maximum current of 3 A and voltage rating up to 150 V, making it compatible with standard PCB power and signal transmission requirements.
The solder termination type ensures solid mechanical and electrical bonding to the PCB, while the male straight contact orientation supports straightforward component integration.
Produced by Preci-Dip in Switzerland, this pin header meets stringent quality and manufacturing standards. It is ideal for use in industrial, electronics manufacturing, power connectors assembly, telecommunications equipment, and general PCB interconnect solutions requiring reliable performance and packaging integrity.
Comprises 7 straight male contacts arranged in a single row. Features a 2 mm pitch spacing for precise PCB connection. Constructed with fibreglass reinforced polymer housing for durability. Contacts are made from brass with tin plating for corrosion resistance.
Operates safely between -55°C and 125°C temperature range. Designed for solder termination and through hole mount type. Rated for 3 A current and 150 V maximum voltage. Manufactured in Switzerland ensuring high-quality standards.
Browse our extensive range of PCB connectors and headers at EnvMart for compatible and complementary products tailored to your industrial and electronic assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 150 V.
This model is rated for a maximum current of 3 A.
The contacts are arranged with a pitch spacing of 2 mm.
The housing is made from fibreglass reinforced polymer, while the contacts are made from brass with tin plating for corrosion resistance.
It operates safely within a temperature range of -55°C to 125°C.
This model comprises 7 straight male contacts arranged in a single row.
It is designed for solder termination, ensuring solid mechanical and electrical bonding to the PCB.
This pin header is unshrouded, allowing for straightforward component integration.
It is designed for through hole mounting on electronic circuit boards.
This pin header is manufactured in Switzerland, ensuring high-quality standards.
The contact gender for this model is male.
This pin header belongs to the 830 series.
