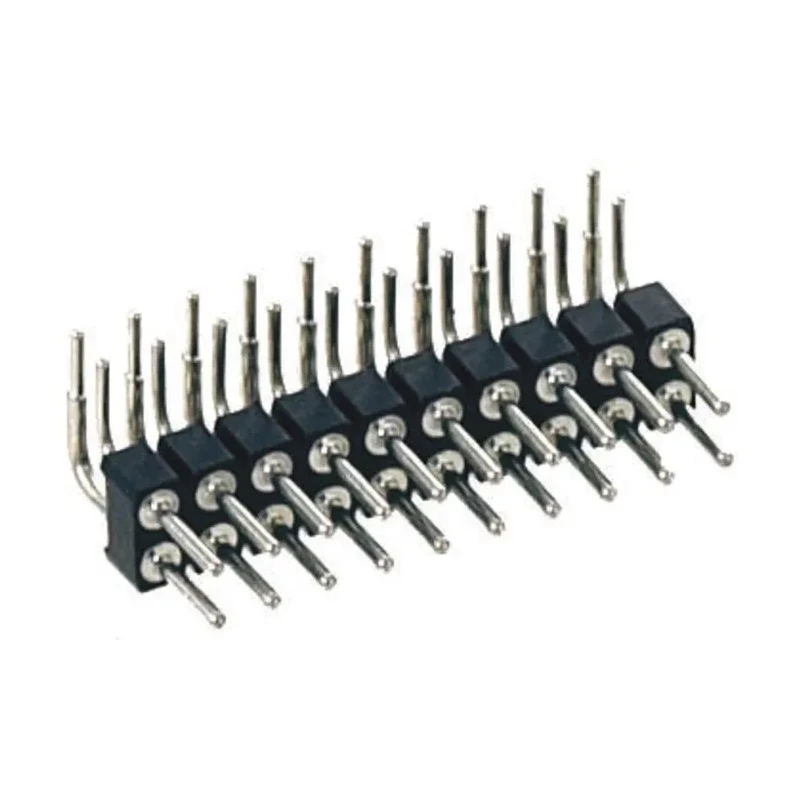

Preci-Dip 802 Series Right Angle Through Hole Pin Header, 18 Contacts, 2.54 mm Pitch, 2 Row Unshrouded 802-80-018-20-001101

Preci-Dip 802-80-018-20-001101 Right Angle Through Hole Pin Header is part of the 802 Series IC Pin Connectors offering high performance and durability for PCB connection tasks. Featuring 18 male contacts arranged in 2 rows at a standard 2.54 mm pitch, it supports a maximum current of 3A and voltage rating of 150V, making it suitable for a wide range of electronic and power connector applications.

The housing is made from fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and long-term reliability under demanding conditions. The unshrouded right angle design enables space-efficient PCB layout and easy soldering with a tail length of 3.2 mm.

Contacts are fabricated from brass material and plated with tin to ensure optimal electrical conductivity, corrosion resistance, and solderability. This connector boasts a broad operating temperature range from -55°C to 125°C, allowing use in industrial, laboratory, manufacturing, and commercial electronics environments.

The 802 Series connectors by Preci-Dip are widely used in embedded systems, control units, and power connectors where board-to-board or wire-to-board connections must be secure and reliable over time. This model offers through hole mounting for exceptional mechanical stability during operation.

Rated current: 3A. Pitch between contacts: 2.54 mm. Number of contacts: 18. Contact material: Brass with tin plating. Operating temperature: -55°C to 125°C. Mounting: Through hole, right angle orientation. Housing material: Fibreglass reinforced PET.
