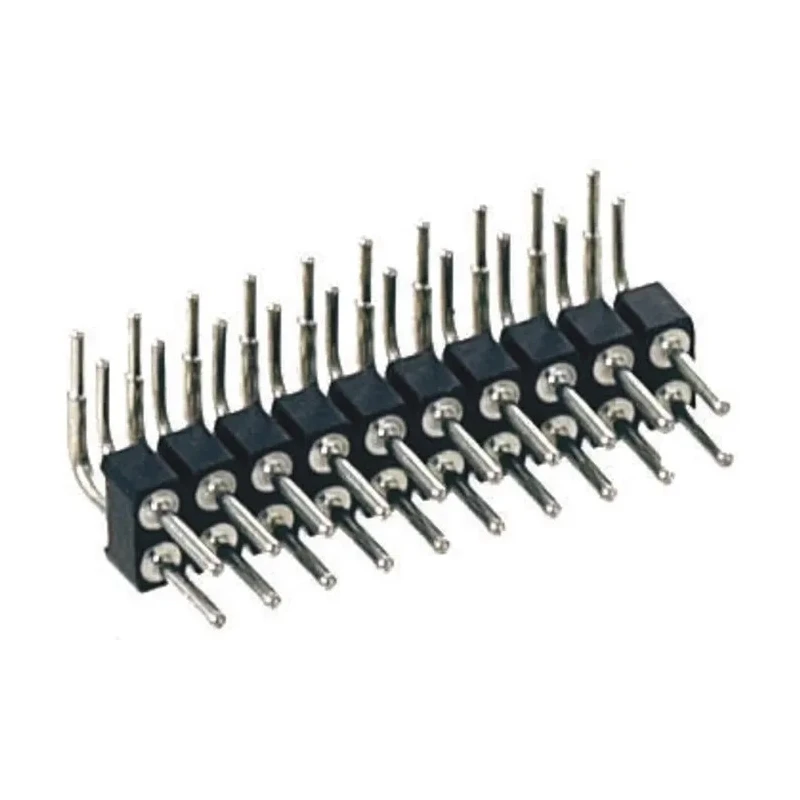

Preci-Dip 802 Series Right Angle Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 802-80-010-20-001101

Preci-Dip 802-80-010-20-001101 is a right angle through hole pin header designed for reliable PCB interconnections in electronics and industrial equipment. Featuring 10 brass contacts plated with tin, this connector ensures excellent conductivity and corrosion resistance. The dual-row, unshrouded design allows easy soldering with a 2.54 mm pitch between pins, making it ideal for compact and secure mounting on printed circuit boards.

The pin header is housed in fibreglass reinforced polyethylene terephthalate, a robust insulating material that withstands a wide temperature range from -55°C up to 125°C. Its 150V voltage rating and 3A current capacity make it suitable for various power delivery and signal applications in commercial, manufacturing, and electronic industries.

This 802 Series connector by Preci-Dip is manufactured in Switzerland, ensuring compliance with high-quality standards although no specific approvals or certifications are listed. It is primarily intended for use in PCB-mounted assembly processes where right angle orientation and through hole mounting improve assembly stability and electrical performance.

The product is unshrouded which permits flexible assembly and inspection, with male solder termination that facilitates strong mechanical retention and electrical contact integrity. This pin header series supports configurations from 2 to 24 contacts, with this particular model providing 10 contacts arranged in 2 rows for moderate complexity circuit designs.

The pin header features a 2-row design with unshrouded contacts for versatile mounting. Constructed with brass contacts plated in tin for superior conductivity and corrosion resistance. Mount type is through hole with solder termination ensuring secure mechanical and electrical connection.

Operating temperature range is from -55°C to 125°C, suitable for industrial and electronic applications. The housing is made from fibreglass reinforced polyethylene terephthalate for durability and insulation. Rated voltage is 150V and current capacity is 3A to accommodate moderate power requirements.

Designed and manufactured in Switzerland, ensuring quality and reliability.

Applications for this connector span industrial automation, electronic device manufacturing, instrumentation, and power distribution boards where dependable electrical connections with right angle orientation are required. Its robust construction and specifications suit harsh environments and extended operational cycles.
