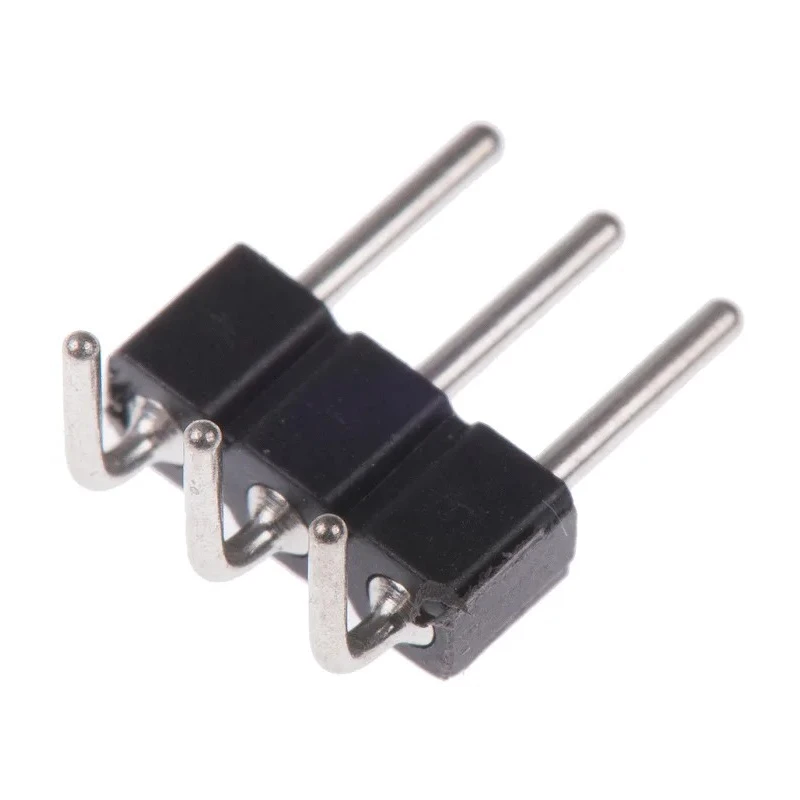

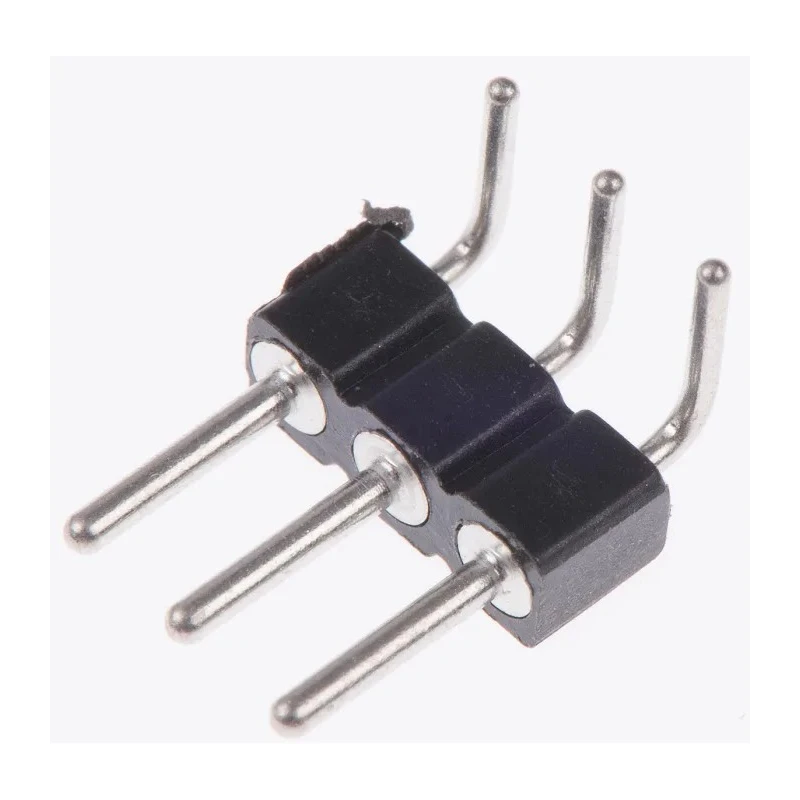

Preci-Dip 800 Series Right Angle Through Hole Pin Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-003-20-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with fibreglass reinforced polyethylene terephthalate housing for durability.
- Rated for 3A current and 150V voltage for reliable performance.
- Features brass contacts with tin plating for corrosion resistance.
- Designed for through hole mounting with a solder termination type.
- Operates efficiently in temperatures from -55°C to 125°C.
- Right angle orientation suitable for PCB applications requiring space optimization.
- Unshrouded male contact design for easy and secure connections.
Product Description
Preci-Dip 800-80-003-20-001101 Right Angle Through Hole Pin Header provides a high-quality connector solution for electronic PCB applications. Featuring a 3-contact configuration arranged in a single row with a 2.54 mm pitch, this unshrouded header allows straightforward integration into various circuit designs.
The header is housed in fibreglass reinforced polyethylene terephthalate material ensuring robust mechanical stability and electrical insulation. Brass contacts with tin plating provide excellent conductivity and resistance to corrosion, extending the connector's service life in demanding industrial environments.
Rated for up to 3 amps of current and a maximum voltage of 150 volts, this component meets the rigorous standards of electrical performance. It is designed for through hole mounting with solder terminations, offering reliable mechanical and electrical connections. The connectors operate within a wide temperature range from -55°C to 125°C, making them suitable for industrial, manufacturing, and electronic applications where thermal stability is critical.
The right angle orientation optimizes PCB layout by reducing board space and enabling better cable routing. The unshrouded design is ideal for straightforward soldering tasks and maintenance, facilitating quicker assembly and repair.
Fibreglass reinforced polyethylene terephthalate housing for durability and insulation. Brass contacts with tin plating for enhanced conductivity and corrosion resistance. Rated 3A current and 150V voltage for reliable electrical performance.
Through hole mount with solder termination ensures secure integration. Operates effectively between -55°C and 125°C temperature range. Right angle, unshrouded male contact design enhances PCB assembly flexibility.
These qualities make the Preci-Dip 800-80-003-20-001101 header a dependable choice for power connectors in electronics manufacturing, industrial automation, and instrumentation applications. Suitable for engineers and technicians designing and servicing electronic control systems requiring compact and reliable board connectors.
Explore more connectors and PCB headers in the Electronics & Electricals > Power Connectors > PCB Headers category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Preci-Dip 800 Series Right Angle Through Hole Pin Header is rated for a maximum current of 3A.
This model has a voltage rating of 150V, ensuring reliable electrical performance in various applications.
The contacts of this pin header are arranged with a pitch size of 2.54 mm.
The housing is made of fibreglass reinforced polyethylene terephthalate, while the contacts are made of brass with tin plating for corrosion resistance.
It operates efficiently within a temperature range of -55°C to 125°C, making it suitable for a variety of environments.
This connector is designed for through hole mounting with a solder termination type, ensuring secure integration into PCBs.
The pin header features a right angle orientation, which helps optimize PCB layout and space utilization.
This model has a configuration of 3 contacts arranged in a single row.
The Preci-Dip 800 Series pin header is unshrouded, allowing for easier soldering and maintenance.
This pin header is suitable for electronic PCB applications, including industrial automation and instrumentation.
The contact gender of this model is male, designed for secure connections in electronic assemblies.
The Preci-Dip 800 Series Right Angle Through Hole Pin Header is manufactured in Switzerland.
