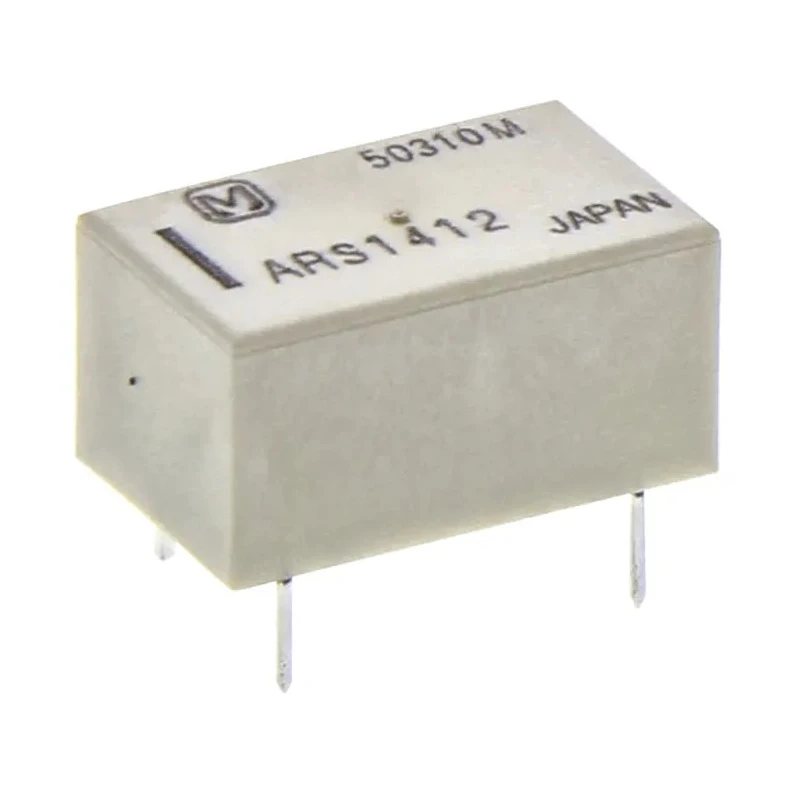

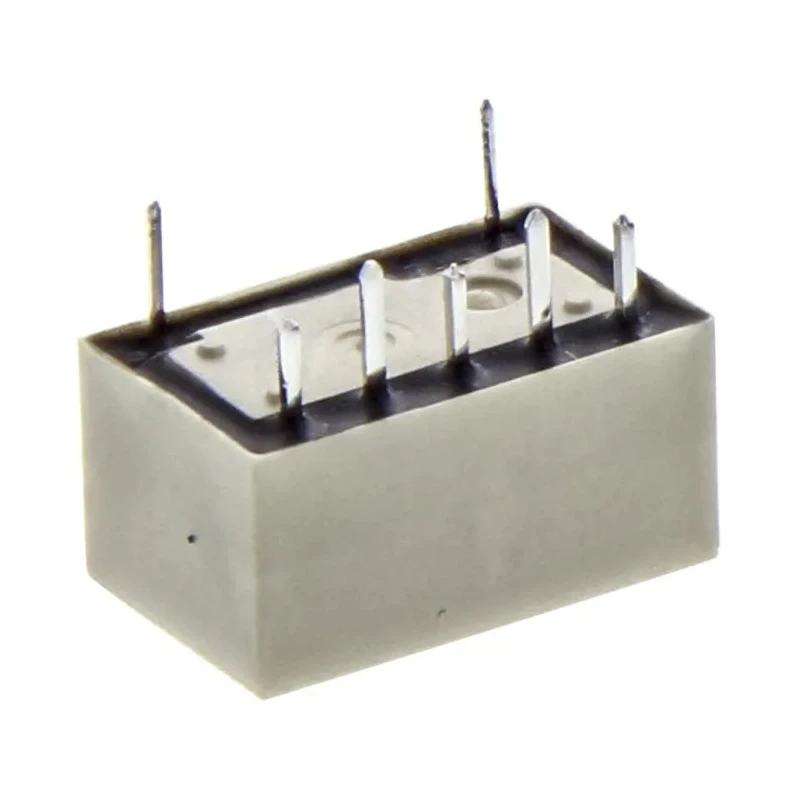

Panasonic Through Hole High Frequency Relay, 12V DC Coil, 3 GHz Max. Coil Frequency, SPDT ARS1412
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 7.2mm |
| Length | 14mm |
| Model | ARS1412 |
| Mount Type | Through Hole |
| Contact Material | Gold Plated |
| Series | ARS |
| Maximum Operating Temperature | 70°C |
| Coil Type | Non-Latching |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6676 Brand: [Panasonic](https://in.rsdelivers.com/brands/panasonic)Manufacturers Part No.: ARS1412 |
| Coil Resistance | 720Ω |
| Coil Power | 200mW |
| Maximum Coil Frequency | 3GHz |
Key Features
- Compact super miniature design with dimensions 14mm length and 7.2mm height.
- Gold plated contacts ensure reliable electrical connectivity.
- Non-latching coil type suitable for fast switching applications.
- Coil resistance of 720 ohms and coil power of 200mW.
- Designed for through hole mounting with solder type terminals.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Specifically designed for high frequency microwave applications up to 3GHz.
- Ideal for broadcasting, video, measurement, mobile phone base stations, and communications applications.
Product Description
Panasonic ARS1412 High Frequency Relay is engineered for superior performance in high frequency applications requiring switching up to 3 GHz. Featuring a 12V DC coil and SPDT contact configuration, this relay is designed for reliability and precision in demanding electronics environments.
The relay's compact super miniature design measures 14mm in length and 7.2mm in height, facilitating integration in densely packed circuits. Gold plated contacts provide excellent conductivity and durability, reducing signal loss and wear.
The coil resistance is 720Ω with a power consumption of 200mW, supporting efficient operation with a non-latching coil type for quick switching. Its voltage standing wave ratio (VSWR) of 1.4 dB at 3 GHz ensures minimal signal reflection, crucial for microwave-frequency circuits.
Designed for through-hole mounting with solder terminals, this relay operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for harsh industrial and commercial environments.
This ARS series relay is well-suited for broadcasting, video processing, signal measurement equipment, mobile phone base stations, and various communications applications demanding high frequency and low signal distortion.
Compact super miniature dimensions enhance PCB space efficiency. Gold plated contacts deliver superior electrical performance. Non-latching coil supports fast switching cycles. Low coil power reduces energy consumption. Excellent VSWR rating guarantees high frequency signal integrity.
Wide operating temperature range ensures reliability in diverse conditions. Through hole and solder terminal design enable robust mechanical mounting. High frequency capability supports microwave and RF applications. Manufactured in Japan, adhering to strict quality standards.
Suitable for broadcast, communications, and measurement applications. Explore more Panasonic high-frequency relay products in EnvMart's comprehensive HF & RF Relays category for quality and performance excellence.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum coil frequency for this relay is 3 GHz, making it suitable for high frequency microwave applications.
This relay has a compact design with dimensions of 14mm in length and 7.2mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 720 ohms, which supports efficient operation.
This relay operates reliably in temperatures ranging from -40°C to 70°C.
It is designed for through-hole mounting with solder type terminals.
The coil power consumption is 200mW, which allows for low energy usage during operation.
The contacts are made of gold plated material, ensuring reliable electrical connectivity.
This relay is ideal for broadcasting, video processing, signal measurement equipment, and mobile phone base stations.
The contact resistance is 100 milliohms, which contributes to its efficient performance.
It uses a non-latching coil type, which is suitable for fast switching applications.
This relay is manufactured in Japan, adhering to strict quality standards.
