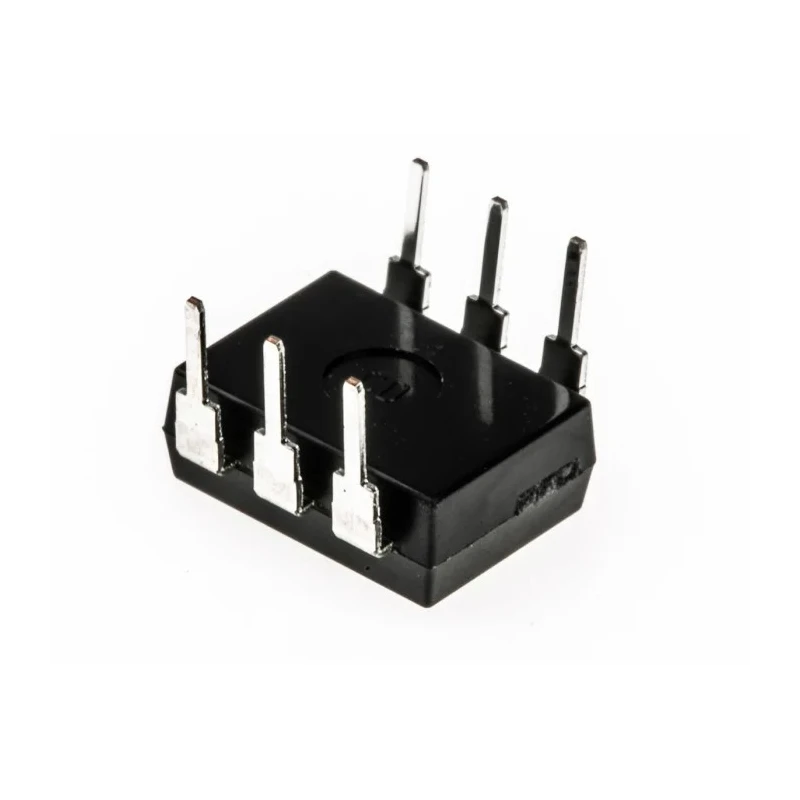

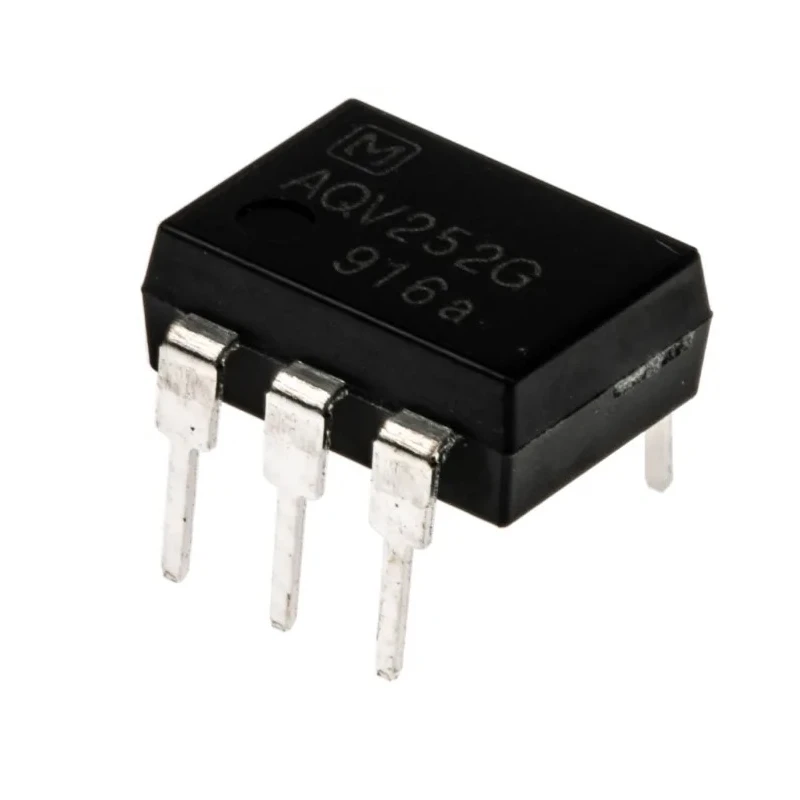

Panasonic HE 1 Form A High Capacity Solid State Relay 2.5A Load, 60V Load, 5V DC Control AQV252G
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.9mm |
| Length | 8.8mm |
| Model | AQV252G |
| Width | 3.9mm |
| Output type | MOSFET |
| Series | HE 1 Form A High Capacity |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | DIP |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | High Capacity |
| Maximum Load Current | 2.5A |
| Standards/Approvals | EN62368-1 (VDE), UL1577 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6534Brand: PanasonicManufacturers Part No.: AQV252GDistrelec Article No.: 13740314 |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.5V dc |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 1μA |
| On State Resistance | 0.035Ω |
Key Features
- This solid state relay features a maximum load current of 2.5A.
- It supports a maximum load voltage of 60V, ensuring robust switching.
- The control voltage ranges from 1.5V to 5V DC for precise operation.
- The relay uses MOSFET output type for efficient load switching.
- Compact DIP package with dimensions 8.8mm x 3.9mm x 3.9mm height.
- Operating temperature range from -40°C to 85°C for reliable performance.
- On-state resistance is a low 0.035Ω for minimal voltage drop.
- Designed for high capacity switching with SPST contact configuration.
Product Description
Panasonic AQV252G is a high capacity solid state relay from the HE 1 Form A series designed for industrial and automation applications. It supports a maximum load current of 2.5 amperes and a maximum load voltage of 60 volts, controlled by a 5V DC input voltage. The relay is housed in a compact DIP package measuring 8.8mm in length, 3.9mm in width, and 3.9mm in height, suitable for PCB mounting.
This device operates efficiently within a temperature range of -40°C to 85°C, making it suitable for various harsh environments. It features a low on-state resistance of 0.035 ohms, which minimizes power loss and heat generation during operation. The MOSFET output provides fast and reliable switching with very low off-state leakage current of 1μA.
The AQV252G has a single pole single throw (SPST) contact configuration, ideal for high capacity switching functions with reinforced insulation for safety. It complies with rigorous standards such as EN62368-1 (VDE) and UL1577, ensuring safety and performance in electrical control systems.
Manufactured in Japan, this solid state relay is a dependable component for industrial, manufacturing, and automation control systems requiring precise and durable electronic switching solutions.
Maximum load current: 2.5A ensures effective handling of moderate power loads. Maximum load voltage of 60V suitable for DC and low AC load applications. Control voltage range from 1.5V to 5V DC allows compatibility with diverse control circuits.
Compact DIP package facilitates easy PCB mounting and integration. Operating temperature range from -40°C to 85°C supports industrial use in various climates. Low on-state resistance reduces heat dissipation and improves energy efficiency.
MOSFET output type for silent, fast, and reliable switching. Reinforced insulation enhances electrical safety and reliability. Compliance with EN62368-1 and UL1577 certification standards. Produced in Japan with high manufacturing quality standards.
This product fits into electronic controls, automation systems, and industrial manufacturing processes requiring solid state relays with high capacity switching and durability. Explore our extensive range of Solid State Relays and related components on EnvMart for all your industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 2.5A, making it suitable for moderate power applications.
The maximum load voltage for this solid state relay is 60V, which is appropriate for both DC and low AC load applications.
The control voltage range for this unit is from 1.5V to 5V DC, allowing compatibility with various control circuits.
It uses a MOSFET output type, which provides efficient load switching and fast operation.
The relay is housed in a compact DIP package with dimensions of 8.8mm in length, 3.9mm in width, and 3.9mm in height.
The operating temperature range is from -40°C to 85°C, making it suitable for various harsh environments.
The on-state resistance is 0.035Ω, which helps to minimize power loss and heat generation during operation.
This solid state relay features a single pole single throw (SPST) contact configuration, ideal for high capacity switching.
It complies with EN62368-1 (VDE) and UL1577 certification standards, ensuring safety and performance in electrical control systems.
The off-state leakage current is 1μA, which indicates low power loss when the relay is not activated.
This model uses PCB terminals, facilitating easy integration into printed circuit boards.
This solid state relay is manufactured in Japan, adhering to high manufacturing quality standards.
