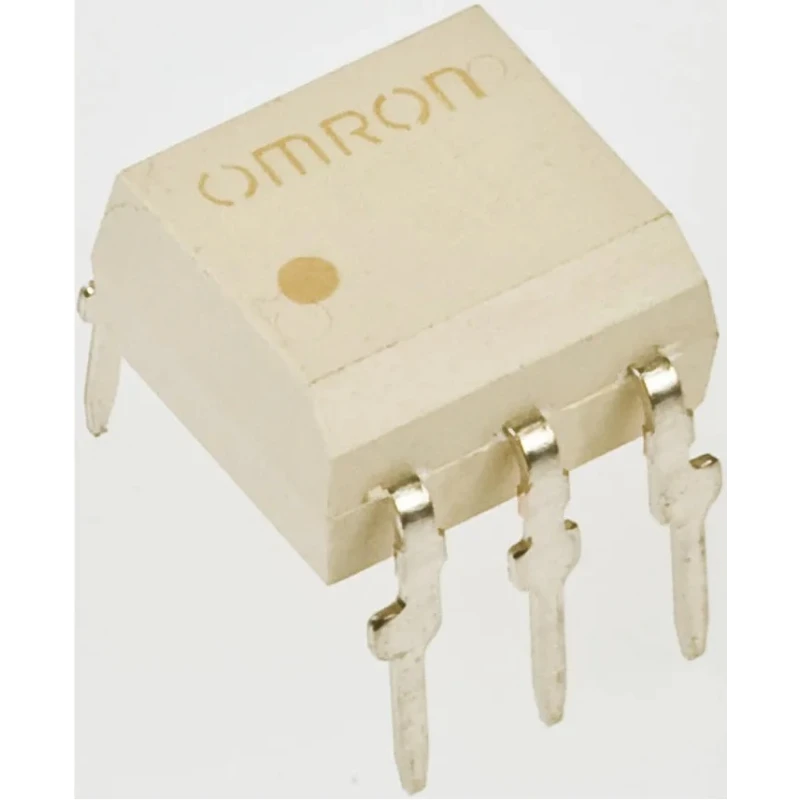

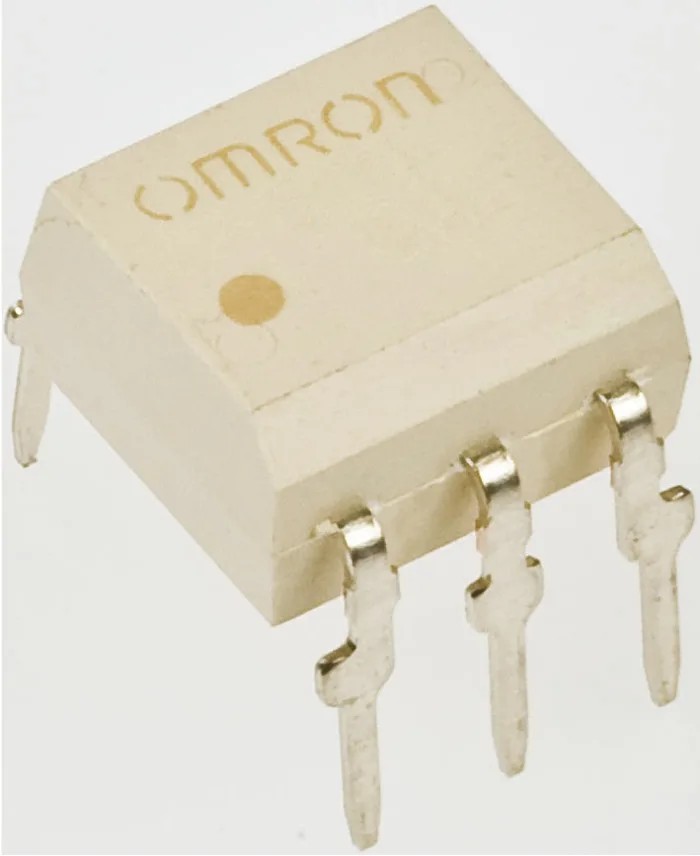

Omron Solid State Relay Through Hole Mount 0.12 A Load 350 V AC Load MOSFET Output G3VM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 3.65mm |
| Length | 7.12mm |
| Model | G3VM |
| Width | 6.4mm |
| Mount Type | Through Hole |
| Output type | MOSFET |
| Series | G3VM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPNO |
| Package Type | DIP-6 |
| Capacitance | 30pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | SPST |
| Maximum Load Current | 0.12A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 350V ac |
| Minimum Load Voltage | 0V ac |
| Minimum Control Voltage | 1V |
| Maximum Control Voltage | 1.3V |
| Off State Leakage Current | 50mA |
| On State Resistance | 35Ω |
Key Features
- MOSFET output ensures reliable switching and low on-state resistance.
- Through hole DIP-6 package with 6 PCB terminals for easy mounting.
- Contact configuration is SPST normally open for general purpose use.
- Operating temperature range from -40°C to 85°C for wide application environments.
- Low off-state leakage current of 50 mA supports efficient operation.
- Capacitance between terminals is 30 pF guaranteeing low signal interference.
- Dielectric strength between input/output is 2500 Vrms ensuring electrical insulation safety.
- Fast turn-on and turn-off times of 1 ms enable high-speed switching.
Product Description
Omron G3VM-351B solid state relay is a MOSFET output relay designed for reliable switching in industrial and automation applications. It supports a maximum load current of 0.12 A and a maximum load voltage of 350 V AC. The relay utilizes a through hole DIP-6 package with 6 PCB terminals which facilitates secure and easy mounting on printed circuit boards.
This relay features a SPST normally open contact configuration that is ideal for general purpose switching tasks, offering silent operation, long operational life, and excellent shock resistance. Its construction ensures a low on-state resistance of 35 Ohm and low off-state leakage current of 50 mA, enhancing energy efficiency and reducing heat generation.
Designed to operate reliably within a temperature range of -40°C to 85°C, the G3VM-351B is suitable for harsh industrial environments. The device exhibits a low capacitance of 30 pF between terminals to minimize signal interference, and a high dielectric strength of 2500 Vrms ensures safety and insulation integrity between input and output circuits.
The relay’s fast turn-on and turn-off times (max 1 ms) allow use in high-speed switching applications such as telecom solutions, industrial automation, and control systems. It complies with RoHS standards confirming its environmentally friendly design.
MOSFET solid state relay with DIP-6 through hole package. Maximum load current of 0.12 A and load voltage 350 V AC. SPST normally open contact configuration for general switching. Operating temperature range from -40°C to 85°C.
Low on-state resistance and off-state leakage current. Capacitance between terminals of 30 pF for low interference. Dielectric strength up to 2500 Vrms for safety. Fast switching times of 1 ms maximum. RoHS compliant for environmental safety.
This Solid State Relay from Omron is extensively used in industrial manufacturing, automation control, electronic switching, telecommunication equipment, and laboratory instrumentation where durable and efficient relay switching is critical. Explore the relays & contactors section at EnvMart for more industrial-grade electrical components suited for professional applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.12 A.
This solid state relay supports a maximum load voltage of 350 V AC.
It features a SPST normally open (SPNO) contact configuration, suitable for general purpose switching tasks.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
This unit utilizes a MOSFET output for reliable switching and low on-state resistance.
It is designed for through hole mounting with a DIP-6 package and 6 PCB terminals for easy installation.
The on-state resistance is 35 Ohm, which contributes to its efficient operation.
The off-state leakage current is 50 mA, supporting efficient operation.
The capacitance between terminals is 30 pF, which helps minimize signal interference.
It has a dielectric strength of 2500 Vrms, ensuring electrical insulation safety between input and output.
Yes, it complies with RoHS standards, confirming its environmentally friendly design.
The relay features fast turn-on and turn-off times of up to 1 ms, suitable for high-speed applications.
