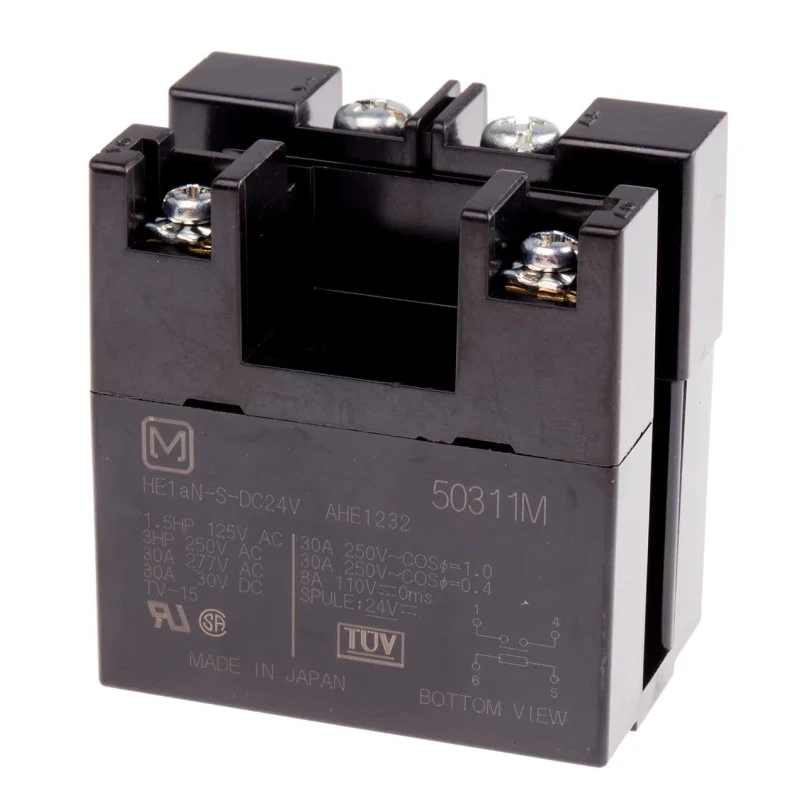

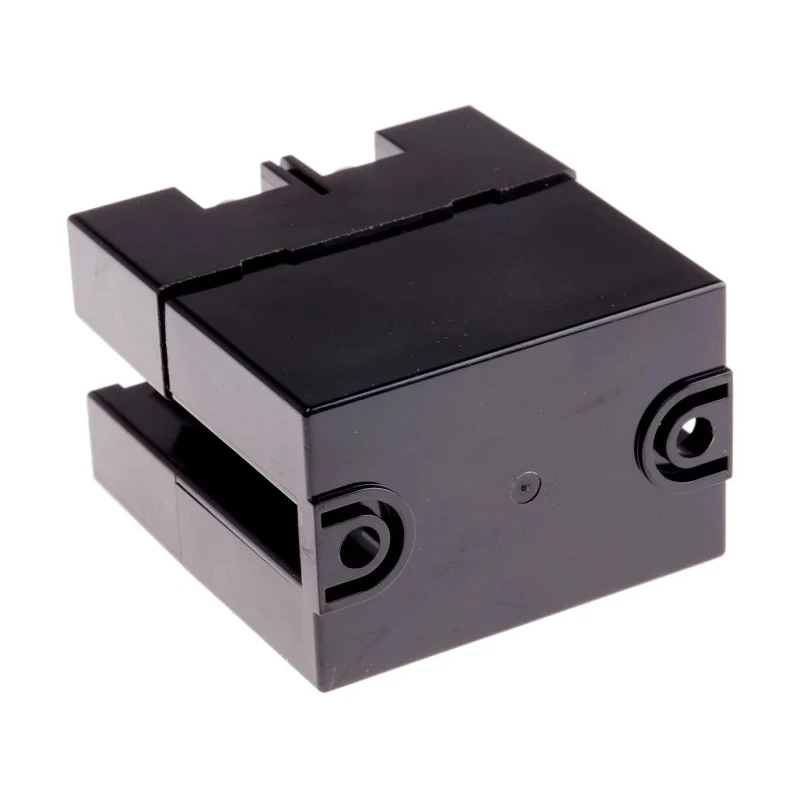

Panasonic Power Relay PCB Mount SPST 24V DC Coil 30A Switching Current HE1AN-S-DC24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 44.5mm |
| Length | 50mm |
| Model | HE1AN-S-DC24V |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -50°C |
| Switching Current | 30A |
| Terminal type | Screw |
| Typical Applications | Machine tools, Moulding equipment, Air conditioners, Heating equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, RoHS, CSA, VDE, TUV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5673Brand: PanasonicManufacturers Part No.: HE1AN-S-DC24V |
| Coil Resistance | 300Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.92W |
Key Features
- The relay features a single-pole single-throw (SPST) contact configuration.
- It operates reliably within a temperature range of -50°C to 55°C.
- Equipped with screw terminal type for secure electrical connections.
- The coil resistance is 300 ohms delivering coil power of 1.92 watts.
- Switching voltages supported include 30V DC and 277V AC.
- Constructed with silver alloy contacts offering low contact resistance of 100 milliohms.
- Meets industry standards including UL, RoHS, CSA, VDE, and TUV certifications.
- Ideal for use in machine tools, molding equipment, air conditioners, and heating equipment.
Product Description
Panasonic HE1AN-S-DC24V is a robust PCB mount power relay designed for industrial, commercial, and home appliance applications requiring reliable switching performance. Featuring a 24V DC coil voltage and a high 30A switching current, this SPST (single-pole single-throw) relay delivers high capacity and long operational life with excellent surge resistance exceeding 10,000 volts.
The relay’s contact material is premium silver alloy, ensuring minimal contact resistance of 100 milliohms and durable performance. Its coil resistance is 300 ohms and requires coil power of just 1.92 watts, promoting energy-efficient operation.
Operating temperature ranges from -50°C to 55°C, making it suitable for challenging industrial environments. The relay supports switching voltages up to 30V DC and 277V AC, enabling versatile use across various electrical circuits.
The mounting type is PCB for easy integration into printed circuit boards, and the screw terminal design ensures secure and reliable electrical connections. Dimensions measure 50 mm length, 16.5 mm width, and 44.5 mm height for compact installation.
High capacity and long life with surge voltage resistance above 10,000V. Single side stable type with excellent resistance to contact welding due to specialized pre-tension and kick-off mechanism. Suitable for machine tools, molding equipment, air conditioners, and heating systems.
Certified to standards: UL, RoHS, CSA, VDE, TUV ensuring reliability and safety. Compact PCB mount design with screw terminals for secure mounting and connection. Silver alloy contacts for low resistance and durability. Operates efficiently at coil power 1.92W with coil resistance 300Ω.
Wide operating temperature from -50°C to 55°C for tough environments. Supports high switching currents (30A) and voltages (30V DC, 277V AC).
This Panasonic PCB power relay is an excellent choice for demanding electrical control systems across industrial automation, manufacturing, HVAC, and electrical equipment sectors. Its reliability and compliance with global standards ensure safety and performance longevity.
Explore more Power Relays and electrical components in the Electronics & Electricals category at EnvMart for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 30A, making it suitable for high-load applications.
The coil voltage for this relay is 24V DC, which is required for its operation.
The relay measures 50 mm in length, 16.5 mm in width, and 44.5 mm in height, allowing for compact installation.
It features a single-pole single-throw (SPST) contact configuration, suitable for various switching applications.
This unit operates reliably within a temperature range of -50°C to 55°C, making it suitable for challenging environments.
It is equipped with screw terminals for secure electrical connections, ensuring reliable operation.
The relay is constructed with silver alloy contacts, which provide low contact resistance of 100 milliohms.
This model supports switching voltages of up to 30V DC and 277V AC, allowing for versatile applications.
It meets several industry standards including UL, RoHS, CSA, VDE, and TUV certifications, ensuring compliance and safety.
The coil resistance is 300 ohms, which is essential for determining the relay's power consumption.
Typical applications include machine tools, molding equipment, air conditioners, and heating equipment, highlighting its versatility.
The relay requires a coil power of 1.92 watts for its operation, promoting energy efficiency.
