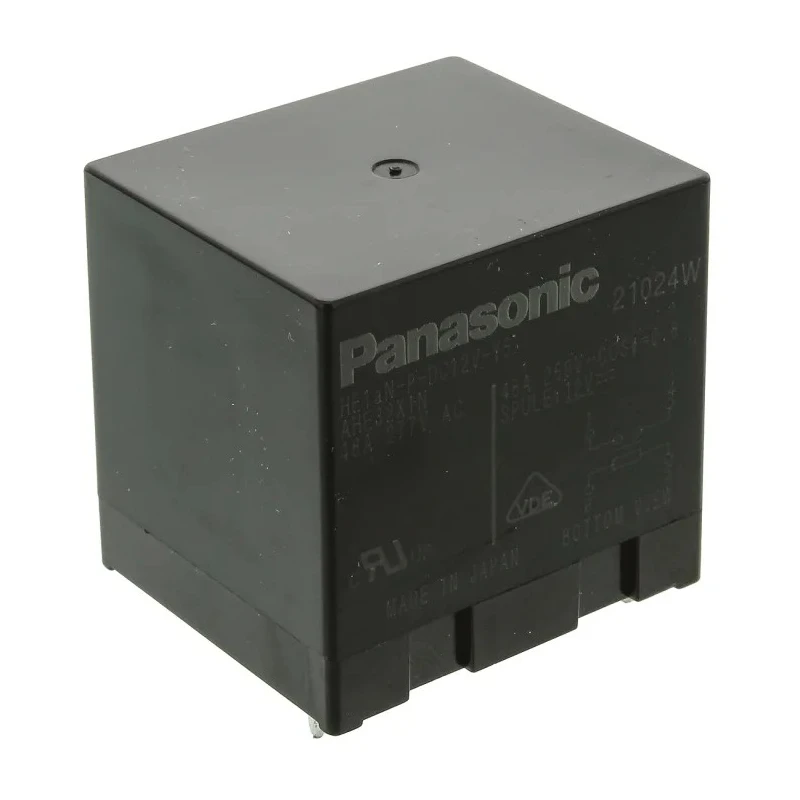

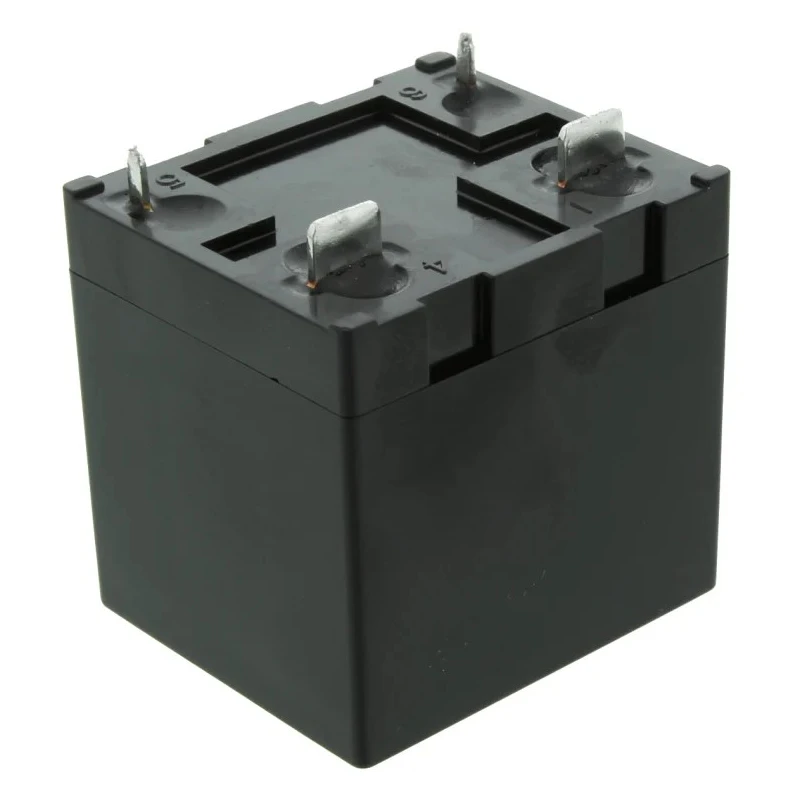

Panasonic PCB Power Relay, 12V DC Coil, 48A Switching Current, SPST, HE Series HE1AN-P-DC12V-Y5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 36.3mm |
| Length | 38mm |
| Model | HE1AN-P-DC12V-Y5 |
| Width | 33mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -50°C |
| Switching Current | 48A |
| Terminal type | Through Hole |
| Typical Applications | Machine tools, Moulding equipment, Air conditioners, Heating equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS, VDE, CSA, TUV, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5651Brand: PanasonicManufacturers Part No.: HE1AN-P-DC12V-Y5 |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 490V ac |
| Coil Power | 1.92W |
| Switching Power | 2.3kW |
Key Features
- High capacity and long life ensuring reliable operation.
- Single side stable type with excellent surge resistance above 10,000V.
- Contact material made of durable silver alloy for minimal resistance.
- Designed for use in machine tools, molding equipment, air conditioners, and heating systems.
- Features through-hole terminal type for secure PCB mounting.
- Operates within temperature range of -50°C to 55°C.
- Switching power up to 2.3 kW with maximum AC voltage of 490V.
Product Description
Panasonic HE1AN-P-DC12V-Y5 PCB Power Relay is designed for high capacity switching tasks in industrial, home appliance, and automation applications. Featuring a 12V DC coil and a robust 48A switching current capacity, this single-pole single-throw (SPST) relay ensures durable performance and excellent reliability.
This relay belongs to the HE series, known for its long service life and enhanced surge resistance greater than 10,000V. Its silver alloy contacts reduce contact resistance and improve conductivity, making it ideal for electrical equipment requiring stable switching.
Mounting on PCBs is facilitated by through-hole terminals, promoting secure connections. Operating within a broad temperature range from -50°C to 55°C, it suits harsh environments and ensures consistent operation.
The relay supports switching powers up to 2.3 kW and can handle switching voltages of 48V DC and 490V AC, suitable for a wide range of electrical loads in industrial machinery, molding equipment, air conditioners, and heating equipment.
The compact size (38mm length, 33mm width, and 36.3mm height) allows efficient PCB layout without compromising performance. High capacity and long life. Single side stable type relay. Excellent surge voltage resistance over 10,000V.
Silver alloy contact material. Through-hole terminal type for PCB mounting. Operating temperature range from -50°C to 55°C. Switching power up to 2.3 kW. Applications in industrial and home electrical equipment.
This Panasonic PCB power relay is RoHS compliant and meets standards of VDE, CSA, TUV, UL, making it reliable for electrical and industrial automation requirements. Explore more Power Relay options and related industrial components on EnvMart.
