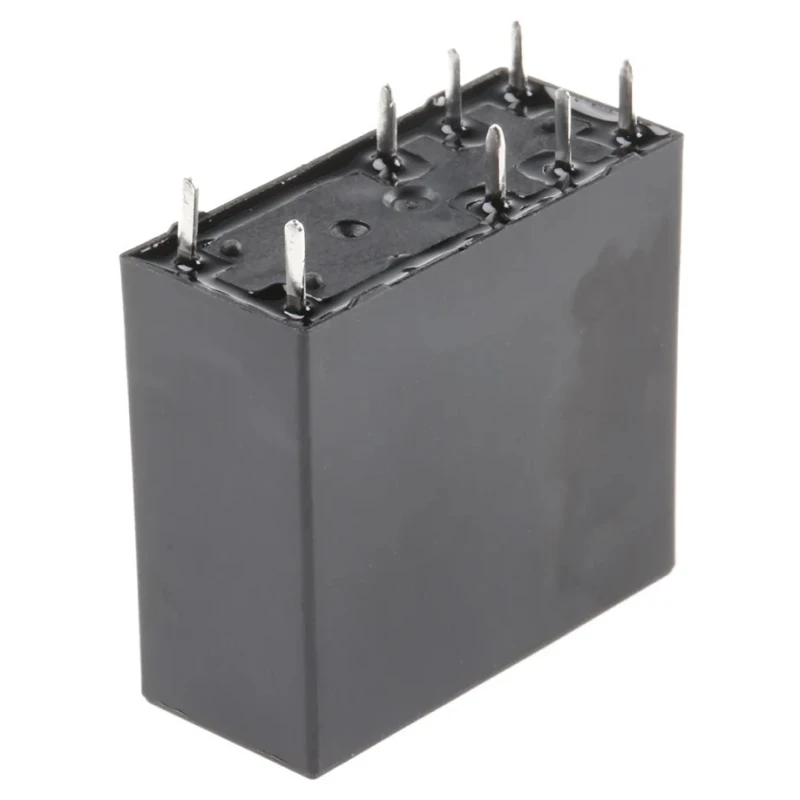

RS PRO RS PRO PCB Power Relay 5V dc Coil 20A Switching Current SPDT 800-4495
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 26.5mm |
| Length | 29mm |
| Model | 800-4495 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Solder |
| Contacts | 1 Form C, SPDT |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 47Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 530mW |
Key Features
- Miniature high power relay suitable for PCB mounting.
- Features 1 Form C, SPDT silver alloy contacts ensuring durability.
- Coil resistance of 47Ω with coil power consumption of 530mW.
- Capable of switching 2.5kVA power with 30V dc and 277V ac voltage ratings.
- Operational temperature range from -40°C to 85°C for diverse environments.
- 5 mm pinning with solder terminal type for secure connection.
- Dielectric strength of 4 kV between coil and contacts for safety compliance.
- Approved by UL, TUV, CQC, and UR standards ensuring quality and performance.
Product Description
RS PRO 800-4495 PCB Power Relay is a high-quality, miniature power relay designed for PCB mounting with a coil voltage of 5V dc and a switching current of 20A. It features a single-pole double-throw (SPDT) contact configuration with silver alloy contacts, providing reliable and durable switching performance in various industrial, electrical, and automation applications.

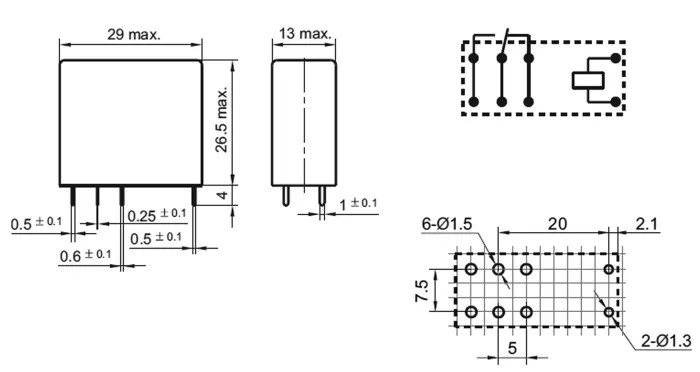

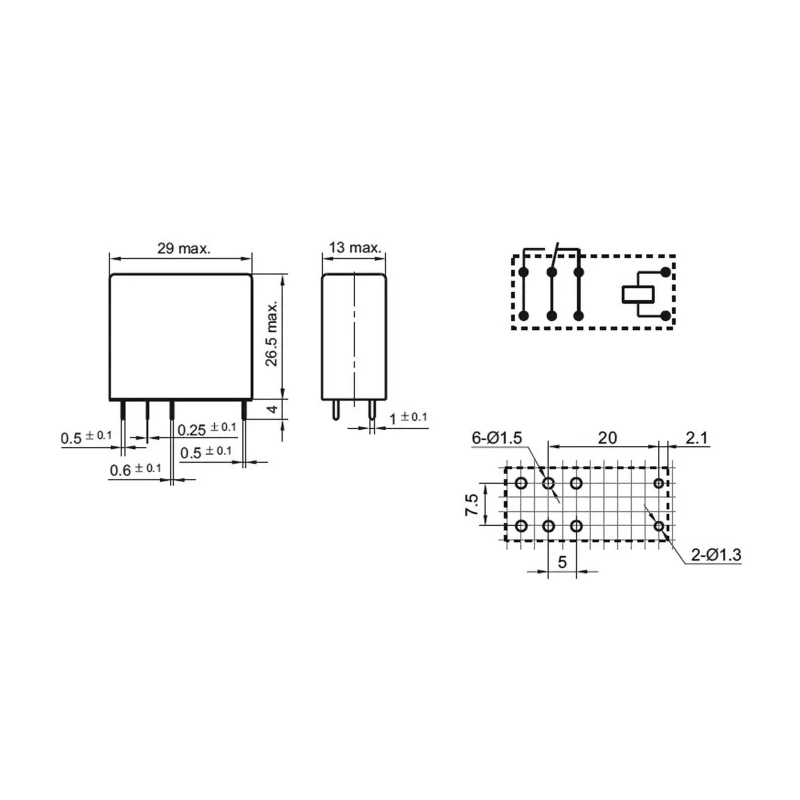

This relay supports switching power up to 2.5kVA with a maximum AC voltage of 277V and DC voltage of 30V, making it suitable for controlling diverse loads. Its coil resistance of 47Ω and power consumption of 530mW offer efficient operation. The device has a compact form factor, measuring 29mm in length, 13mm in width, and 26.5mm in height, with a 5 mm pinning solder terminal design for easy PCB integration.
Operating reliably over a temperature range of -40°C to 85°C, this RS PRO relay ensures stable performance in harsh environments. It incorporates a dielectric strength of 4 kV between the coil and contacts to provide safety against electrical surges. The relay holds multiple certifications including UL (File no. E134517), TUV (File no. R9659294), CQC (File no. CQC02001001955), and UR confirming its compliance with international standards.
This power relay is ideal for use in industrial automation, electrical equipment, control panels, and other manufacturing applications requiring robust relay switching with consistent operation and safety. It enables efficient insertion into machinery and equipment to improve production efficiencies and system reliability.
Miniature high power relay for PCB mounting. 1 Form C SPDT silver alloy contacts ensure durability. Coil voltage: 5V dc; coil resistance: 47Ω; coil power: 530mW. Rated switching current: 20A; switching power: 2.5kVA. Maximum switching voltages: 30V dc and 277V ac.
Operating temperature range: -40°C to 85°C. Compact dimensions: 29mm x 13mm x 26.5mm (LxWxH). 5 mm pinning with solder terminal type. 4 kV dielectric strength between coil and contacts. Certified to UL, TUV, CQC, and UR standards.
Manufactured in China. Explore the full range of Power Relays at EnvMart for industrial, electrical, and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a rated switching current of 20A.
The coil voltage for this model is 5V dc.
It can switch a maximum DC voltage of 30V and an AC voltage of 277V.
The relay measures 29mm in length, 13mm in width, and 26.5mm in height.
It features a single-pole double-throw (SPDT) contact configuration with 1 Form C contacts.
The coil resistance is 47Ω, and the coil power consumption is 530mW.
It operates reliably within a temperature range of -40°C to 85°C.
The dielectric strength is 4 kV between the coil and contacts.
It is certified by UL, TUV, CQC, and UR standards.
This model is designed for PCB mounting with a solder terminal type.
The contacts are made of silver alloy, ensuring durability.
This relay is manufactured in China.
