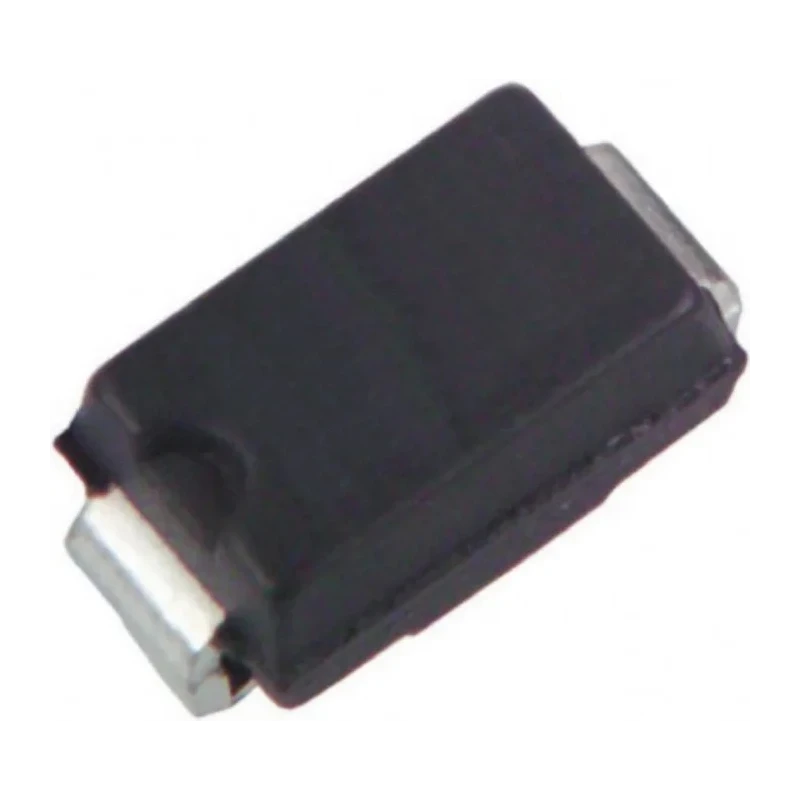

Taiwan Semiconductor Zener Diode 200 V 800 mW Surface Mount 2-Pin Sub SMA BZD27C200P R3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.43mm |
| Length | 3.8mm |
| Model | BZD27C200P R3 |
| Mount Type | Surface |
| Series | BZD27C |
| Maximum Operating Temperature | 175°C |
| Package Type | Sub SMA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 800mW |
| Diode Configuration | Single |
| Test Current It | 4mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 200V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 750Ω |
Key Features
- This Zener diode features a single diode configuration for voltage regulation.
- It has a 2-pin Sub SMA surface mount package ensuring compact PCB designs.
- The device offers a Zener voltage tolerance of ±6% and maximum power dissipation of 800 mW.
- Operates reliably within temperature range of -65°C to 175°C.
- Maximum reverse leakage current is rated at 1 μA, suitable for low-leakage applications.
- Test current is specified at 4 mA with maximum Zener impedance of 750 Ω.
- The compact dimensions of 3.8 mm length and 1.43 mm height aid in space-saving installations.
- The series is BZD27C and conforms to standard semiconductor product requirements.
Product Description
Taiwan Semiconductor BZD27C200P R3 Zener Diode is a surface mount discrete semiconductor designed to provide stable voltage regulation at a nominal Zener voltage of 200 V with an 800 mW power dissipation rating. It features a single diode configuration packaged in a compact 2-pin Sub SMA style suitable for automated PCB assembly processes.
This component is engineered for use in various electronic circuits requiring precise voltage reference and protection applications. Its maximum reverse leakage current of 1 μA and a Zener impedance of 750 Ω at the test current of 4 mA ensure efficient voltage stability and minimal power loss.
Operating over a wide temperature range from -65°C to 175°C, this Zener diode delivers reliable performance in industrial, automotive, and consumer electronic environments where robust voltage regulation is critical.
Single diode configuration for voltage regulation. Sub SMA 2-pin surface mount package for compact PCB footprint. Nominal 200 V Zener voltage with ±6% tolerance. Maximum power dissipation of 800 mW. Test current of 4 mA and maximum Zener impedance of 750 Ω.
Maximum reverse leakage current of 1 μA. Operates from -65°C to 175°C supporting industrial temperature ranges. Dimensional footprint of 3.8 mm length and 1.43 mm height.
This product is ideal for use in electronic voltage regulation circuits, power supplies, and protection devices in industrial, manufacturing, automotive, and electronics manufacturing sectors. The reliable performance and surface mount package make it well suited for high-volume PCB designs where efficient space utilization and electrical stability are required.
Explore additional semiconductor and Zener diode components in the electronics category at EnvMart to support your design and production needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 200 V.
The maximum power dissipation for this model is 800 mW.
It operates reliably within a temperature range of -65°C to 175°C.
The maximum reverse leakage current is rated at 1 μA.
The test current is specified at 4 mA.
The maximum Zener impedance at the test current of 4 mA is 750 Ω.
This model has a length of 3.8 mm and a height of 1.43 mm.
It is packaged in a 2-pin Sub SMA surface mount configuration.
This model features a single diode configuration, meaning it has one element per chip.
It is suitable for electronic voltage regulation circuits, power supplies, and protection devices in various sectors including industrial and automotive.
This diode belongs to the BZD27C series.
The country of origin for this Zener diode is India.
