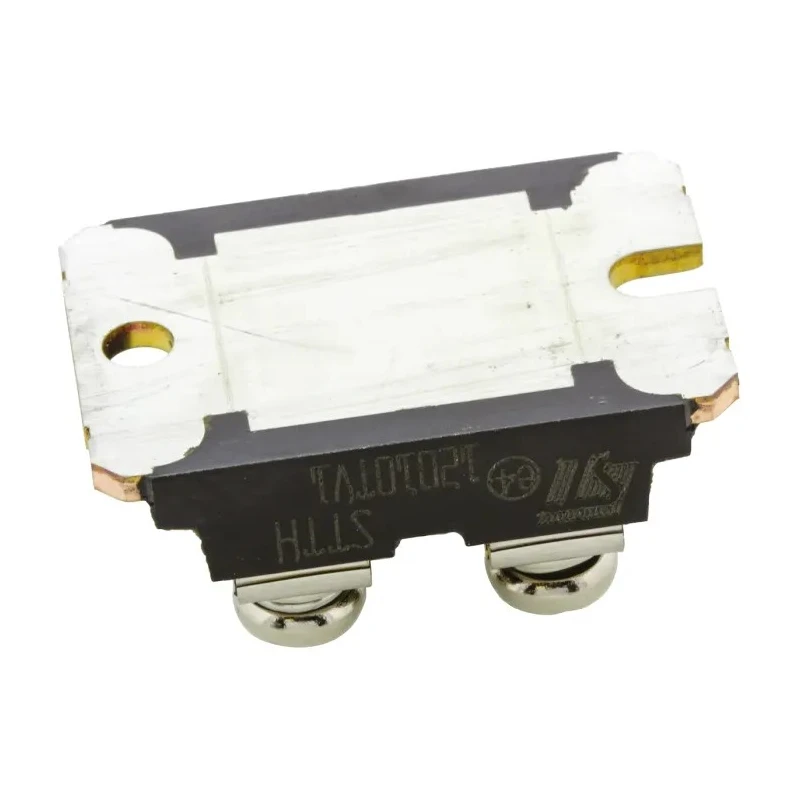

STMicroelectronics 1 kV 60 A Switching Diode 4-Pin ISOTOP Package STTH12010TV1

STMicroelectronics STTH12010TV1 is a high-performance switching diode designed for industrial power electronics and discrete semiconductor applications. This diode features a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage rating of 1 kilovolt, making it suitable for robust switching and rectifier circuits.

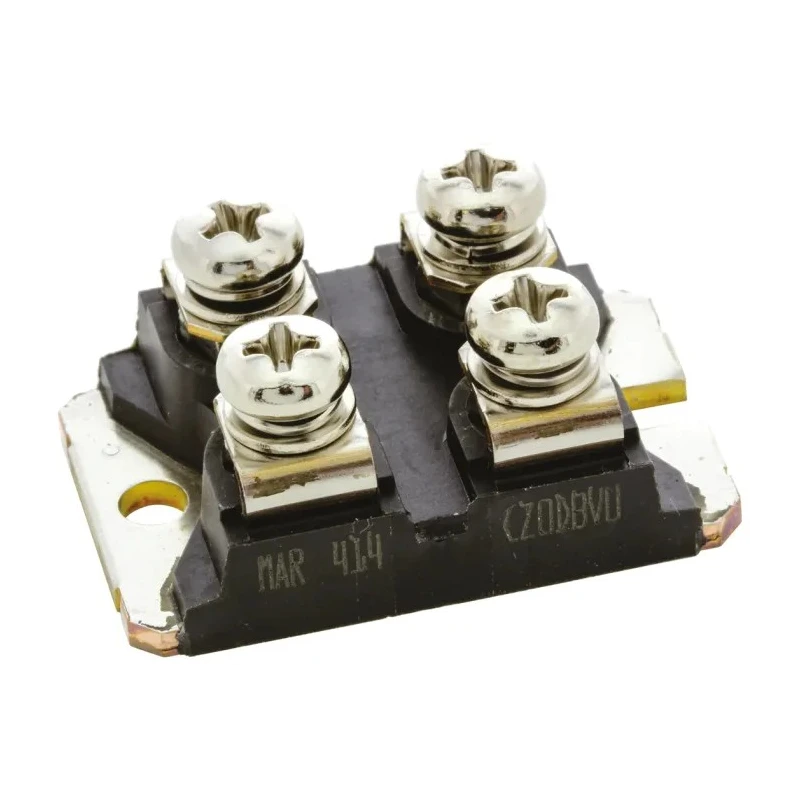

The diode comes in a 4-pin ISOTOP package with panel mount capability and an isolated configuration that improves thermal and electrical isolation. Its compact dimensions allow for integration in space-constrained designs, measuring 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height.

Operating across a wide temperature range from -65°C to 150°C, the STTH12010TV1 ensures reliable performance in demanding environments. It exhibits a low maximum forward voltage drop of 2 volts to optimize efficiency and a fast peak reverse recovery time of 115 nanoseconds to handle rapid switching demands effectively.

Additional features include a peak non-repetitive forward surge current rating of 400 A for transient load tolerance, and an impressively low peak reverse current of 20 microamperes to minimize leakage current, enhancing overall circuit reliability. The product complies with RoHS standards, supporting environmentally conscious applications.

This diode is ideal for use in industrial automation, power management modules, and electrical switching assemblies that require dependable power rectification and switching performance.

Panel mount type for installation flexibility. Isolated diode configuration enhances electrical performance. High continuous current and voltage ratings enable heavy-duty operation. Compact ISOTOP package fits space-limited assemblies.

Wide operating temperature range supports harsh environments. Fast recovery time improves switching speed and efficiency. RoHS compliant ensuring environmental safety. Low leakage current reduces power loss. Explore more semiconductor components and Diodes at EnvMart for your industrial and electronic design needs.
