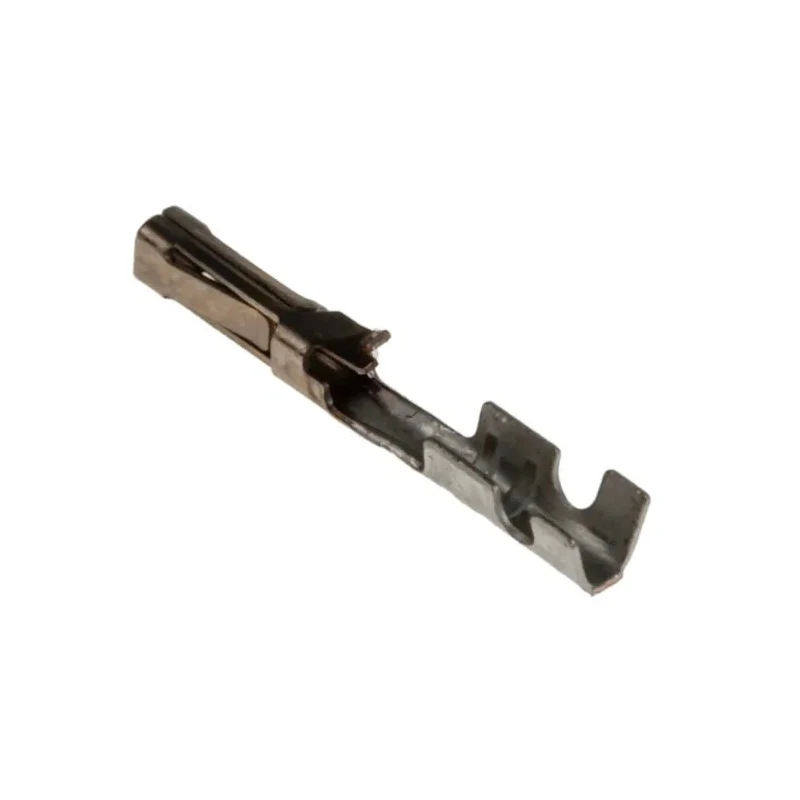

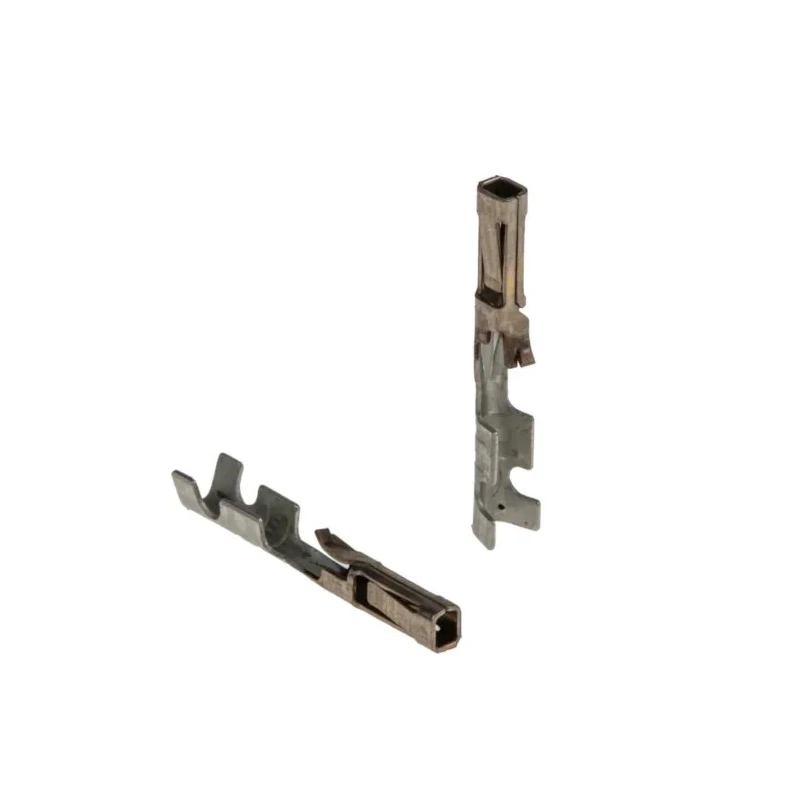

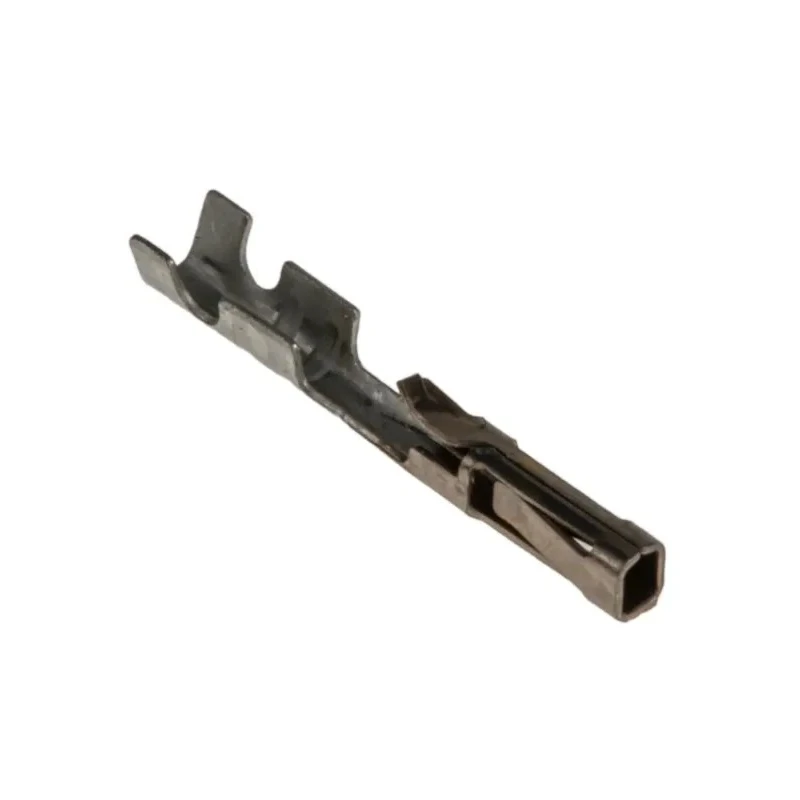

Molex 70058 Series Female Crimp Terminal 3A Current, 24 to 22 AWG Wire Size 16-02-0103
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed from phosphor bronze for excellent electrical conductivity and impact resistance.
- Gold-plated contacts provide corrosion resistance and enhance durability.
- Suitable for use with SL connector housings in control systems and electronics applications.
- Compact design supports a wide operating temperature range from -40°C to 120°C.
- Low contact resistance of 15 milliohms ensures reliable signal transmission.
- Crimp termination allows secure and durable cable connections using compatible Molex crimp tools.
- Halogen low for reduced environmental impact and safer usage in medical and automotive industries.
- Manufactured in the United States to high-quality standards.
Product Description
Molex 16-02-0103 70058 Series Female Crimp Terminal is designed for reliable termination of signal cables with wire sizes from 24 AWG minimum to 22 AWG maximum and supporting up to 3 amps current. This crimp terminal ensures robust electrical connectivity with phosphor bronze material providing excellent conductivity and mechanical strength.
The contact features a gold plating that enhances corrosion resistance and prolongs service life under harsh environmental conditions. It supports a wide operating temperature range from -40°C to 120°C making it suitable for various industrial, automotive, and medical electronics applications.
Applicable with SL connector housings, the terminal is ideal for control systems, automotive electronics, medical and pharmaceutical industries, and other commercial electronic devices. The crimp termination is performed easily using Molex's hand crimping tools, which guarantee full crimping via a ratchet mechanism for secure connections.
Additionally, the low contact resistance value of 15 milliohms promotes efficient signal transmission and reduces power loss. This product is halogen low, diminishes environmental impact and meets safety requirements.
Constructed from phosphor bronze for electrical conductivity and impact resistance. Gold plating ensures corrosion resistance and durability. Supports wire sizes from 24 AWG to 22 AWG. Current rating of 3 amps for reliable electrical transmission.
Operating temperature range from -40°C to 120°C for harsh environments. Compatible with SL connector housing systems. Halogen low for reduced environmental impact. Manufactured in the United States ensuring quality standards.
This crimp terminal is an essential component for creating secure and dependable wire connections in industrial automation, automotive systems, medical devices, and communication equipment. Explore a broad range of Molex connectors and Crimp Terminals for comprehensive connectivity solutions with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 3 amps.
This crimp terminal is designed for wire sizes ranging from 24 AWG minimum to 22 AWG maximum.
It is constructed from phosphor bronze, which provides excellent electrical conductivity and impact resistance, and features gold-plated contacts for corrosion resistance.
The operating temperature range for this terminal is from -40°C to 120°C.
The crimp termination allows for secure and durable cable connections using compatible Molex crimp tools, which ensure full crimping via a ratchet mechanism.
Yes, this terminal is suitable for use in medical and pharmaceutical industries due to its halogen low feature, which reduces environmental impact.
The maximum contact resistance of this crimp terminal is 15 milliohms.
This terminal is compatible with SL connector housings.
This crimp terminal is manufactured in the United States to high-quality standards.
It is intended for use in control systems, automotive electronics, and various commercial electronic devices.
The gold plating on the contacts enhances corrosion resistance and prolongs the service life of the terminal under harsh environmental conditions.
The specific dimensions and weight of this crimp terminal are not provided in the available data.
