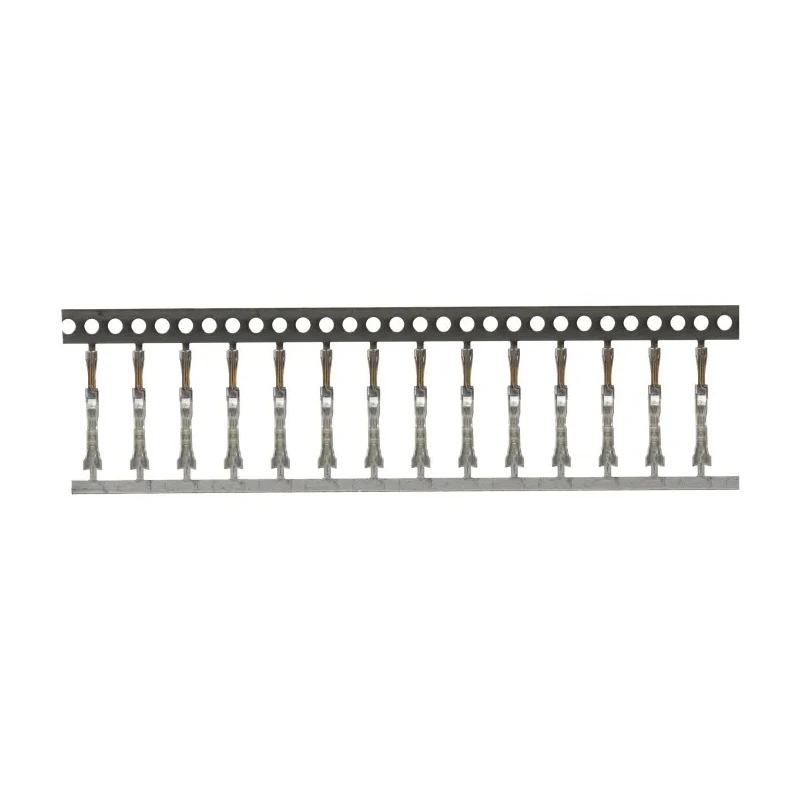

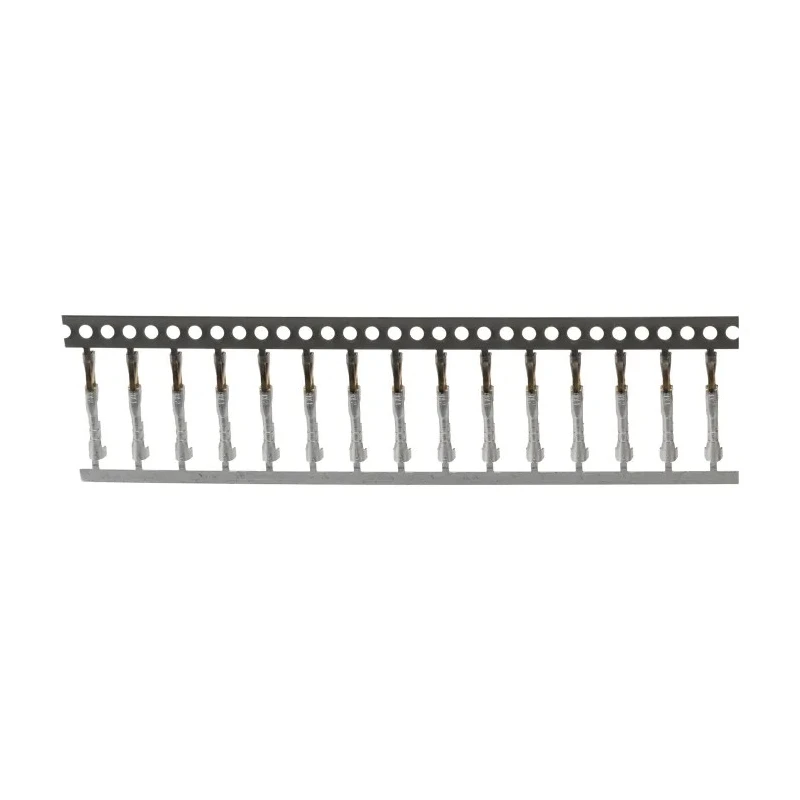

Molex 70058 Series Female Crimp Terminal 3A Current Gold Plated Phosphor Bronze Contact 16-02-0082
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
| Molex 70058 Series Female Crimp Terminal, 24 AWG Min Crimp, 30 AWG MaxBrand | Molex |
Key Features
- Gold plated contact ensures corrosion resistance and durability.
- Phosphor bronze contact material provides excellent electrical conductivity.
- Compatible with SL connector housings for secure wire-to-board connections.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Low maximum contact resistance of 15 milliohms reduces heat generation.
- Suitable for a wide range of industrial applications including HVAC and instrumentation.
- Crimp termination type ensures a robust and reliable electrical connection.
- Compact design accommodates wire insulation diameters up to 1.52mm.
Product Description
Molex 16-02-0082 70058 Series Female Crimp Terminal is engineered to provide secure, corrosion-resistant wire-to-board connections using gold plated phosphor bronze contacts. It is designed for wires ranging from 30 AWG minimum to 24 AWG maximum, and supports currents up to 3 Amps.
These female crimp terminals are crimp termination type and compatible with SL series connector housings, ensuring reliable electrical and mechanical performance. The contacts feature hard-wearing gold plating that resists corrosion for long-term durability in various industrial environments.
The terminal operates reliably within a temperature range of -40°C to +105°C, making it suit a wide spectrum of demanding applications such as HVAC systems, measuring instruments, IT infrastructure, and lighting control systems.
The low maximum contact resistance of 15mΩ helps minimize heat generation, enhancing performance and safety. The terminal's compact design accommodates wires with insulation diameters up to 1.52mm, facilitating easy assembly and integration.
Gold plated contact ensures corrosion resistance and long service life. Phosphor bronze material offers excellent conductivity and durability. Compatible with SL connector housings for reliable electrical connections. Wide temperature operating range from -40°C to 105°C.
Low contact resistance enhances electrical efficiency. Supports wire sizes from 30 AWG to 24 AWG for versatile use. Designed for crimp termination ensuring robust wire fixing. Suitable for industrial applications including HVAC and electronics.
Pack of 100 terminals for multiple assembly needs.
This female crimp terminal is ideal for industrial, commercial, and electronic manufacturing uses where secure and lasting wire connections are essential. Choose Molex for trusted quality on your PCB connector assemblies and wiring harness setups.
Explore more on EnvMart for a comprehensive range of electrical connectors and Crimp Terminals from Molex and other top suppliers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal supports a maximum current of 3 Amps.
It is compatible with wire sizes ranging from 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²).
The terminal operates reliably within a temperature range of -40°C to +105°C.
The contact material is phosphor bronze, which provides excellent electrical conductivity.
It uses a crimp termination type, ensuring a robust and reliable electrical connection.
The maximum contact resistance is 15 milliohms, which helps minimize heat generation.
This terminal is compatible with SL connector housings, ensuring secure wire-to-board connections.
The compact design accommodates wire insulation diameters up to 1.52 mm.
It is suitable for a wide range of industrial applications, including HVAC systems and instrumentation.
The terminal is manufactured in India.
A pack contains 100 terminals, suitable for multiple assembly needs.
The gold plating ensures corrosion resistance and enhances the durability of the contacts.
