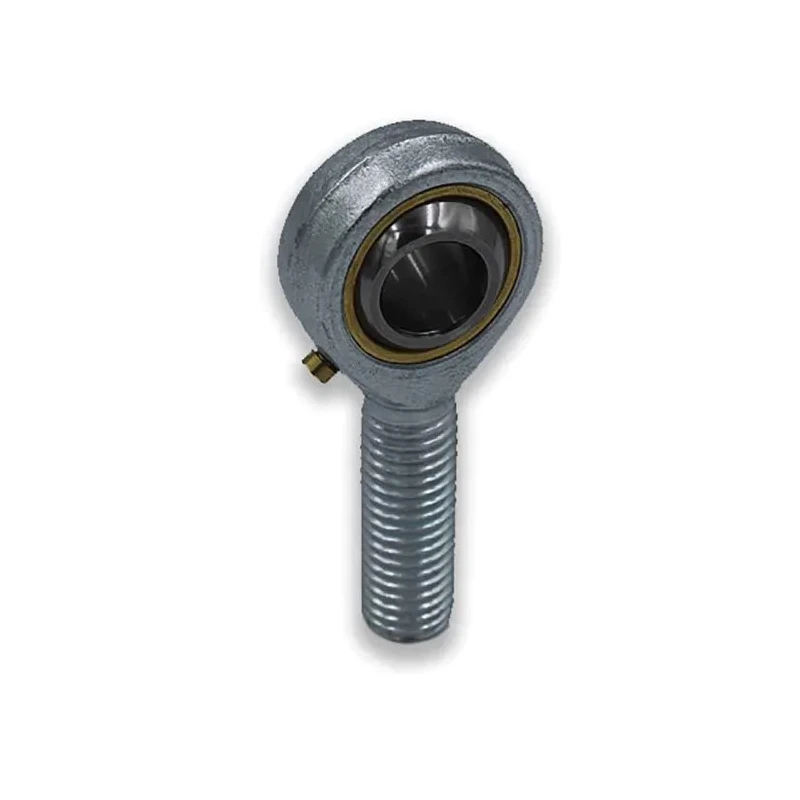

LDK Male Carbon Steel Rod End Metric M14, 14mm Bore, Left Hand Thread POS 14L
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | POS 14L |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 77mm |
| Outside diameter | 34mm |
| Connection Size | M14 Male |
| Bore Diameter | 14mm |
| Thread Standard | Metric |
| Static Load Rating | 22.1kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 13kN |
| Connection Gender | Male |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- Constructed from high-quality carbon steel for strength and longevity.
- Features a 14mm bore diameter for versatile use with metric systems.
- Left hand thread design suits specific assembly requirements.
- Ball component made of heat-treated AISI 52100 bearing steel with hardness rating HRC58-64 for wear resistance.
- Clear zinc plated body enhances corrosion resistance and surface finish.
- Brass race and sliding contact surfaces of steel/brass ensure smooth movement.
- Dynamic load rating of 13 kN supports heavy-duty mechanical loads.
- Static load rating of 22.1 kN provides robust performance under static conditions.
Product Description
LDK POS 14L male carbon steel rod end with metric M14 connection size and 14mm bore offers reliable performance in mechanical, hydraulic, and fluid power assemblies. The left hand thread configuration is designed for specific industrial applications requiring secure attachment.
This rod end features a ball constructed from AISI 52100 bearing steel that is precision ground, polished, and heat-treated to hardness HRC58-64, ensuring high wear resistance and long operational life. The body is made of robust carbon steel with clear zinc plating for corrosion protection and enhanced durability in challenging environments.
The brass race and sliding contact surfaces composed of steel and brass allow smooth movement and reduced friction, critical for rotary bearing functions in industrial machinery.
Technical specifications include a dynamic load rating of 13 kN and a static load rating of 22.1 kN, allowing the rod end to withstand significant mechanical stresses during operation. Its overall width is 77mm with an outside diameter of 34mm to fit standard mounts and housings.
This product is ideal for mechanical and fluid power applications in various industries including manufacturing, heavy machinery, automotive, and construction. It supports precise mechanical motion and load transfer where durability and exact fit are required.
High strength carbon steel construction for extended service life. Precision ball bearing component for low friction movement. Left hand thread metric M14 size connection for specific assembly needs. Corrosion-resistant zinc-plated finish on the body.
Brass race material and steel/brass sliding surfaces for optimal bearing performance. Dynamic load rating of 13 kN accommodates high load conditions. Static load rating of 22.1 kN ensures reliability under static loads. Dimensions: Bore diameter 14mm, overall width 77mm, outside diameter 34mm.
Explore EnvMart for a wide range of LDK Rod Ends and other precision rotary bearing solutions to meet your industrial equipment and machinery requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this rod end is 14mm.
The dynamic load rating of this model is 13 kN, allowing it to support significant mechanical loads during operation.
It is constructed from carbon steel with a clear zinc plated body, and the ball component is made from heat-treated AISI 52100 bearing steel.
The static load rating for this rod end is 22.1 kN, ensuring reliability under static conditions.
The overall width is 77mm and the outside diameter is 34mm.
This model features a left hand thread design, suitable for specific assembly requirements.
It is ideal for mechanical and fluid power applications in industries such as manufacturing, heavy machinery, automotive, and construction.
The brass race, combined with steel/brass sliding contact surfaces, ensures smooth movement and reduced friction, which is critical for rotary bearing functions.
The connection size of this rod end is M14 male, designed for compatibility with metric systems.
This rod end is manufactured in China.
The ball component has a hardness rating of HRC58-64, which provides high wear resistance, enhancing the operational life of the rod end.
The sliding contact surfaces are made of steel and brass, which help in achieving optimal bearing performance.
