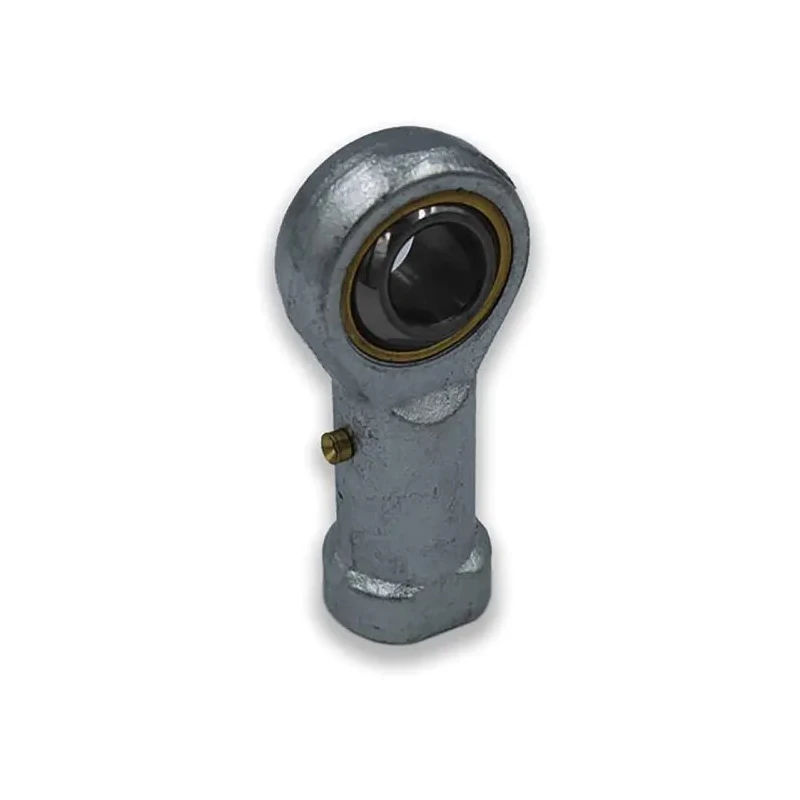

LDK M16 Female Carbon Steel Rod End, 16mm Bore, Left Hand Thread PHS 16L

Free Delivery in India | Lowest Global Shipping Charges

LDK M16 Female Carbon Steel Rod End, 16mm Bore, Left Hand Thread PHS 16L



Category Rod End Brand LDK Condition New

Specifications

Country of Origin	China
Brand	LDK
Material	Carbon Steel
Model	PHS 16L
Body	Carbon steel,clear Zinc plated
BALL	AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Overall Width	83mm
Outside diameter	38mm
Connection Size	M16 Female
Bore Diameter	16mm
Thread Standard	Metric
Static Load Rating	34.5kN
Thread Direction	Left Hand
Dynamic Load Rating	16kN
Connection Gender	Female
Race	Brass
Sliding contact surfaces	Steel/Brass

Key Features

Connection size is M16 female with a left hand thread direction.
Made of carbon steel with clear zinc plating for corrosion resistance.
Ball is precision ground AISI 52100 bearing steel, heat treated and polished.
Dynamic load rating is 16kN, suitable for demanding mechanical applications.
Static load rating is 34.5kN, ensuring stability under heavy loads.
Overall width measures 83mm with an outside diameter of 38mm.
Sliding contact surfaces are composed of steel and brass for reliable movement.
Ball race is made of brass, contributing to smooth operation.

Product Description

The LDK PHS 16L rod end is a high-quality mechanical component designed for use in industrial and fluid power applications. Featuring an M16 female connection size and a 16mm bore diameter, this rod end includes a left hand thread that suits specialized mounting requirements. Constructed primarily of carbon steel, the body benefits from clear zinc plating providing enhanced corrosion resistance and durability. The precision ground ball is made from heat-treated AISI 52100 bearing steel with a hardness rating from HRC58 to 64, guaranteeing superior strength and wear resistance.

Dynamic and static load ratings of 16kN and 34.5kN respectively provide reliable performance in demanding environments. The overall width of the rod end is 83mm with a 38mm outside diameter, making it suitable for assemblies requiring robust connections. Brass is used in the race component to facilitate smooth ball motion, while the sliding contact surfaces combine steel and brass to minimize friction and wear over time.

This Rod End does not conform to any specific industrial standards but is engineered to meet rigorous industrial performance expectations. It is ideal for manufacturing, mechanical machinery, rotary bearing units, and fluid power systems where precise alignment and load transfer are critical. Manufactured in China, the product emphasizes functional reliability in various industrial contexts.

Connection size M16 female with left hand thread. Carbon steel body with clear zinc plating for corrosion resistance. Ball made from AISI 52100 bearing steel, heat treated and polished. Dynamic load rating of 16kN suitable for harsh conditions.

Static load rating of 34.5kN ensures load stability. Dimensions: 38mm outside diameter and 83mm overall width. Ball race constructed of brass for smooth operation. Sliding surfaces of steel and brass reduce wear and friction.
