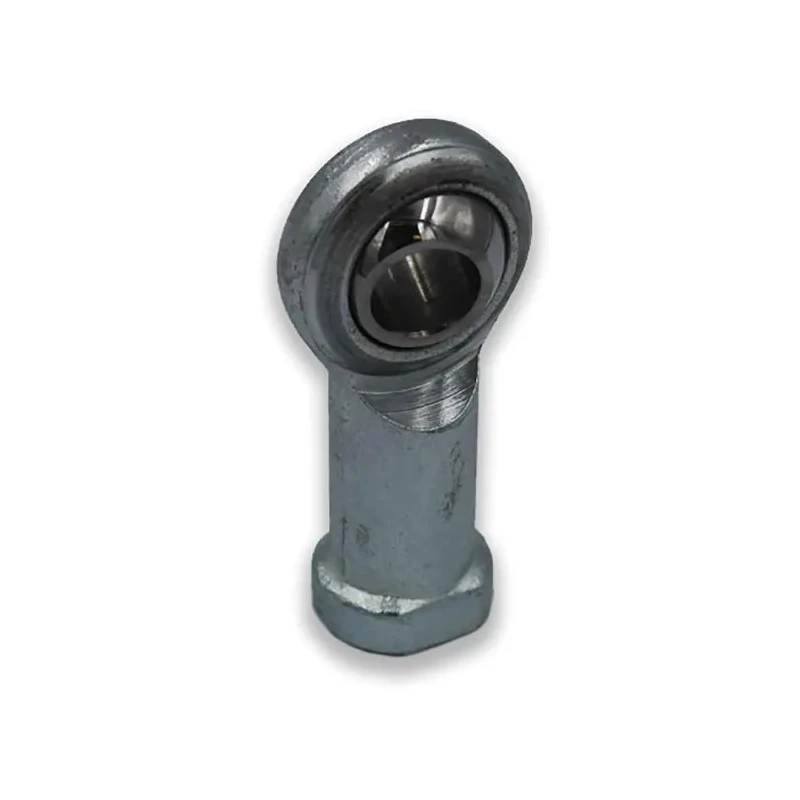

LDK M10 Female Carbon Steel Rod End, 10mm Bore, Left Hand Thread PHS 10ECL

LDK PHS 10ECL M10 Female Carbon Steel Rod End Bearing with a 10mm bore diameter and left hand thread is engineered for high-performance rotary applications. This rod end bearing is made from durable carbon steel, zinc plated for corrosion resistance, and features a precision ground AISI 52100 bearing steel ball, heat treated to a hardness of HRC58-64 for excellent wear resistance.

The PTFE composite race and steel/PTFE composite sliding contact surfaces provide smooth, low-friction operation suitable for demanding mechanical and fluid power systems. The rod end's metric M10 female connection and left hand thread direction enable flexible integration in various industrial machinery assemblies.

This rod end bearing offers a dynamic load rating of 10.4 kN and a static load rating of 17.3 kN, ensuring reliable load handling and long service life in rotary bearing units. Its overall width is 56 mm, with an outside diameter of 26 mm, tailored for precision fitment.

The product is manufactured in China and meets the mechanical demands of industries such as manufacturing, automotive assembly, construction, and machinery maintenance. Suitable for use in hydraulic and pneumatic systems, this Rod End Bearing provides dependable performance in rotary bearing and housing unit applications.

The rod end features a 10mm bore diameter suitable for M10 female connections. Constructed from carbon steel with clear zinc plating for corrosion resistance. The ball is made from AISI 52100 bearing steel, heat treated to HRC58-64 hardness, precision ground and polished.

Includes a PTFE composite race and steel/PTFE composite sliding contact surfaces for smooth operation. Left hand thread direction enhances assembly versatility. Dynamic load rating of 10.4 kN and static load rating of 17.3 kN ensure robust performance.

Overall width measures 56 mm with an outside diameter of 26 mm. Designed as a female rod end suitable for metric thread standard applications. Explore more precision rotary bearings and housing units in the EnvMart catalog to find the optimal components for your industrial applications.
